Cn1 control cable assembly (2090-daio-d50xx) – Rockwell Automation 2092-DAx Ultra1500 User Manual User Manual
Page 158
Publication 2092-UM001D-EN-P — July 2005
B-14
Interconnect and Cable Diagrams
CN1 Control Cable
Assembly
(2090-DAIO-D50xx)

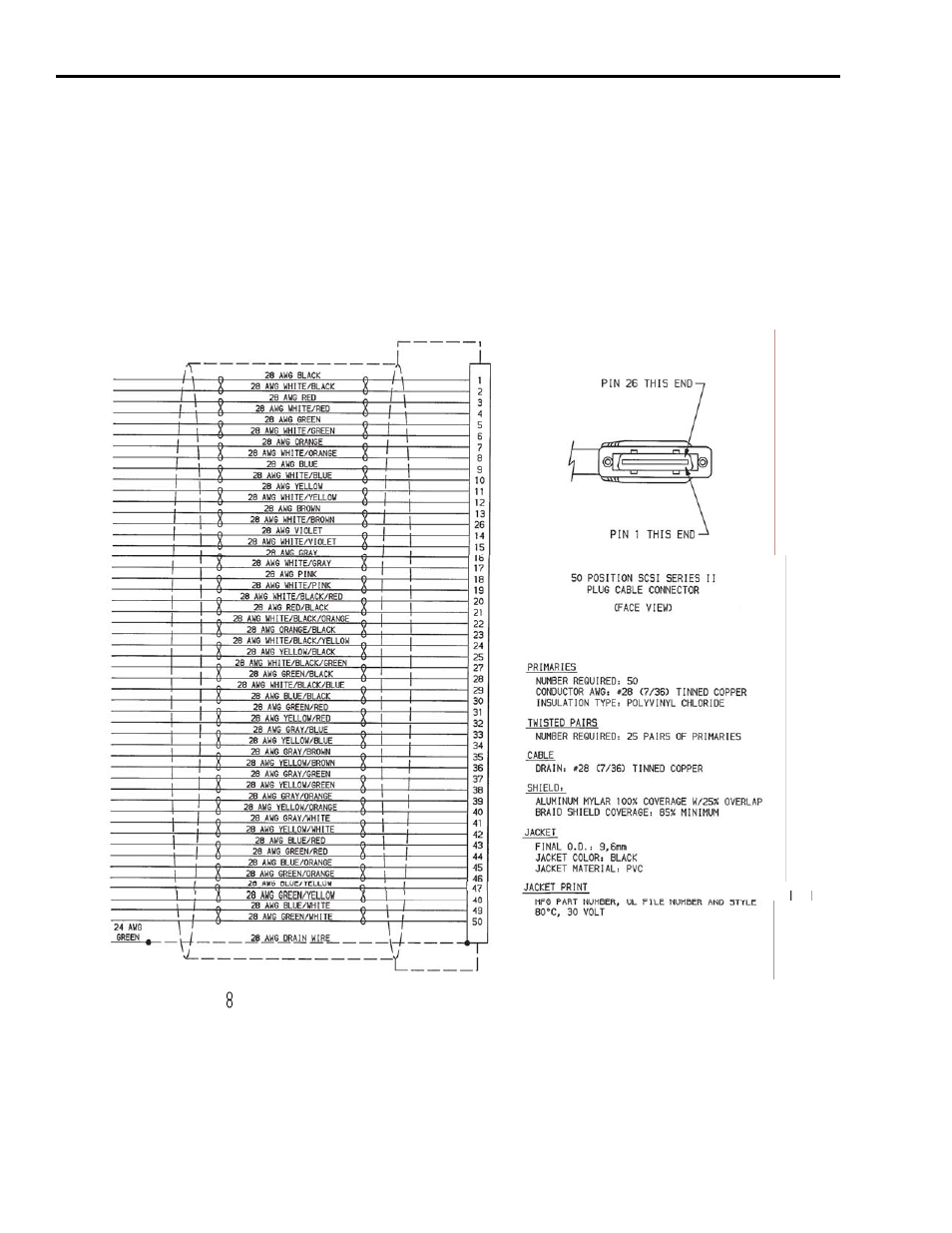

Figure B.13 shows the wiring diagram for the CN1 control cable assembly sold
by Allen-Bradley (catalog number 2090-DAIO-D50xx) to interface the
Ultra1500 drive to a motion controller.
Figure B.13
CN1 Control Cable Diagram
Drive End
Wiring Diagram
Denotes Twisted Pair
