Page 159
Publication 2092-UM001D-EN-P — July 2005
Interconnect and Cable Diagrams
B-15
CN2 Feedback Cable
Assembly for TL-Series
Motors (2090-DANFCT-Sxx)
Figure B.14 shows the wiring diagram for the motor feedback cable assembly
sold by Allen-Bradley (catalog number 2090-DANFCT-Sxx) to interface the
Ultra1500 drive to the TL-Series motor family. This cable assembly includes
connections for serial encoders as well as incremental encoders.

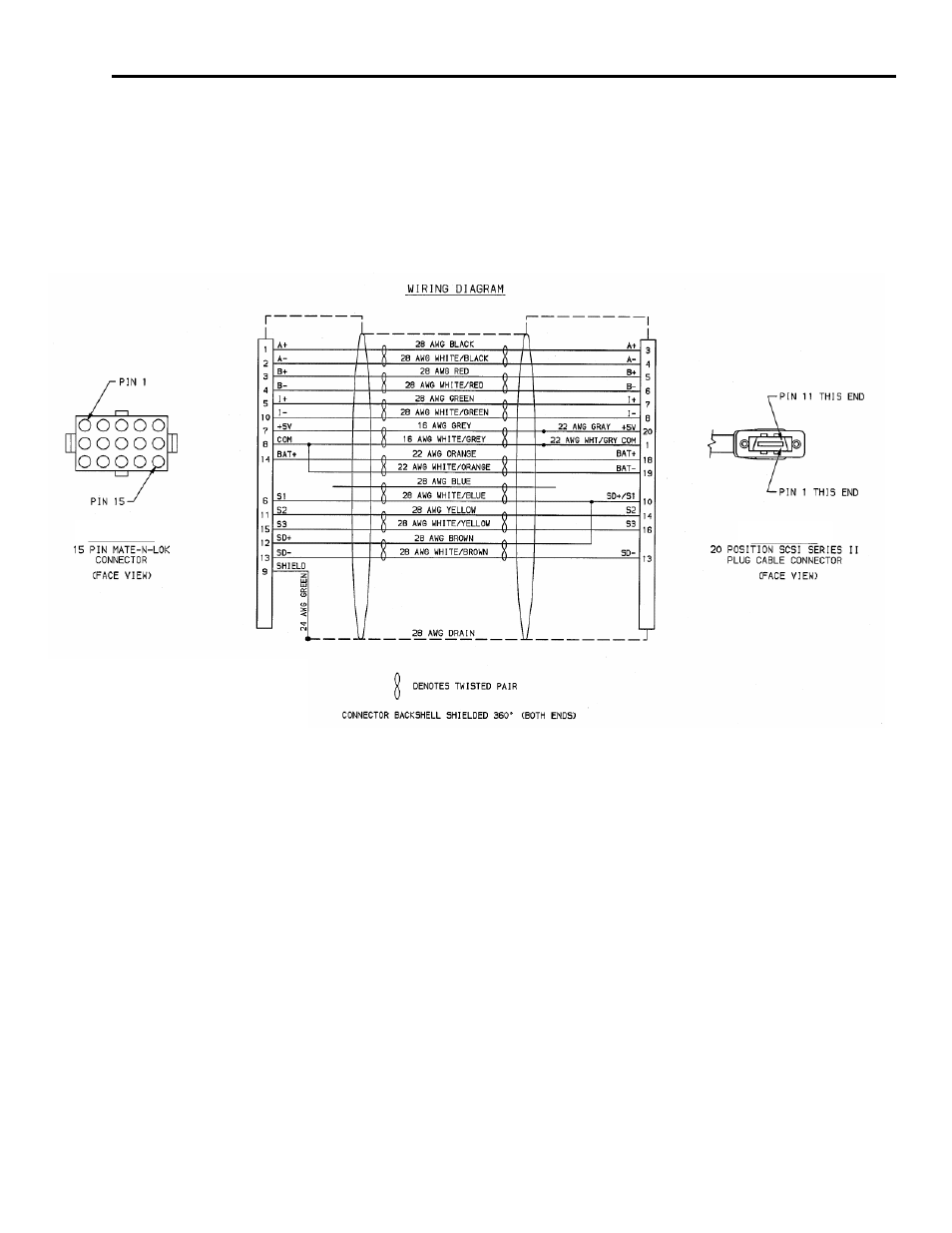

Figure B.14
TL-Series Motor Feedback Cable Diagram.
DRIVE END
MOTOR END
