Rockwell Automation 2092-DAx Ultra1500 User Manual User Manual
Page 157
Publication 2092-UM001D-EN-P — July 2005
Interconnect and Cable Diagrams
B-13
TL-Series Motor Power
Cable Assembly
(2090-DANPT-16Sxx)

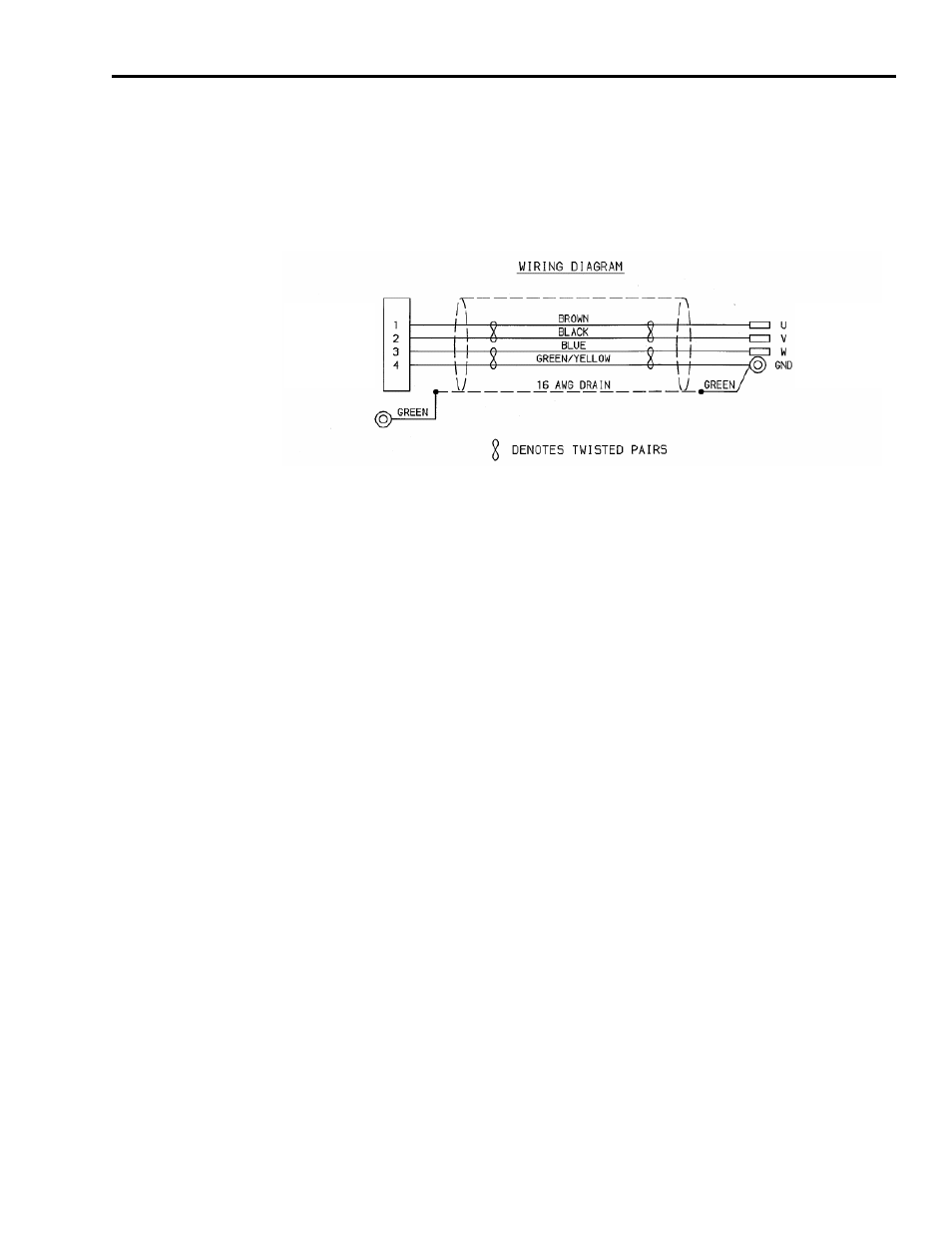

Figure B.12 shows the wiring diagram for the motor power cable assembly
sold by Allen-Bradley (catalog number 2090-DANPT-16Sxx) to interface the
Ultra1500 drive to the TL-Series motor family.
Figure B.12
TL-Series Motor Power Cable Diagram
MOTOR END
DRIVE END
