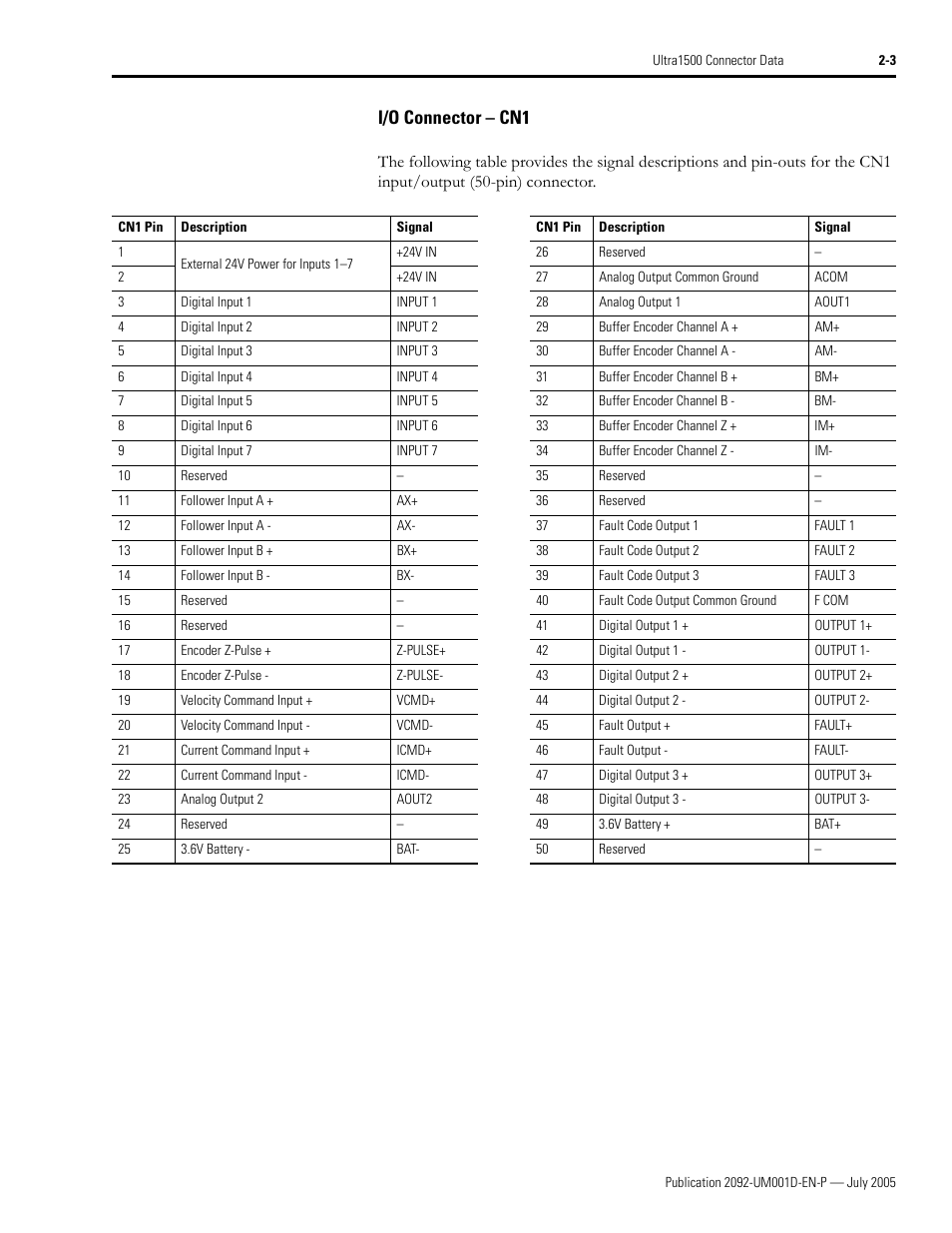

I/o connector - cn1, I/o connector – cn1 -3, I/o connector – cn1 – Rockwell Automation 2092-DAx Ultra1500 User Manual User Manual
Page 33
