DS4830 User’s Guide
21
BROWNOUT STATE
CPU DISABLED
ANALOG ACTIVE
SYSTEM CLOCK
STARTUP DELAY
CPU MODE
DIGITAL CORE ON
ANALOG ON
CODE EXECUTION
V
DD
> V
BO
V
DD
< V
BO
POR
V
DD
< V
BO

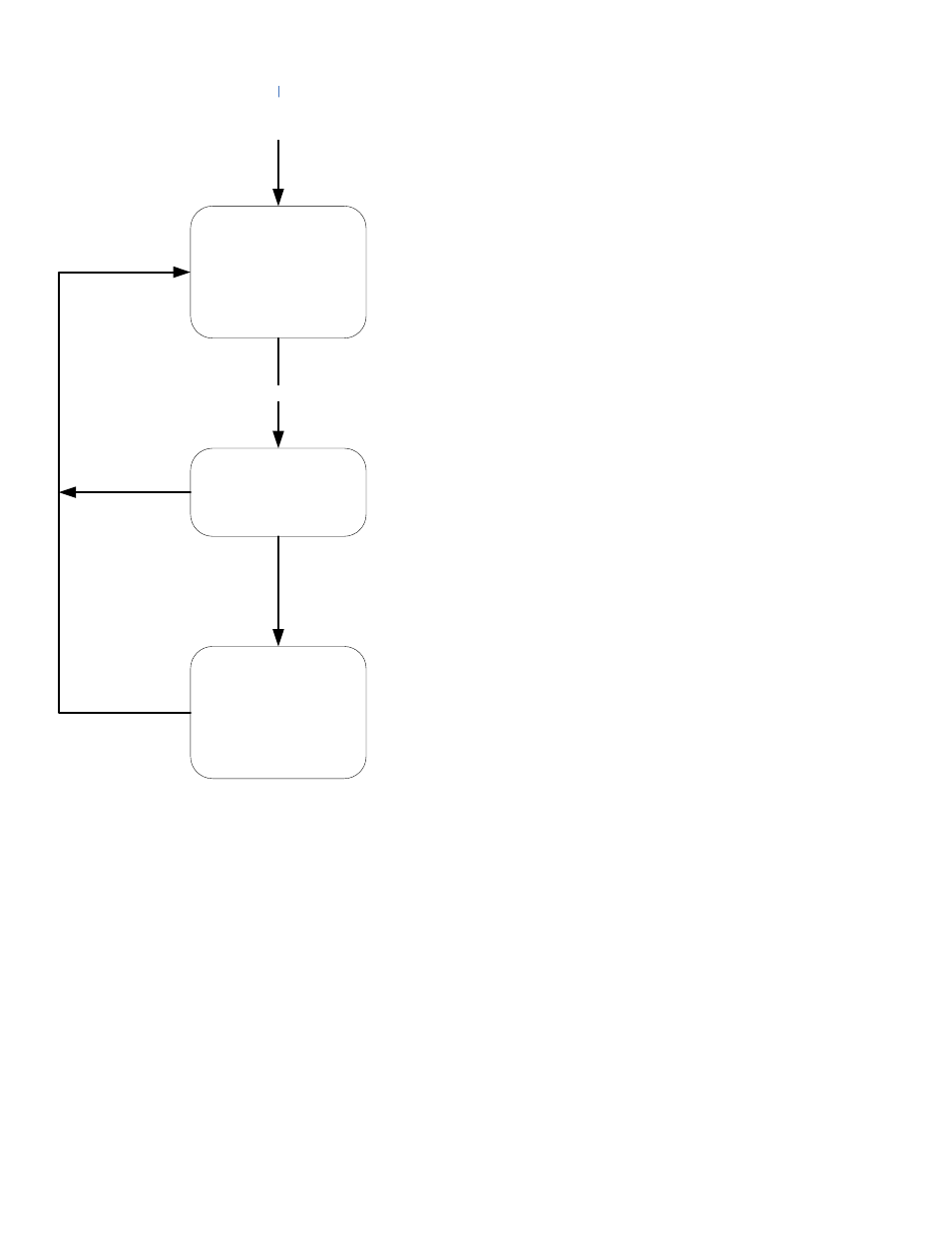

Figure 2-6: DS4830 State Diagram
2.6.2
– Watchdog Timer Reset
The watchdog timer is a programmable hardware timer that can be used to reset the processor in case a software lockup
or other unrecoverable error occurs. Once the watchdog is enabled, software must reset the watchdog timer periodically.
If the processor does not reset the watchdog timer before it elapses, the watchdog can initiate a reset.
If the watchdog resets the processor, the DS4830 will remain in reset and hold the /RST\ pin low for 12 clock cycles.
When a reset occurs due to a watchdog timeout, the Watchdog Timer Reset Flag (WTRF) in the WDCN register is set to
indicate the source of the reset.
2.6.3
– External Reset
During normal operation, the DS4830 is placed into external reset when the /RST\ pin is held at logic 0 for at least four
clock cycles. Once the DS4830 enters reset mode, it remains in reset as long as the /RST\ pin is held at logic 0. After the
/RST\ pin returns to logic 1, the processor exits reset within 12 clock cycles.
An external reset pulse on the /RST\ pin will reset the DS4830 and return to normal CPU mode operation within 10 clock
cycles.
