DS4830 User’s Guide
114
PWMCN.REG_SEL = 00b
PWMCN.PWM_SEL =n
PWMCN.REG_SEL = 01b
PWMCN.PWM_SEL =n
PWMCN.REG_SEL = 1xb
PWMCN.PWM_SEL =n
DCYC0 (Ch0)
DCYC9 (Ch9)
DUTY CYCLE REGISTER
PWMCFG0 (Ch0)
PWMCFG9 (Ch9)
PWM CONFIGURATION
PWMDLY0 (Ch0)
PWMDLY9 (Ch9)
DELAY REGISTER
PWMDATA REGISTER
Note: n = 0 to 9
READ OR WRITE TO PWMDATA

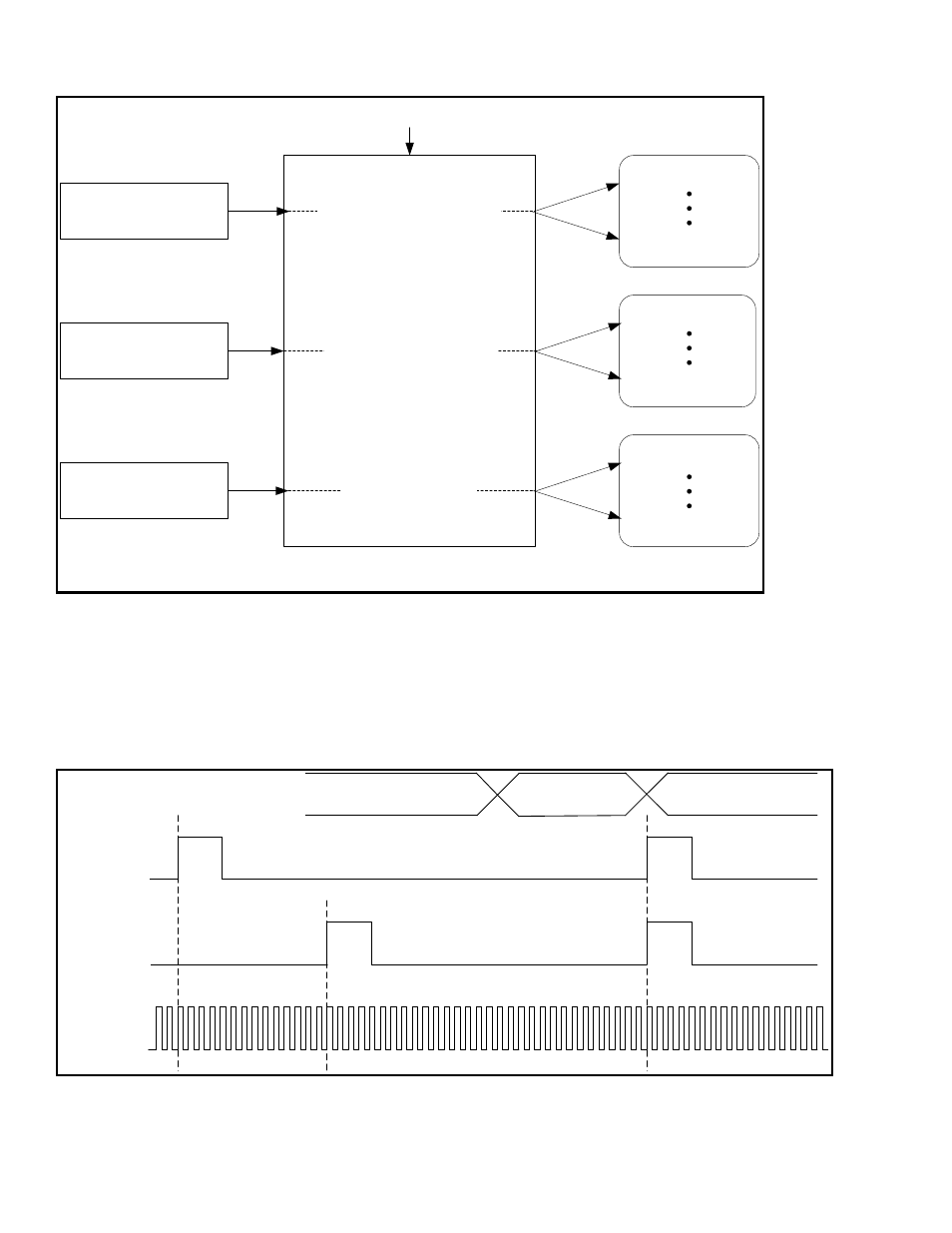

Figure 14-1: Illustration of PWMDATA and PWMCFG SFRs
14.1.2
– PWMSYNC SFR
Different channels can be synchronized using the PWMSYNC register. Doing so effectively brings the channels in phase by
restarting the channels that are to be synchronized, without affecting the PWM operation. The PWM channels to be
synchronized must have the same configurations (Resolution, Pulse Spreading option, Clock source etc.). The PWMSYNC
register auto clears itself on the next core clock. Figure 14-2 shows an illustration of the PWMSYNC SFR operation. See PWM
Delay section for more details.
PWMSYNC = 00h PWMSYNC = 03h PWMSYNC = 00h
PWM1
PWM0
Core Clock
Figure 14-2: PWM output synchronization when the same Delay is programmed
