Map Table Store and Forward Digits
In the following example, a caller dials 59222 to connect to Port 4 on Node 1. The
caller hears a dial tone, then dials 77 to place a call to the user at extension 7777 on
PBX B.

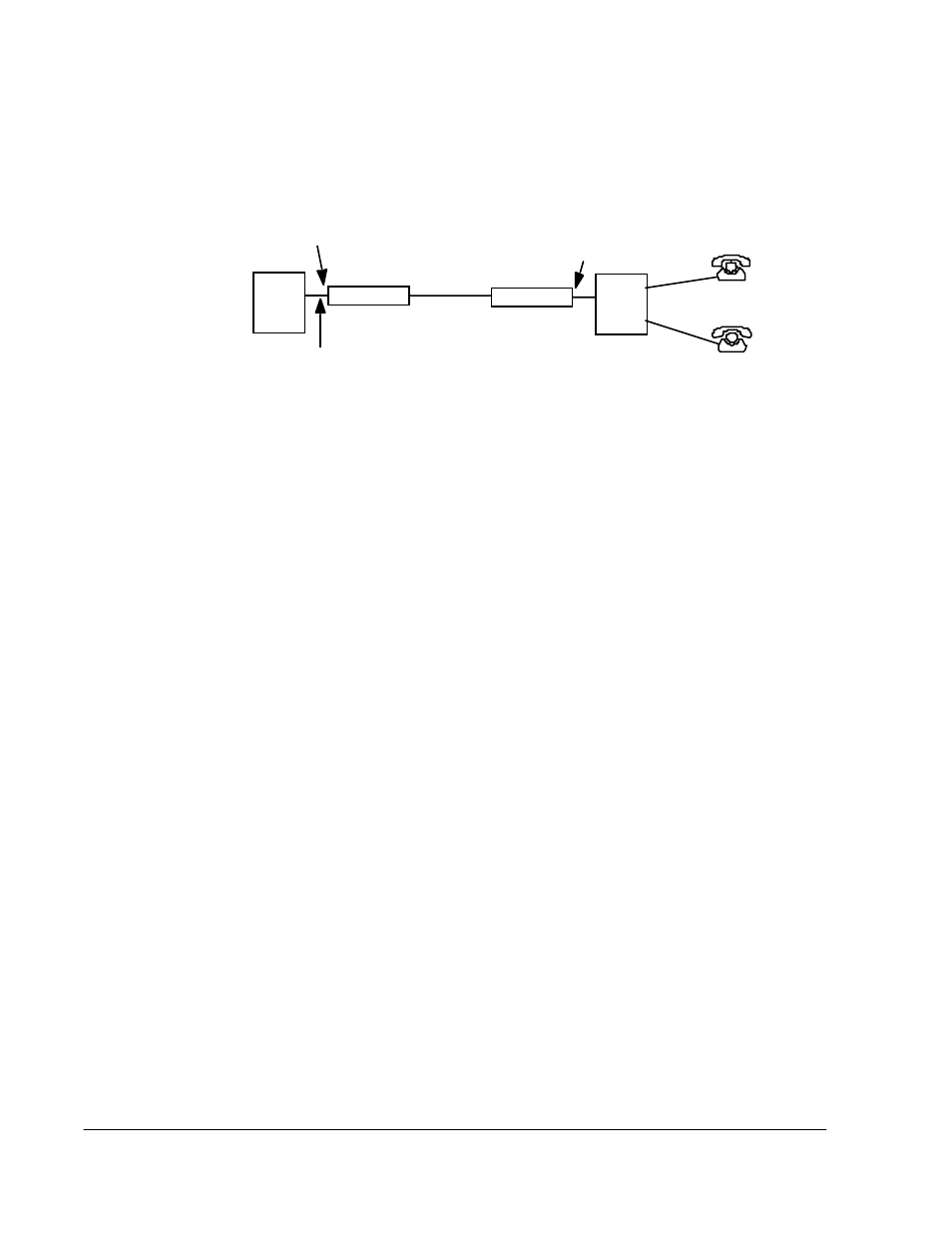

Figure C-1 Store and Forward Dialing Example 1
To handle the dialing inputs and outputs shown in this example, configure the Smart-
Switch 1800 nodes as follows:
Node 1:
●
System-Level Parameters:
◆
Voice Node Number = 1 .
◆
Speed Map Dial Digits = 2 .
●
Speed-Dial Map Table:
◆
Speed Dial Abbreviated Digits = 77 .
◆
Long Dial Digit Mapping = 000215 . ( 2 = node number, 5 = Voice port
number.)
◆ Extended Dial String = 7777 .
●
Voice Port 4 Configuration:
◆ Source of Extended Digits = MAP .
◆ # of Leading Digits to Delete = 0 .
◆ Forward Delay = 2 (.25 sec intervals)
◆ Forwarded Digit Type = DTMF .
◆
Forwarded Output Digits = Ext .
Node 2:
●
System-Level Parameters:
◆
Voice Node Number = 2 .
●
Speed-Dial Map Table:
◆
Speed Dial Abbreviated Digits = 12 .
◆
Long Dial Digit Mapping = 000215 . ( 2 = node number, 5 = Voice port
number.)
◆ Extended Dial String = 9,5551212 .
Node 2
PBX B
Phone line connected
to PBX number 59222
PBX A
Port 5
Frame Relay
Node 1
Telephone with number
555-1212 (outside line)
Telephone with number
7777 (internal to PBX) Port 4
