Boom
49. Install the intermediate boom, retract chain and
attaching hardware. (Refer to Section 3.3.5,
“Intermediate Boom Installation.”)
50. Install the inner boom, extend chain and attaching
hardware. (Refer to Section 3.3.6, “Inner Boom
Installation.”)
51. Clean up all debris, hydraulic fluid, etc., in, on, near
and around the vehicle.
52. With the ignition in the RUN position, check that the
indicator light on the boom sensor is OFF.
53. Start the engine and raise the boom above 40°.
Check to be sure that the Stabil-TRAK™ indicator
light (Fig. 3-67, 1) is ON.

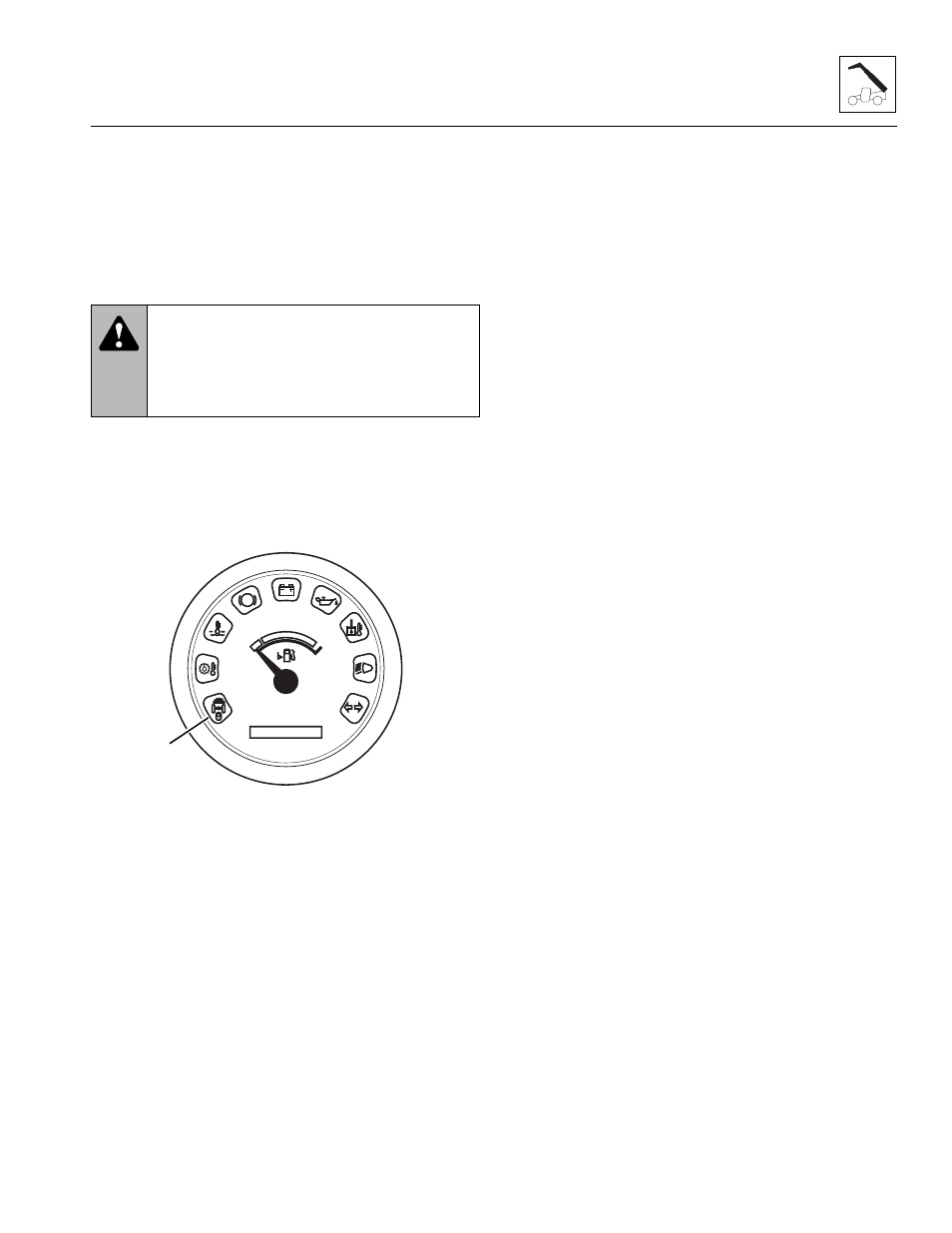

Figure 3-67 Stabil-TRAK™ Indicator Light
54. If the Stabil-TRAK™indicator light does not come on
you may have to adjust the boom sensor or the
Stabil-TRAK system is not functioning properly.
Follow the procedures in Section 10.4,
“Stabil-TRAK™ Electrical Circuit Operation and
Troubleshooting,” or Section 10.5, “Stabil-TRAK™
Hydraulic Circuit Operation and Troubleshooting,” to
repair the system.
55. Operate all boom functions several times. Check the
chain tension again and adjust as necessary. Check
for leaks, and check the hydraulic fluid level in the
tank; add fluid if required.
56. Apply grease at all lubrication points (grease fittings).
(Refer to appropriate Owners/Operators Manual.)
WARNING:
Avoid prolonged engine
operation in closed areas without adequate
ventilation. Failure to properly ventilate
exhaust fumes can result in death or serious
personal injury.
