9.119
Model 6042 Legacy
Origin 7/02
Electrical System
6. Connect the negative (–) battery cable to the
negative battery terminal (Fig. 9-105, 1).

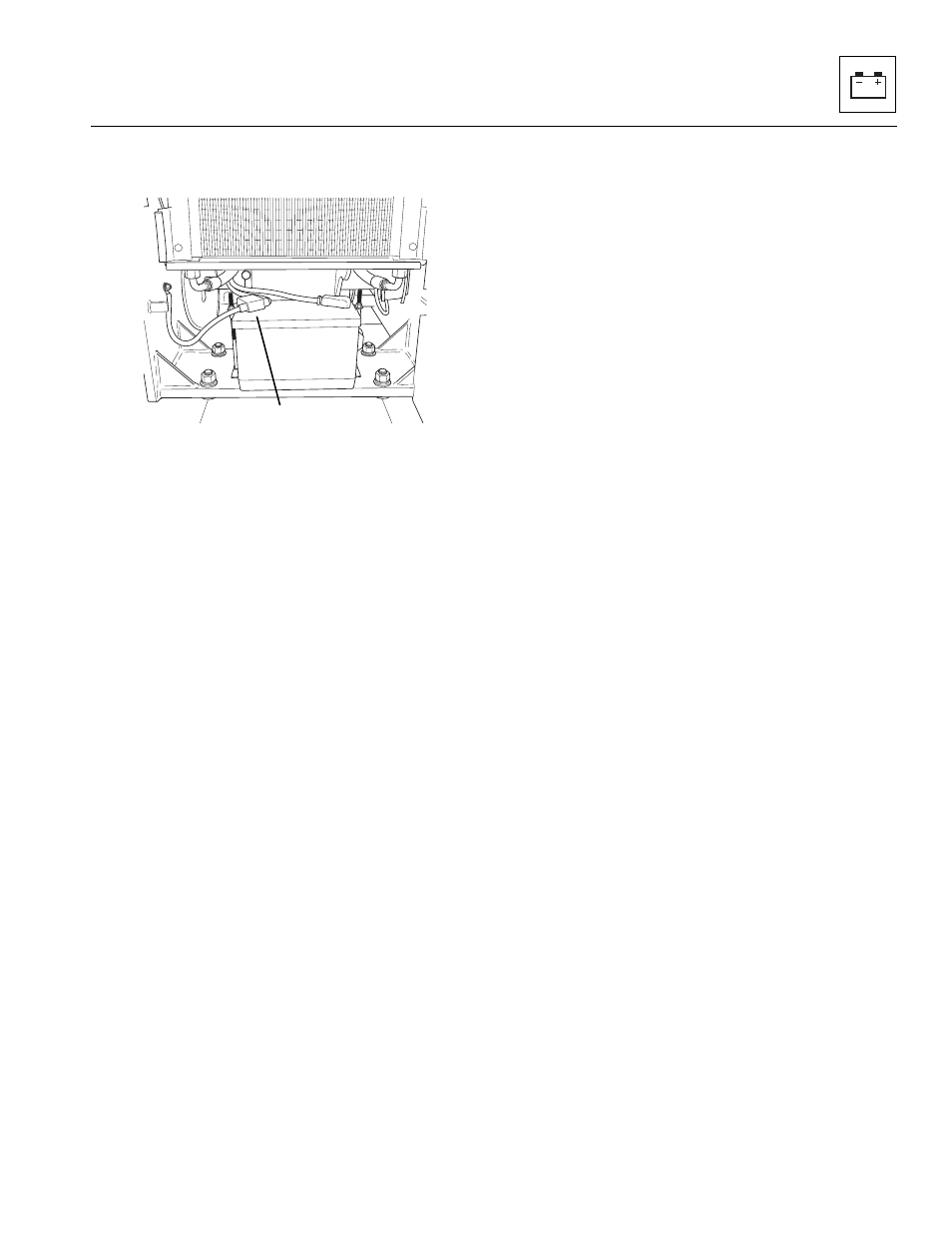

Figure 9-105 Battery Cable Connections
7. Test the operation of the transmission. Put the
transmission through its entire range of gears (speeds)
in both (F) FORWARD and (R) REVERSE, and
check that the transmission also shifts into (N)
NEUTRAL.
8. Verify that each function works properly and that the
transmission does not engage when in (N) NEUTRAL.
For further information, refer to the Transmission Service
Manual, Model ZF 4 WG-98 TC, OmniQuip P/N 8990455
(ZF P/N 5871 135 002).
MA8410
1
