7.33 Model 6042 Legacy Origin 7/02
Engine: Cummins 4BT3.9

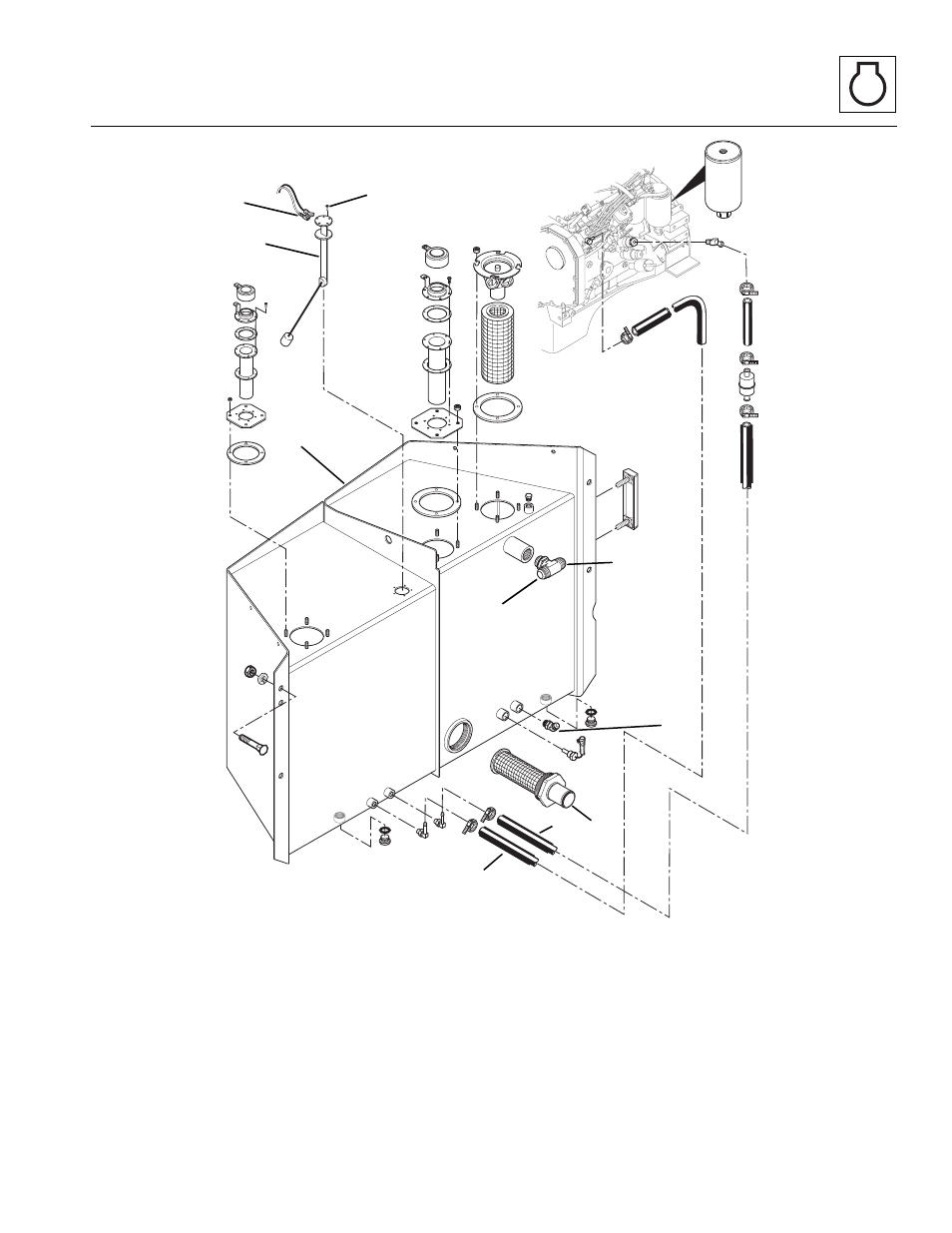

Figure 7-42 Fuel/Hydraulic Oil Tank Components
22. Install the inlet (Fig. 7-42, 12) and outlet (11) hoses
to the fuel tank. Secure with clamps.
IMPORTANT: Remove the hydraulic pump hose and
prime the hydraulic pump by filling the pump inlet
opening with fresh, filtered hydraulic oil from a clean
container. Install pump hose. Refer to Section 8.11.2,
“Pump Replacement.”
23. Connect upper hydraulic hoses (Fig. 7-42, 13 and 14)
to the hydraulic oil tank.
24. Connect the return hose (Fig. 7-42, 16) to the
hydraulic oil tank.
25. Connect the lower hydraulic oil strainer hose
(Fig. 7 -42, 15) to the strainer connection.
26. Fill fuel tank with No. 2 D fuel.
27. Fill the hydraulic tank with ISO-46 hydraulic oil.
28. Connect the outlet hose (Fig. 7-42, 1) to the main
hydraulic pump fitting (2).
