9.121

Model 6042 Legacy

Origin 7/02

Electrical System

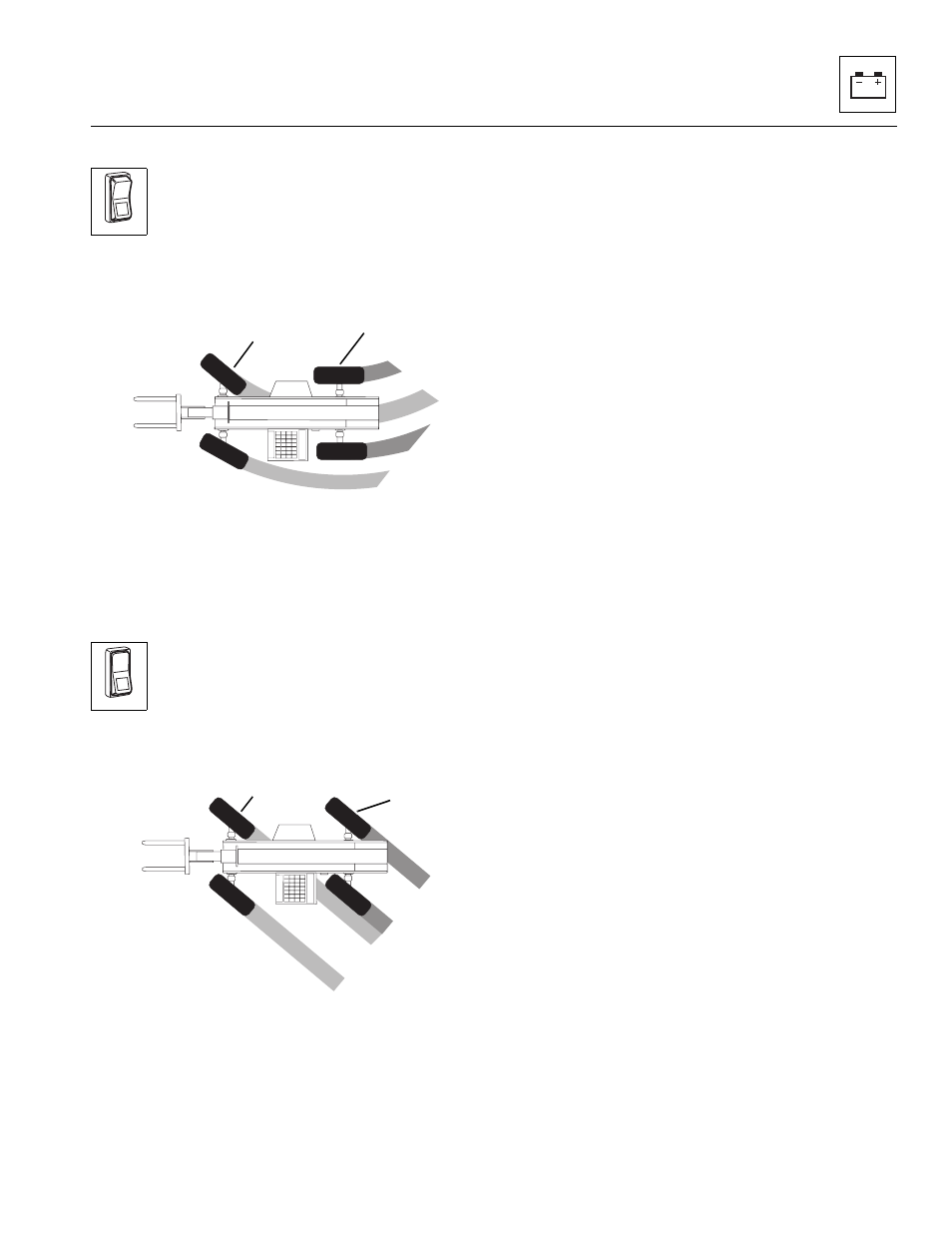

Front-Wheel Steer Mode

With the steer select switch in the center
position (Fig. 9-106, 3), the following condition
must be met:

1. The front wheels (Fig. 9-108, 1) must steer in the

direction that the steering wheel is turned.

Figure 9- 108 Front-Wheel Steer

2. Rear wheels (Fig. 9-108, 2) must remain in a fixed

FORWARD position and not move. (Refer to Section
9.7.15, “Front Steer Circuit and Troubleshooting.”)

Crab-Steer Mode

With the steer select switch in the upper most
position (Fig. 9 -106, 4), the following conditions
must be met:

1. Front wheels (Fig. 9-109, 1) must steer in the direction

that the steering wheel is turned.

Figure 9- 109 Crab Steer

2. Rear wheels (Fig. 9-109, 2) must steer in the direction

that the steering wheel is turned. (Refer to Section
9.7.17, “Crab Steer Circuit and Troubleshooting.”)

c. Four-Wheel Steer Indexing

If the vehicle does not drive “straight,” the steering may
not be synchronized or is “out of phase.” Perform the four-
wheel steer indexing procedure to synchronize the steering.

1. With the steer select switch (Fig. 9-106, 1) in the

four- wheel steer position (2), turn the steering wheel
fully left.

2. While holding the steering wheel fully left, toggle the

steer select switch to the front-wheel steer position
(Fig. 9 -106, 3).

3. Steer the front wheels back to center.

4. Toggle the steer select switch back to four-wheel

steer position (Fig. 9-106, 2).

5. Turn the steering wheel fully left.

6. Toggle the steer select switch back to the front-wheel

steer position (Fig. 9-106, 3).

7. Steer the front wheels fully left.

8. Toggle the switch to the four-wheel steer position

(Fig. 9 -106, 2) and return to center.

The vehicle should now be properly indexed in four-wheel
steer. If the steering is still not synchronized, repeat the
procedure. (Refer to Section 9.7.15, “Front Steer Circuit
and Troubleshooting” and subsequent circuits and
troubleshooting charts.)
