SkyTrak 6042 Service Manual - Manual (Page 147)

4.27 Model 6042 Legacy Origin 7/02
Cab and Covers
5. Place a funnel at the base of the radiator to channel
the drained coolant into the container. Open the
radiator drain plug (Fig. 4-41, 1) or petcock and
allow the coolant to drain. Replace the drain plug, or
close the petcock.

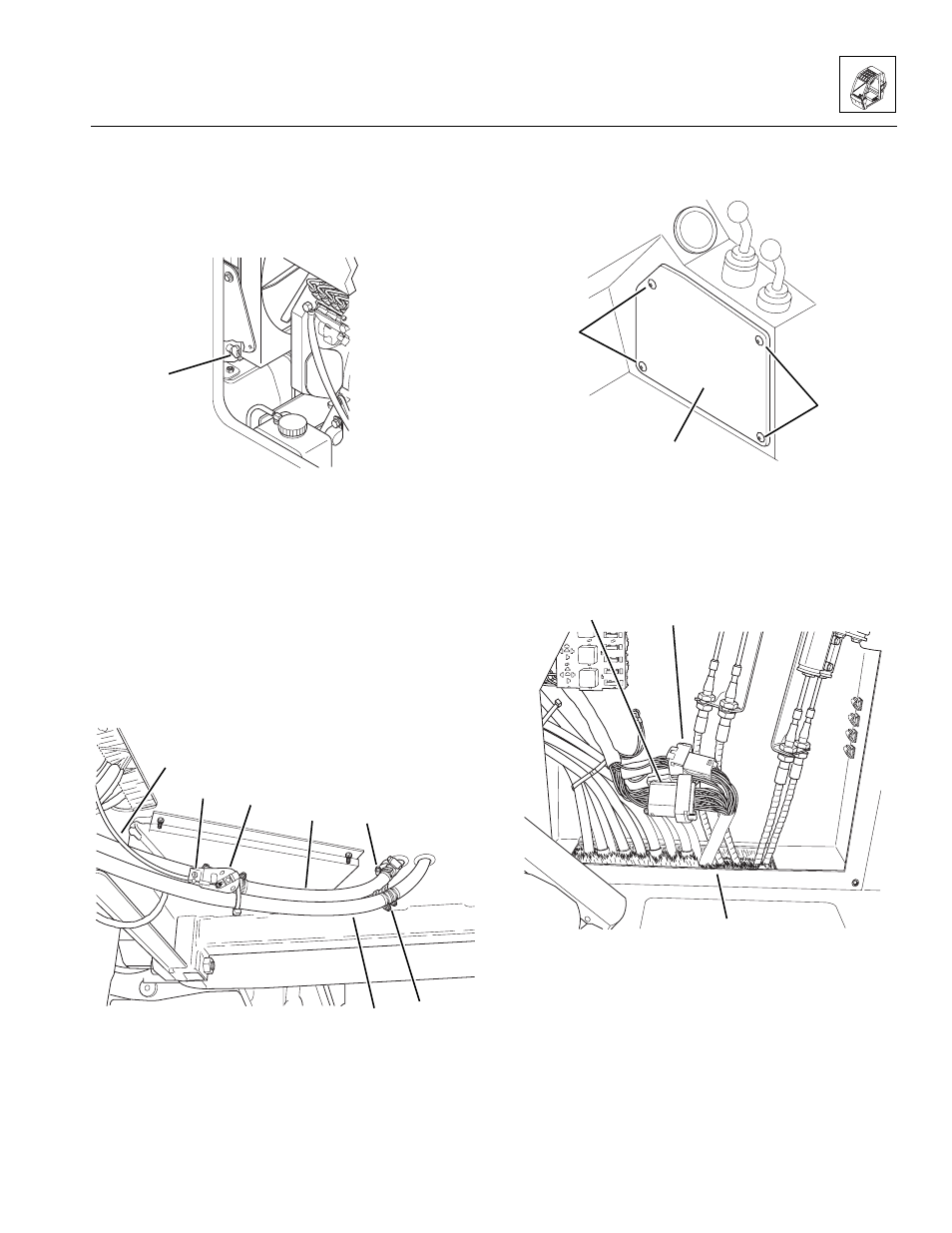

Figure 4-41 Drain the Cooling System
6. Transfer the coolant to a container with a cover, and
label as “Used Antifreeze.” Dispose of the used
coolant at an approved recycling facility.
7. Working under the cab, loosen the clamp screw
(Fig. 4-42, 1) and disconnect the heater control
cable (2) from the heater control valve (3).
Note: Label all hoses to ensure correct installation.
8. Loosen the hose clamps (Fig. 4-42, 4 and 5), and
disconnect the heater hoses (6 and 7).
Figure 4-42 Disconnect Heater Hoses
9. Remove four button-head screws (Fig. 4-43, 1) and
remove the console panel (2).
Figure 4- 43 Remove the Console Panel
10. Disconnect the two cab-to-wiring harness
connectors (Fig. 4-44, 1 and 2). Push the harness
connectors through the opening (3) at the bottom of
the cab.
Figure 4-44 Disconnect the Wiring Connectors
OA1310
1
MA8780
1
4
2
3
6
5
7
OH2430
1
2
~
1
MA8470
2
3
1
