6.13 Model 6042 Legacy Origin 7/02
Transmission: ZF 4 WG-98 TC
6.7.4 After Transmission Service or
Replacement
Refer to the ZF 4 WG-98 TC Transmission Repair Manual
(ZF part number 5871 135 002) for information on
servicing the transmission after overhaul or repair. In
general:
1. Check the transmission oil level and add oil as
required.
2. Install a new transmission filter.
3. Check the torque on the drive shaft yoke capscrews.
4. Wear suitable eye protection. When an overhauled
or repaired transmission is installed, thoroughly
clean the oil cooler lines to and from the transmission.
5. Drain and flush the entire system.
6. Disconnect and clean all transmission cooler hoses.
When possible, remove transmission lines from the
vehicle for cleaning.
7. Thoroughly clean transmission filter screens and
cases, and replace transmission filter elements.
8. Back flush the transmission oil cooler portion of the
radiator with oil and compressed air until all foreign
material is removed. Flushing in the direction of
normal oil flow does not adequately clean the cooler.
If needed, remove the radiator from the vehicle.
IMPORTANT: DO NOT use flushing compounds for
cleaning purposes.
9. Reassemble all components and fill the transmission
with clean, fresh Universal Tractor Fluid through the
dipstick tube opening (Fig. 6-15, 1). Remove the
dipstick and fill with approximately 3 gallons
(11 liters) of Universal Tractor Fluid. Check the level
by taking intermittent dipstick readings as outlined in
the appropriate Owners/Operators Manual. DO NOT
overfill. Reinstall the dipstick when finished.

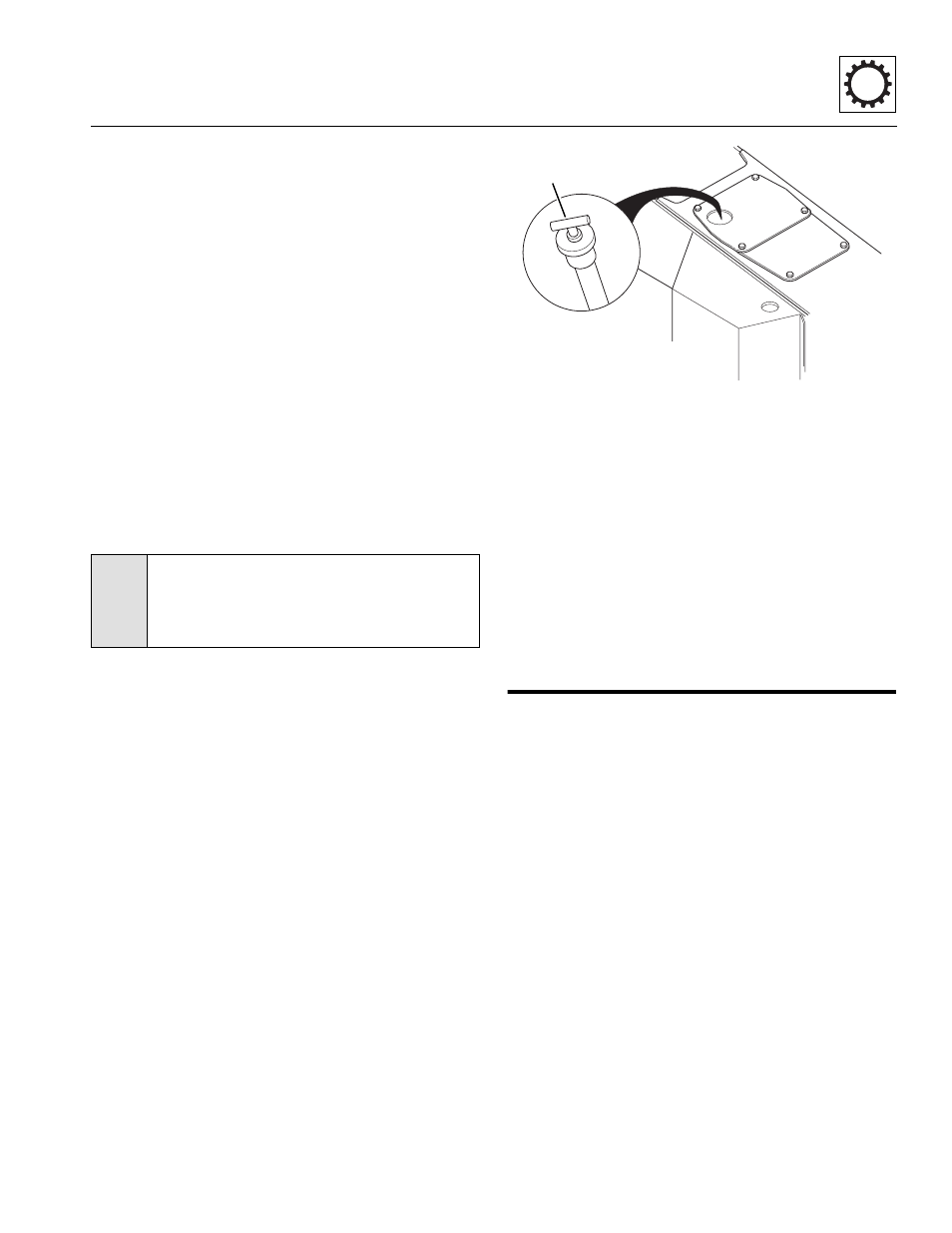

Figure 6-15 Transmission Oil Level Dipstick Location
10. Run the engine for two minutes at idle (1,000-1,100 rpm)
to help prime the torque converter and the
transmission oil lines.
11. Recheck the level of the fluid in the transmission with
the engine running at idle (1,000-1,100 rpm).
12. Add Universal Tractor Fluid as necessary to bring
the fluid level up until it reaches the FULL mark on
the dipstick. Recheck the oil level when it reaches
operating temperature (180-200° F or 83-94° C).
13. Recheck all drain plugs, lines, connections, etc., for
leaks, and tighten where necessary.
6.8 TOWING A DISABLED VEHICLE
Towing a disabled vehicle should only be attempted as a
last resort, after exhausting all other options. Make every
effort to repair the vehicle, and move it under its own
power, before using the emergency towing procedures
outlined in the appropriate Owners/Operators Manual.
IMPORTANT: After the vehicle has been towed to a
secure location, reactivate the parking brake. Carefully
follow the procedures from start to finish. Consult your
local OmniQuip Authorized Service Center (ASC) or the
OmniQuip Service Department if you are unsure about
any part of the procedure, or for specific instructions for
your particular situation.
CAUTION:
DO NOT exceed 165 psi
(39.6 bar) when back flushing the oil cooler.
Applying too much pressure may damage the
oil cooler/radiator.
OH23622
1
