Boom
3.14 Model 6042 Legacy Origin 7/02
b. Remove the capscrews (Fig. 3-30, 1), lockwashers
(2) and flat washers (3) holding the bottom wear
pad (4) and spacer (5) to the intermediate boom.
Label the wear pad and spacer as “Bottom.” Also
note the orientation of the mounting hole offset.
Save the capscrews, lockwashers, flat washers,
spacer and wear pad inserts (6).

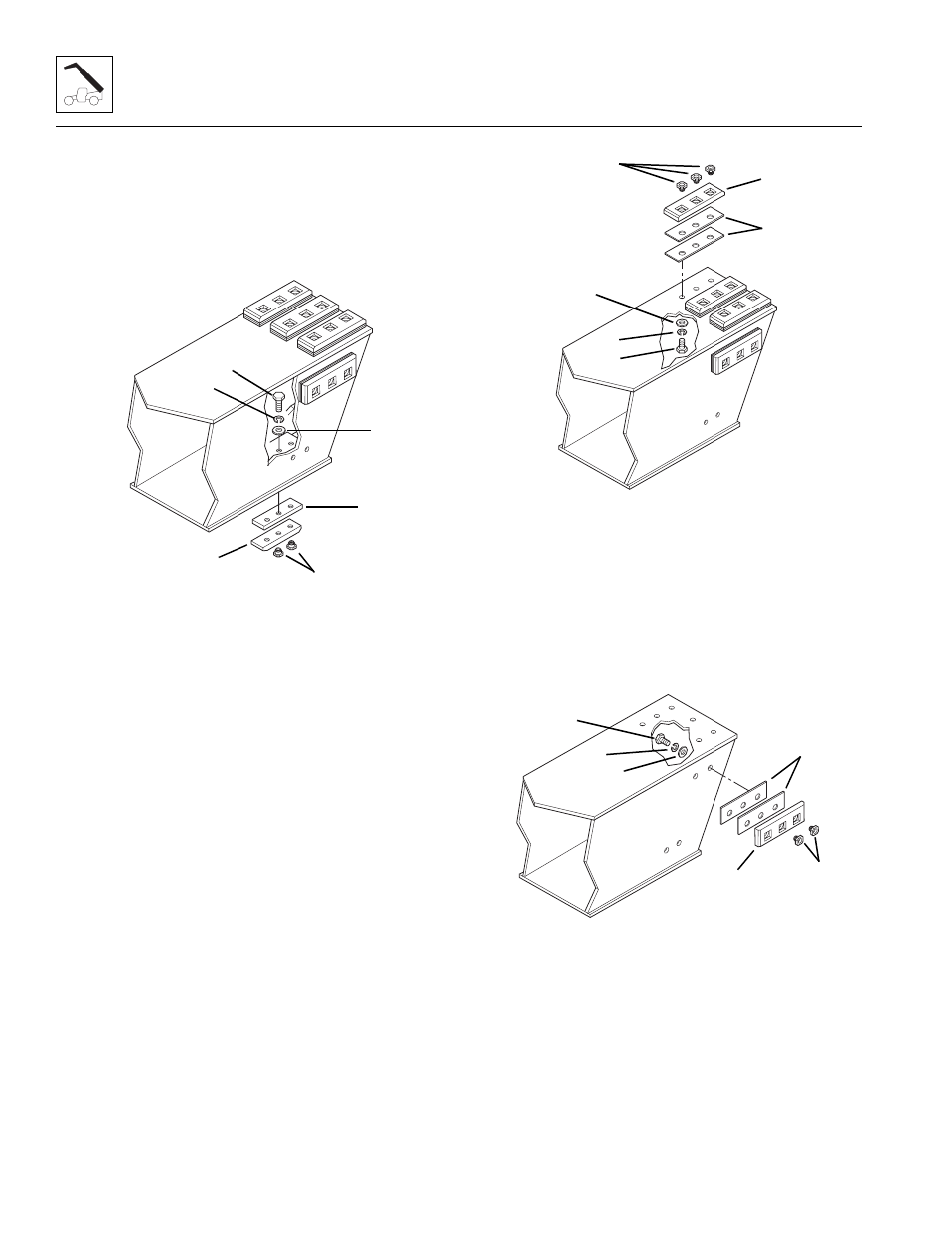

Figure 3-30 Intermediate Boom Rear Wear Pads
c. Remove the capscrews (Fig. 3-31, 1), lockwashers
(2) and flat washers (3) holding the upper wear
pads (4) and shims (5) (if present) to the
intermediate boom. Label the wear pads and
shims as “Top Left,” “Top Center” or “Top Right.”
Also note the orientation of the mounting hole
offset. Save the capscrews, lockwashers, flat
washers, shims and wear pad inserts (6).
Figure 3-31 Intermediate Boom Upper Rear Wear Pads
d. Remove the capscrews (Fig. 3-32, 1), lockwashers
(2) and flat washers (3) holding the side wear
pads (4) and shims (5) (if present) to the interme-
diate boom. Label the wear pads and shims as
“Left Side Top” and “Right Side Top/Bottom.”
Also note the orientation of the mounting hole
offset. Save the capscrews, lockwashers, flat
washers, shims and wear pad inserts (6).
Figure 3- 32 Intermediate Boom Side Wear Pads
