Stabil-TRAK™ System
10.2 Model 6042 Legacy Origin 7/02
10.1 STABIL-TRAK™ SYSTEM
COMPONENT TERMINOLOGY
To understand the safety, operation and maintenance
information presented in this section, it is necessary that
the operator/mechanic be familiar with the names and
locations of the major assemblies of the Stabil-TRAK™

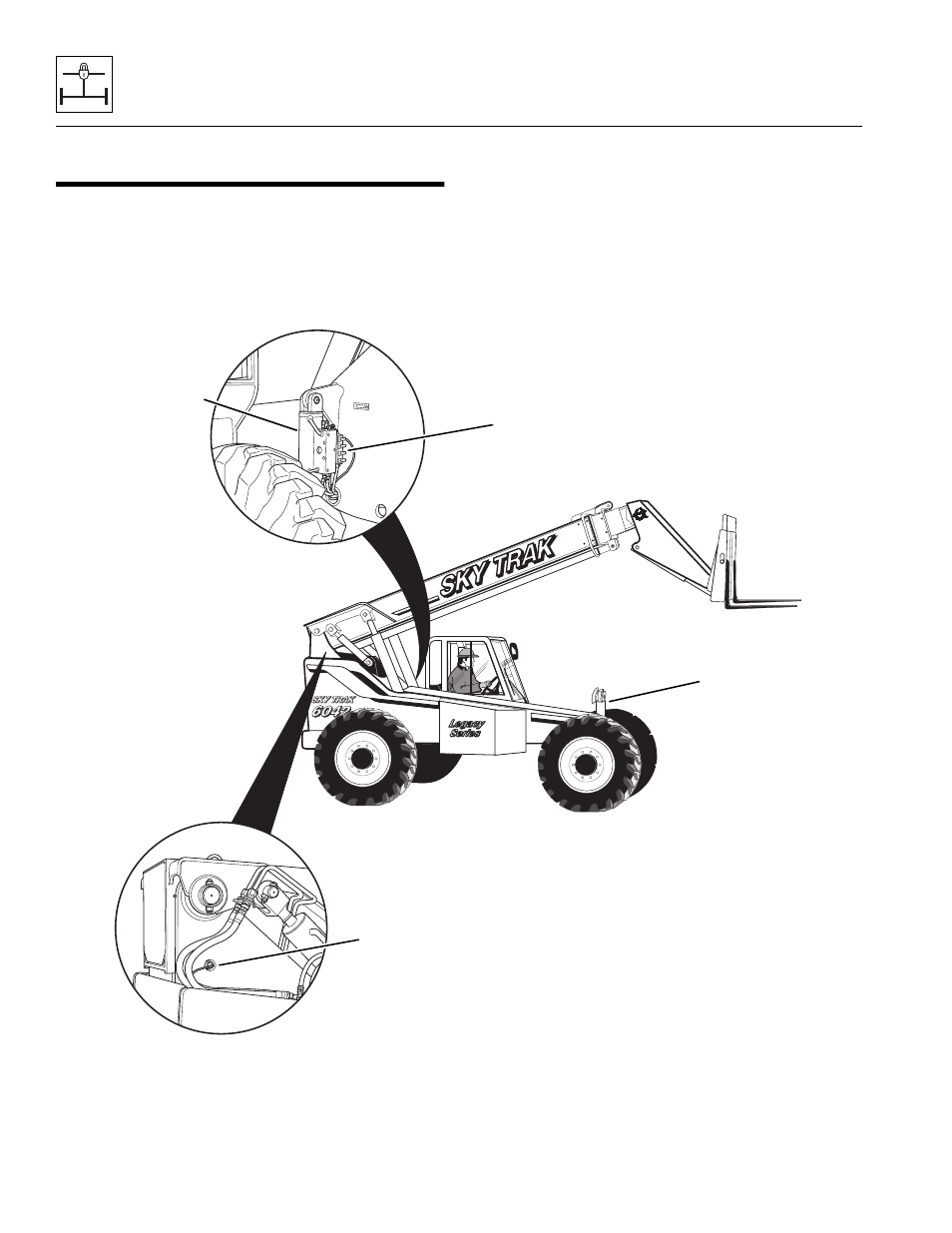

system. The following illustration identifies the
components that are referred to throughout this section.
MA10,0660
Boom Proximity
Switch
Frame Sway
Cylinder
Stabilizer Cylinder
Stabil-TRAK™
Manifold
