Electrical System
9.94 Model 6042 Legacy Origin 7/02

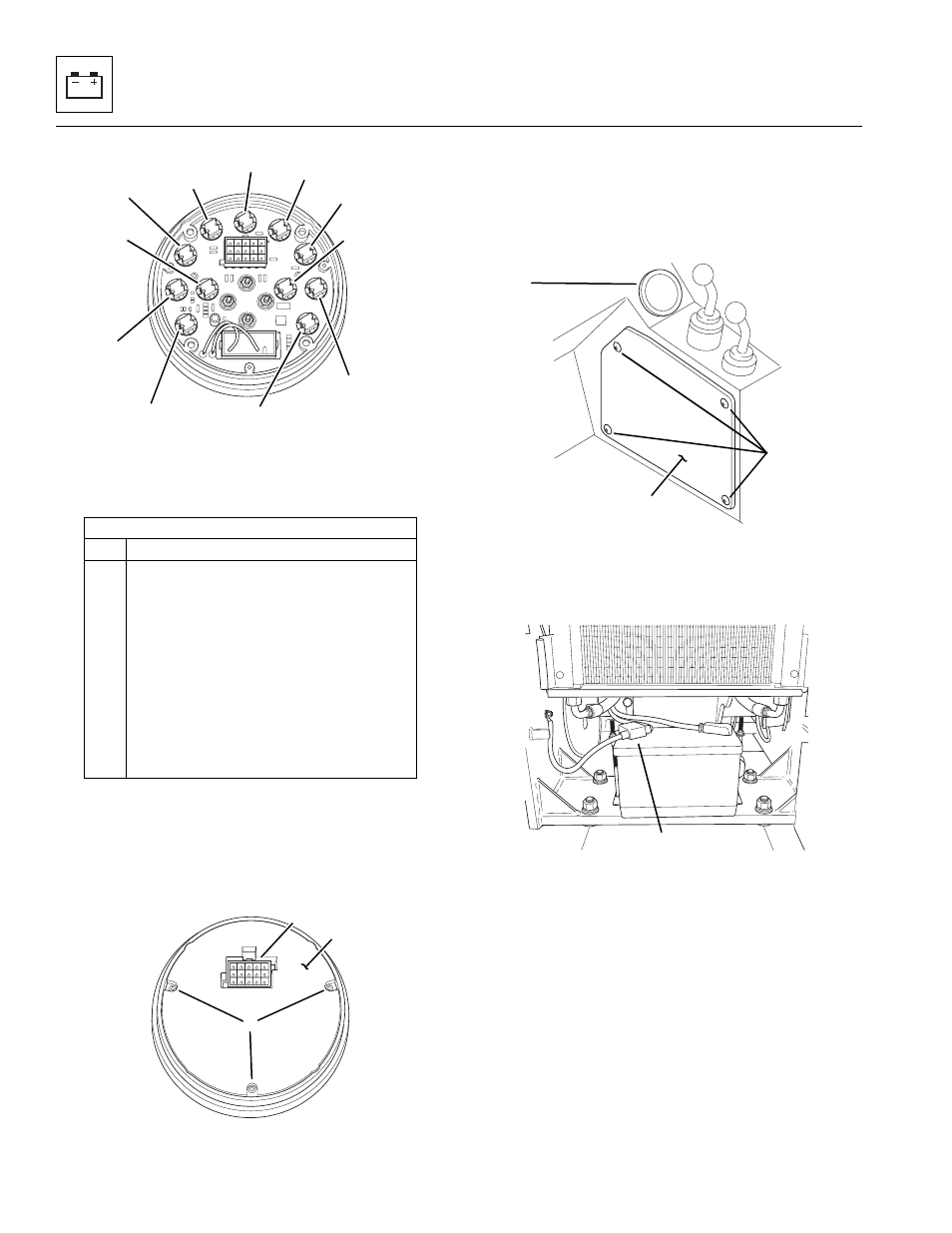

Figure 9-60 Instrument Cluster Bulb Replacement
3. Rotate the suspect bulb assembly (Fig. 9-60)
1/4 turn counterclockwise, remove and replace bulb.
f. Operator’s Instrument Cluster Installation
1. Install the instrument cluster rear access plate
(Fig. 9-61, 1) using three screws (2).
2. Connect the harness plug terminal into the
instrument cluster terminal (Fig. 9-61, 3).
Figure 9-61 Instrument Cluster Back Cover Removal
3. Place the instrument cluster (Fig. 9-62, 1) into the
cut-out, and install the plastic retaining ring and
secure.
4. Install the right side access panel (Fig. 9-62, 2)
using four screws (3).
Figure 9-62 Install the Right Side Console Access Panel
5. Connect the negative (–) battery cable to the
negative battery terminal (Fig. 9 -63, 1).
Figure 9-63 Battery Cable Connections
See Fig. 9-60.
Item Description
1 Engine Oil Pressure
2 Alternator
3 Park Brake
4 Engine Coolant Temperature
5 Instrument Gauge Backlights
6 Transmission Temperature
7 Stabil-TRAK™
8 Turn Signal (Optional)
9 High Beam (Optional)
10 Hydraulic Oil Temperature
MA7940
1
3
4
5
6
7
8
10
5
9
2
MA7930
1
2
3
OH2430
3
1
2
MA8410
1
