Electrical System
9.116 Model 6042 Legacy Origin 7/02
c. Transmission Upper Valve Body Solenoid
Removal
Note: Before removing the valve body protective cover,
clean the area around the housing to prevent
contamination.
1. Disconnect the negative (–) battery cable at the
negative battery terminal (Fig. 9-102, 1).

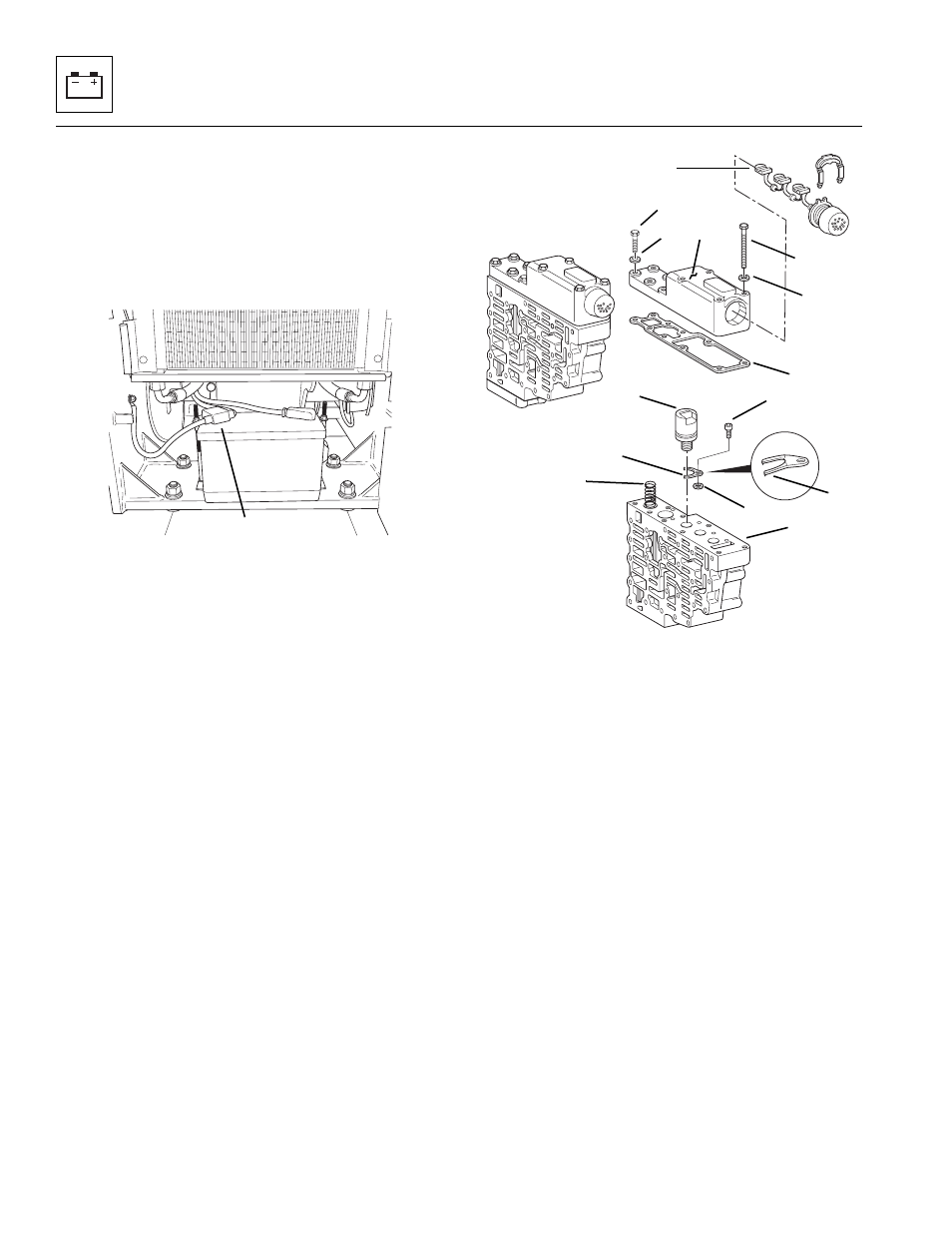

Figure 9-102 Battery Cable Connections
2. Remove the six capscrews (Fig. 9-103, 1) four hex-
head capscrews (2), ten lockwashers (3 and 4) and
protective cover plate (5) secured over the
transmission solenoid cartridge valve (6). Inspect the
protective cover gasket (7); replace if torn or
missing.
Figure 9-103 Transmission Solenoid (Upper Valve
Body Shown) Removal and Installation
3. Disconnect the internal wire connector (Fig. 9 -103, 8)
from the solenoid valve that is being removed. Label
the internal wire connections if removing more than
one solenoid valve.
4. Remove the solenoid capscrew (Fig. 9-103, 9),
retaining plate (10) and flat washer (11) securing the
solenoid valve (6) to the transmission.
5. Remove the solenoid valve (Fig. 9 -103, 6) and
replace.
MA8410
1
MT2300
9
2
1
3
4
5
7
8
10
6
11
13
12
14
