9.15.12 Transmission Temperature Switch
The transmission temperature switch (Fig. 9 -120, 1) is
threaded into the transmission housing (2) and is
connected to the operator’s instrument cluster via the
engine wiring harness, bulkhead connector and cab
wiring harness.

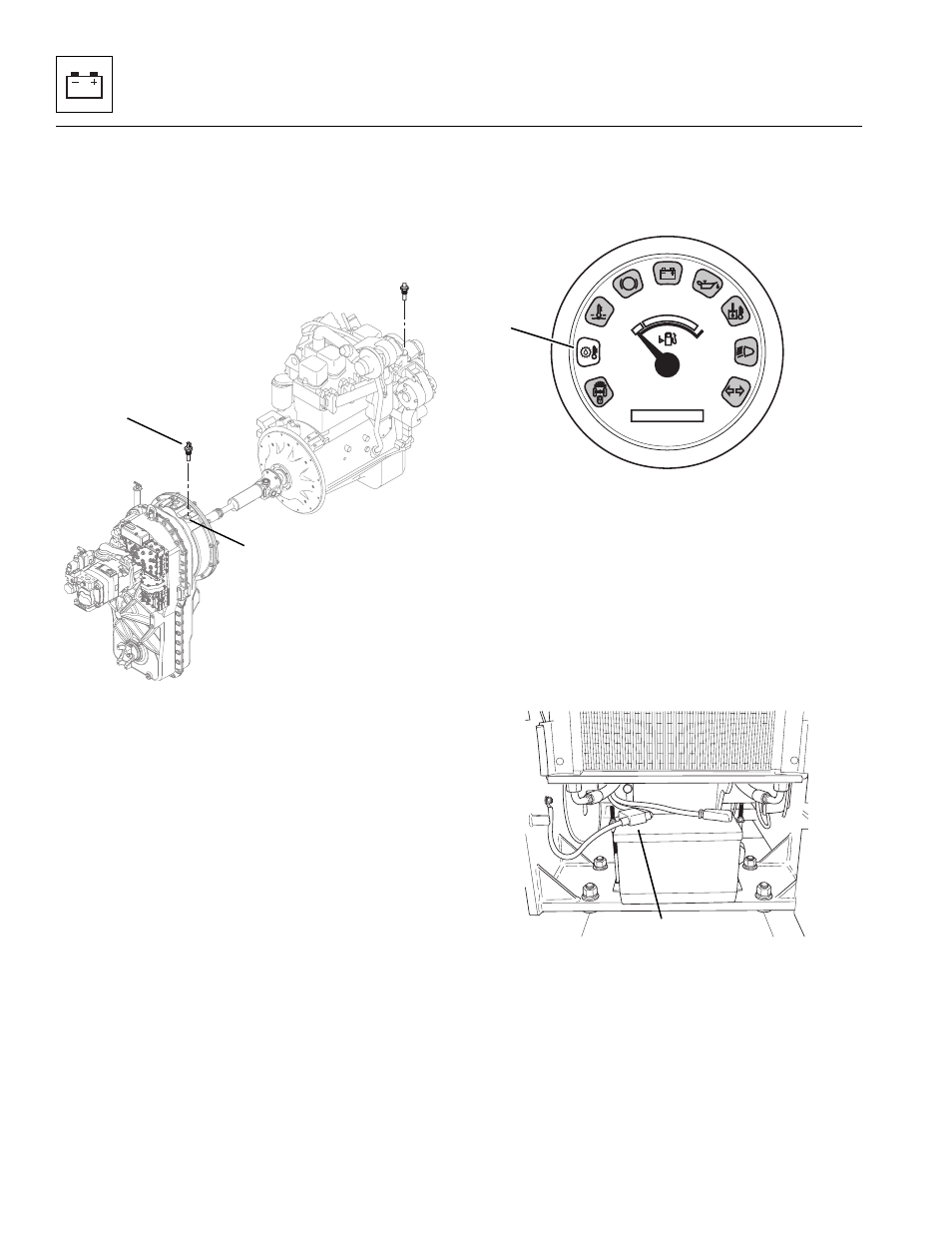

Figure 9- 120 Transmission High Temperature Switch
When the transmission fluid temperature rises above
250° F (121° C), the contacts close within the switch. The
operator’s instrument cluster indicator (Fig. 9 -121, 1) illu-
minates.
Figure 9-121 Transmission Temperature Indicator
When the transmission temperature is below 250° F
(121° C), the contacts within the switch open and the op-
erator’s instrument cluster indicator turns off. (Refer to
Section 9.9.3, “Transmission Temperature Warning Indi-
cator Troubleshooting.”)
a. Transmission Temperature Switch Removal
1. Disconnect the negative (–) battery cable at the
negative battery terminal (Fig. 9 -122, 1).
Figure 9- 122 Battery Cable Connections
