4.25 Model 6042 Legacy Origin 7/02
Cab and Covers
4.4.6 Windows
Note: The slider window assembly (Fig. 4-40, 1),
skylight glass (2) and left side rear glass (12) are bonded
to the cab with adhesive.

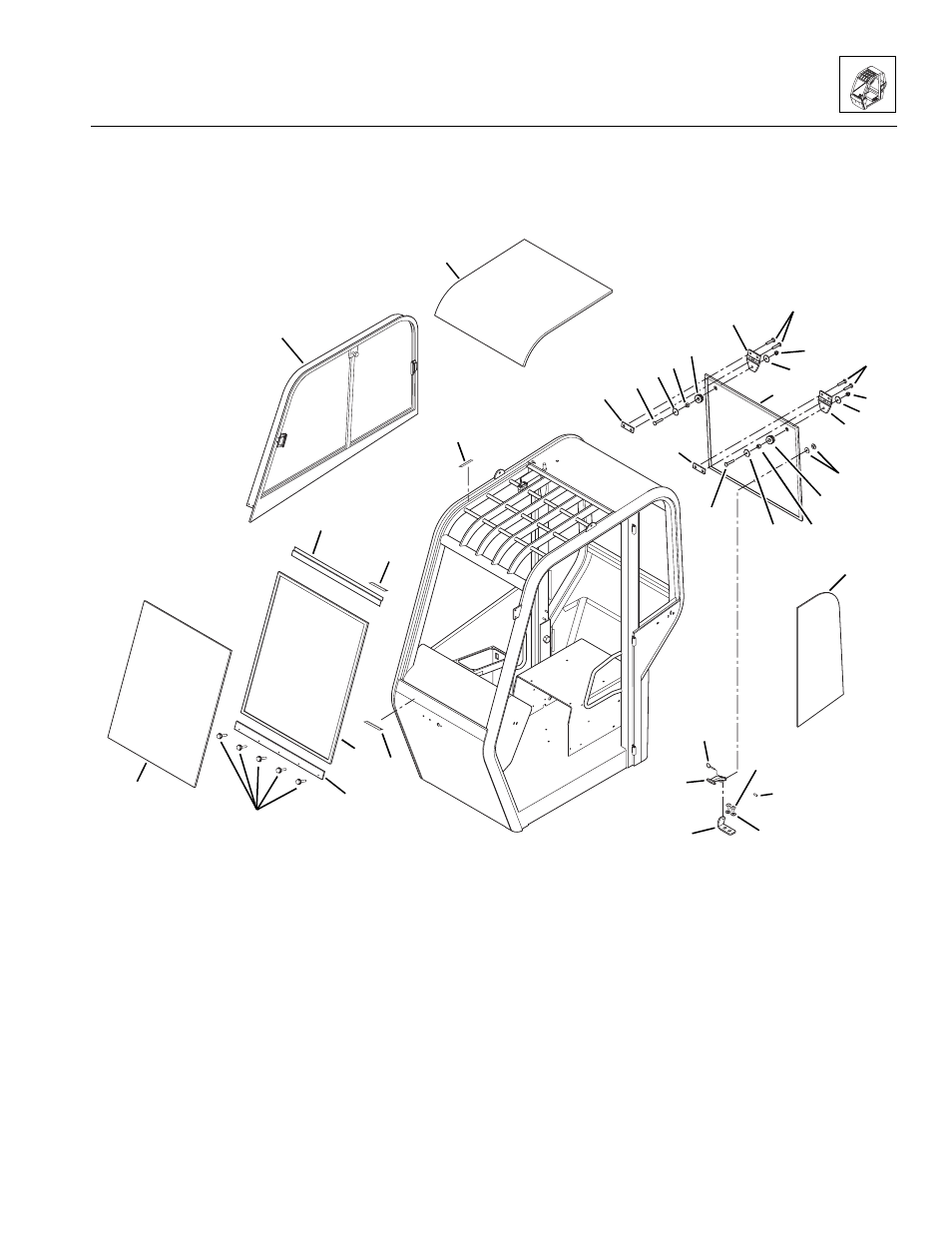

Figure 4-40 Windows
MA8770
2
1
1. Slider Window
Assembly
2. Skylight Glass
3. Rear Window Hinge
Block (2)
4. Torx Screw (6)
5. Flat Washer (4)
6. Bushing (2)
7. Grommet (2)
8. Hinge (2)
9. Acorn Nut (2)
10. Rear Window
11. T-Handle Latch (with
mounting hardware)
12. Left Side Rear Glass
13. Roll Pin
14. Torx Screw (2)
15. Washer (2)
16. Rear Window Mount
Latch
17. Detent Ring Pin
18. Setting Block (8)
19. Double “D” Bulb Seal
20. Lower Windshield
Plate
21. Self-Tapping Screw (5)
22. Windshield Glass
23. Upper Windshield Clip
23
18
18
3
8
4
22
21
20
18
19
12
13
4
5
6
7 9
5
10
4
9
5
8
11
3
7
6 5
4
14
15 16
11
17
