Hydraulic System
8.30 Model 6042 Legacy Origin 7/02
8.8.9 Attachment Tilt (Up) and Slave Cylinder Circuit and Troubleshooting
(Refer to Section 8.8.23, “Attachment Tilt and Slave Circuit Description” for a more detailed explanation of
this circuit.)

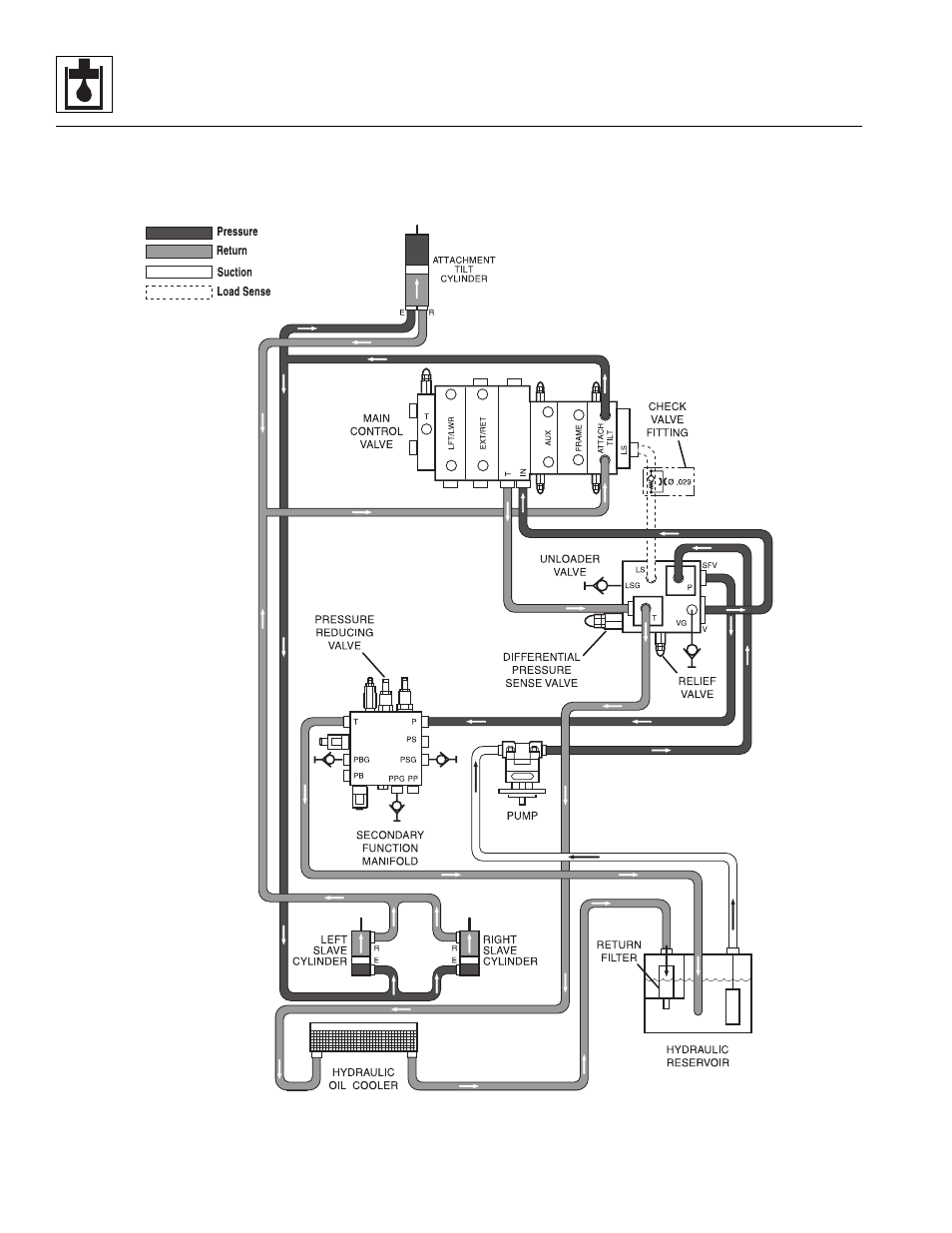

Figure 8- 12 Attachment Tilt (Up) and Slave Cylinder Circuit
