Electrical System
9.38 Model 6042 Legacy Origin 7/02
9.7.18 Front Windshield Wiper Circuit and Troubleshooting (Option)

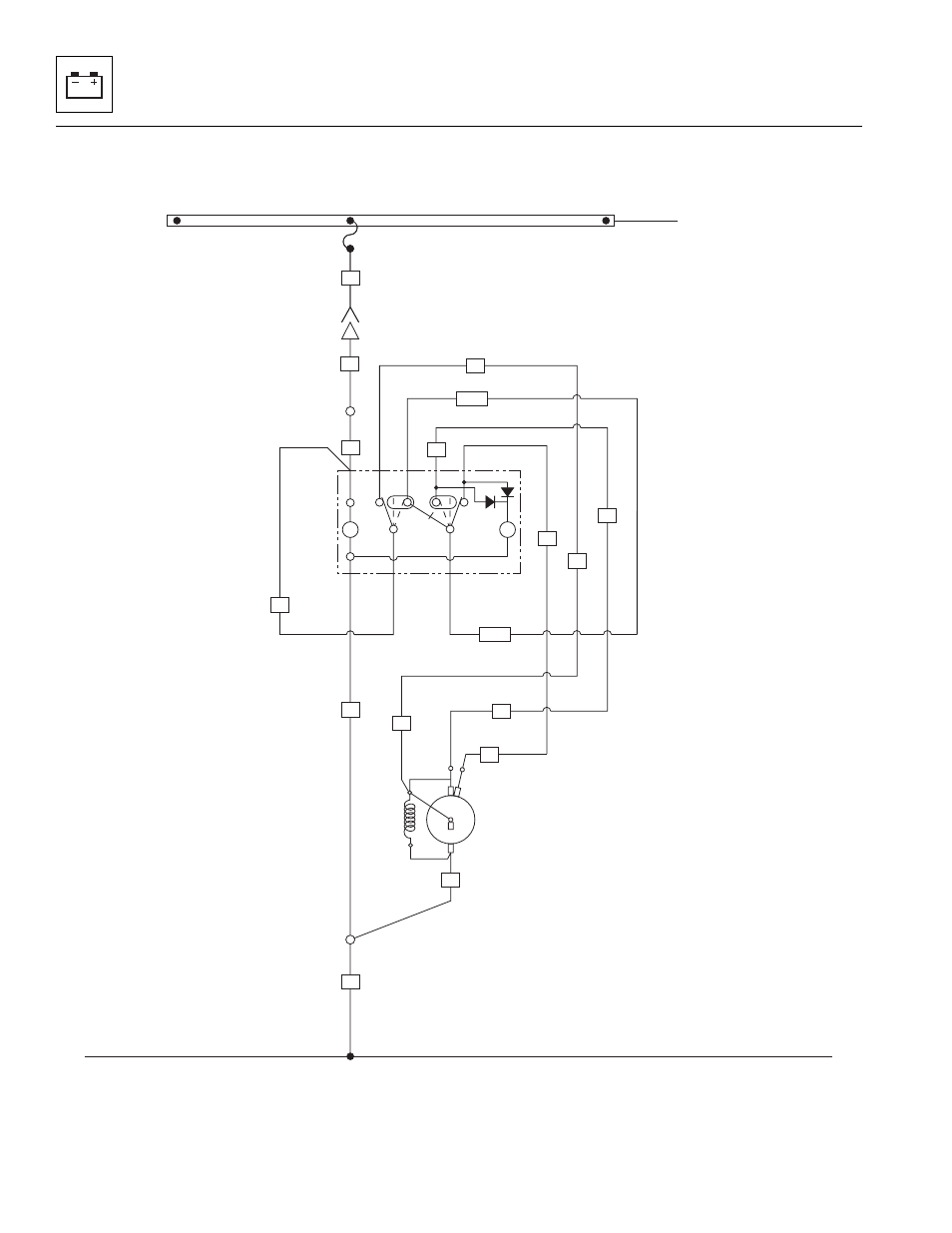

Figure 9-20 Front Windshield Wiper Circuit
(-) (-)
32
M
FRONT
WIPER MOTOR
2
7 5 2
9 6 4 3
1
1
6
4
3
2
3
4
3
2
4
1
30
2
6F
LOW
PARK HIGH
1D
1A
6A
FRONT
WIPER
SWITCH
PUR
PUR
FUSE BLOCK BUS BAR
10.0
OPTION
TO
IGNITION
SWITCH
32
FUSE BLOCK BUS BAR
10.0
OPTION
TO
IGNITION
SWITCH
MA8821
