Hydraulic System
8.60 Model 6042 Legacy Origin 7/02
8.10 HYDRAULIC RESERVOIR
The hydraulic reservoir (Fig. 8-26, 1) and the fuel tank (2)
are one unit. They are located on the right side of the
vehicle under a cover (3). To remove the fuel tank/
hydraulic reservoir cover, remove the hex-head
capscrews (4), lockwashers (5) and flat washers (6) from
the clips (7) on the cover. The fuel tank/hydraulic reser-
voir is secured to the right side of the vehicle frame with
four carriage bolts (8), lockwashers (9) and hex nuts (10).

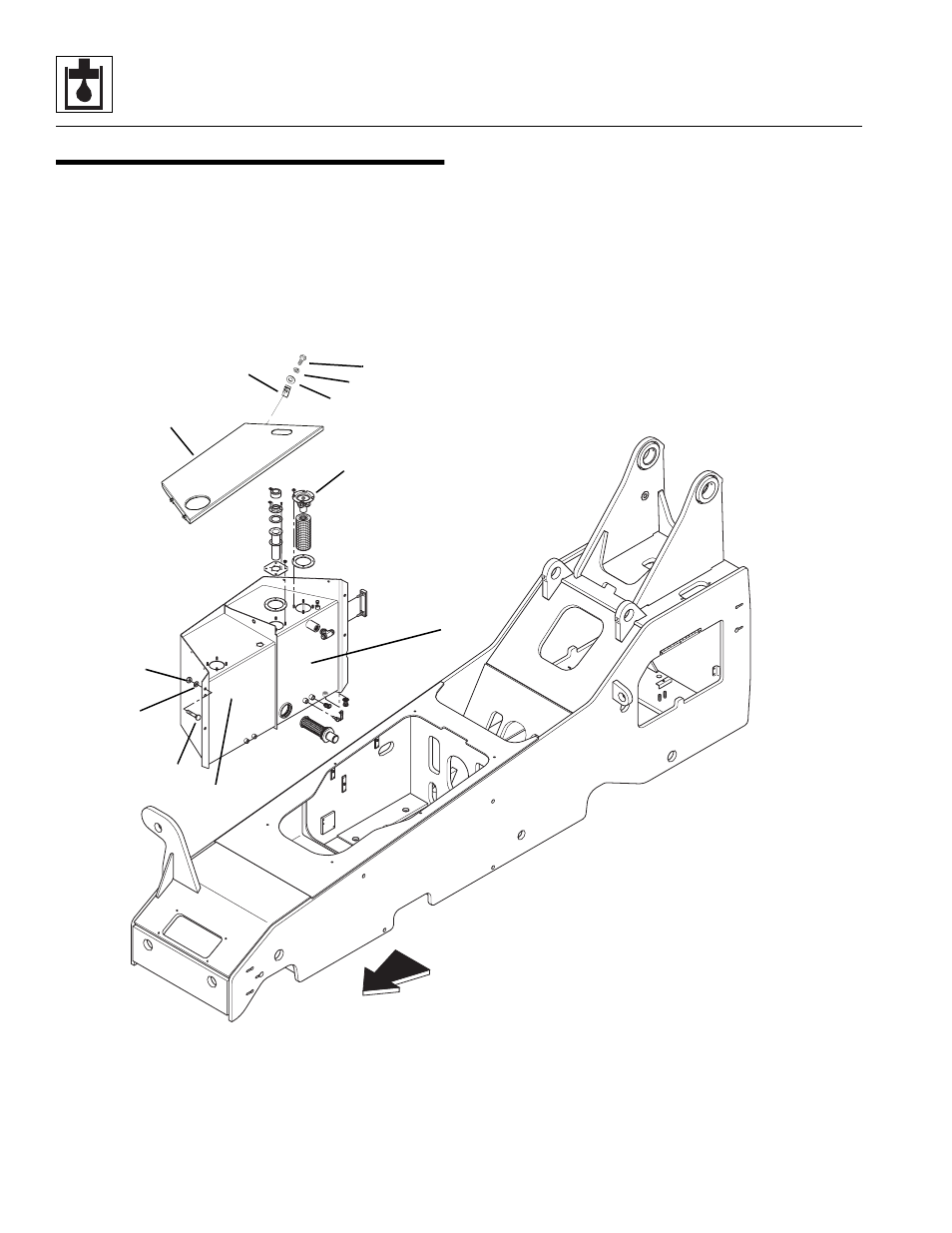

Figure 8-26 Hydraulic Reservoir Mount
MA9260
Front
1
2
3
4
5
6
10
9
8
7
~
~
11
