9.11.1 Alternator
a. Alternator Removal
1. Disconnect the negative (–) battery cable at the
negative (–) battery terminal (Fig. 9-44, 1).

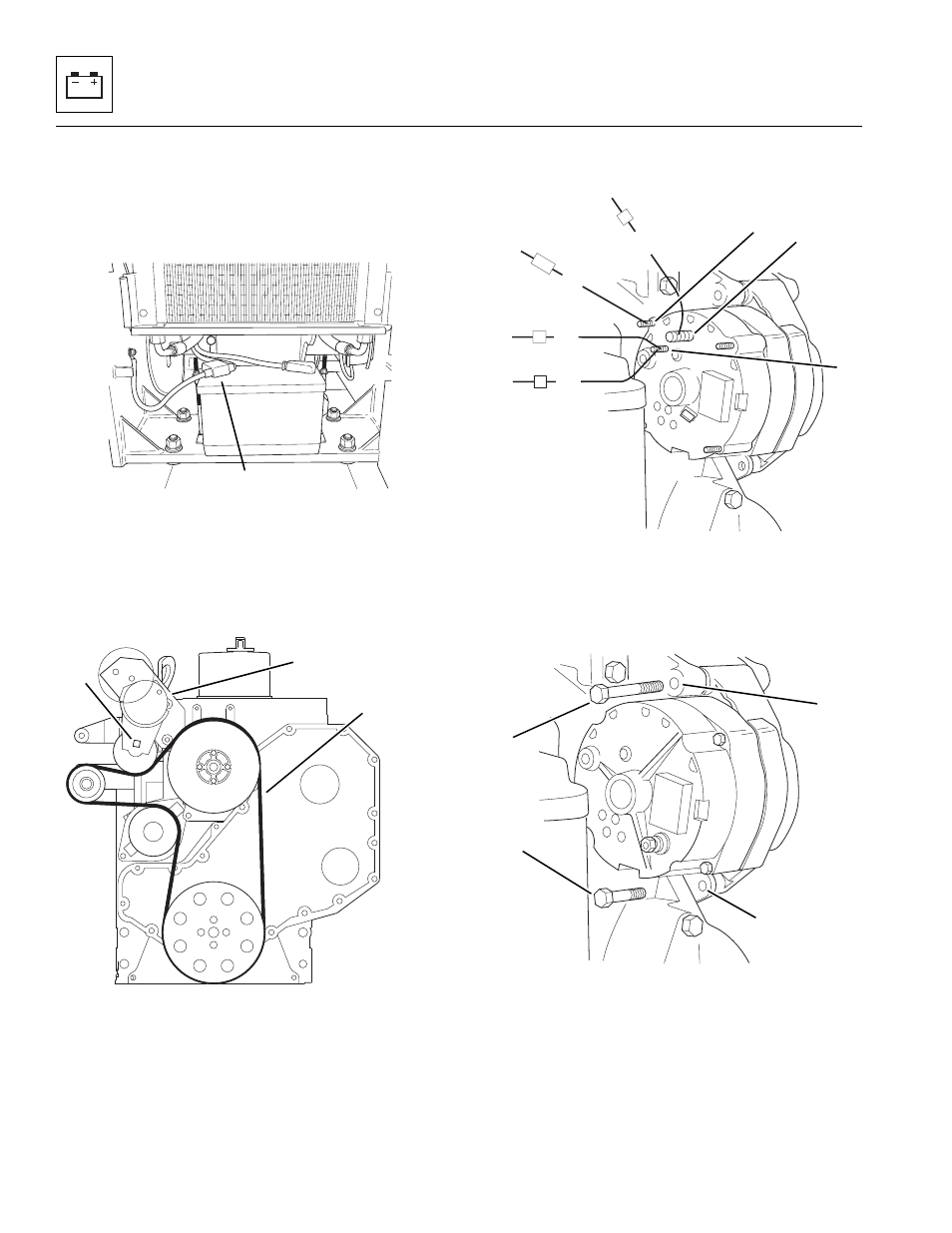

Figure 9-44 Battery Cable Connections
2. Install a 1/2" square drive ratchet into the square
hole (Fig. 9-45, 1) in the tensioner bracket (2). Turn
the ratchet to remove belt tension, and remove the
engine fan belt (3).
Figure 9-45 Alternator Tensioner Bracket
3. Label and disconnect the alternator ground wire
(Fig. 9-46, 1), D+ (2) and B+ (3) wire leads.
Figure 9-46 Alternator Wire Connections
4. Remove the lower mounting capscrew (Fig. 9-47, 1)
securing the alternator to the lower mounting hole
(2) on the engine.
Figure 9-47 Alternator Mounting
5. While supporting the alternator with one hand,
remove the upper (longer) mounting capscrew
(Fig. 9-47, 3) from the upper alternator mount (4).
Remove the alternator from the vehicle.
