8.3 Model 6042 Legacy Origin 7/02
Hydraulic System
8.1 HYDRAULIC COMPONENT
TERMINOLOGY
To understand the safety, operation and service
information presented in this section, it is necessary that
the operator/mechanic be familiar with the name and

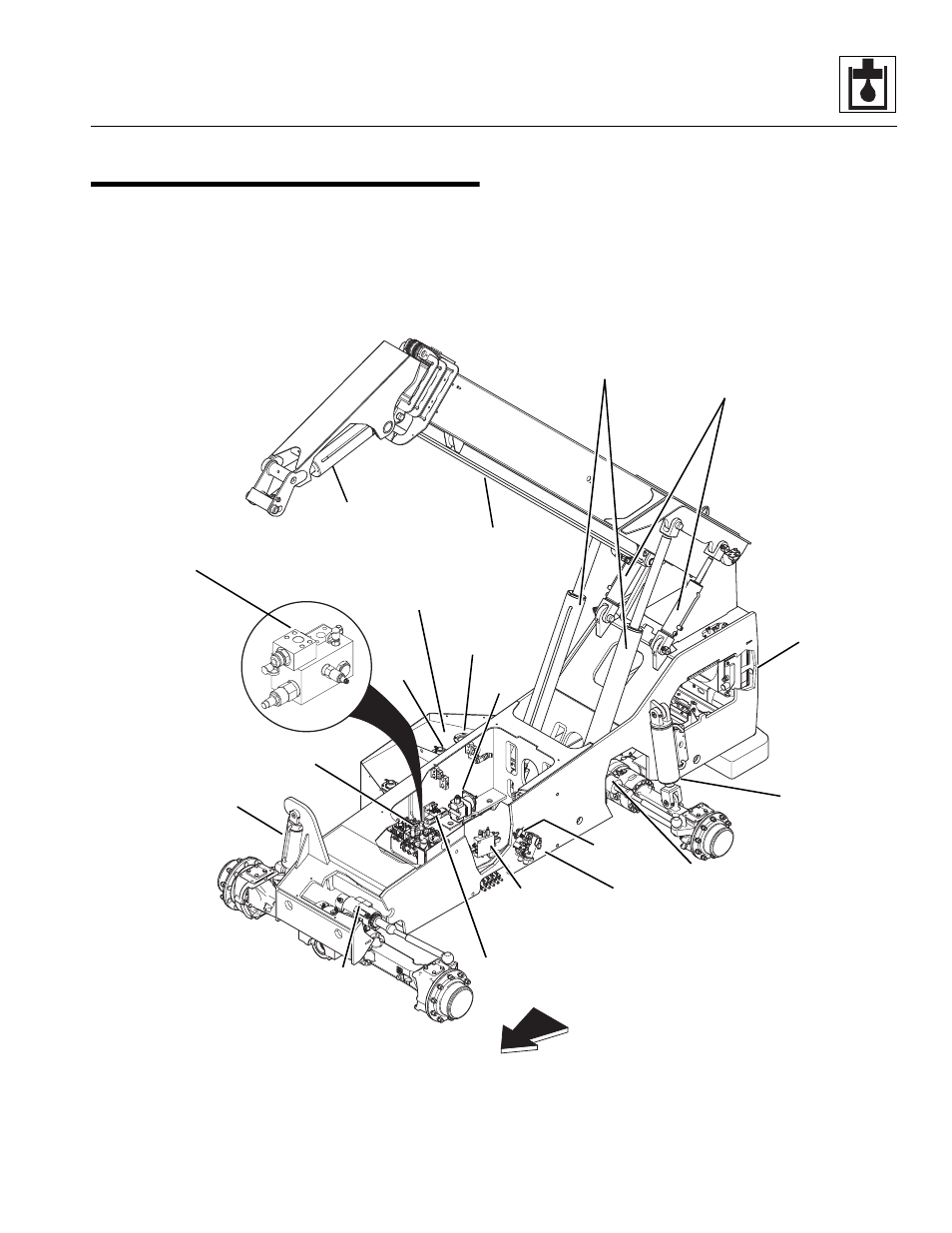

location of the hydraulic components of the vehicle. The
following illustration identifies the components that are
referred to throughout this section.
MA9250
Extend/Retract
Cylinder
Lift/Lower
Cylinders Slave
Cylinders
Attachment
Tilt Cylinder
Secondary
Function
Manifold
Hydraulic
Filter
Fill
Cap
Steer Select
Valve
Hydraulic
Reservoir
Gear
Pump
Frame Sway
Cylinder
Oil
Cooler
Steering
Cylinder
(Rear)
Steering
Unit
Steering
Cylinder
(Front)
Unloader
Valve
Main
Control
Valve
Front
Brake
Valve
Stabilizer
Cylinder
