Electrical System
9.10 Model 6042 Legacy Origin 7/02
Fuses are a one time protection device and must be
replaced each time the circuit is overloaded. To
determine if a fuse is open (Fig. 9 -6, 2), remove the
suspected fuse and examine the element in the fuse for
an open (break). If not broken, also check for continuity
using a DMM or a continuity tester. If the element is open
or continuity is suspect, replace the fuse with one of an
equal current rating.
9.6.2 Fuse and Relay Replacement
Shut off the engine and disconnect the negative (–) battery
cable at the negative (–) battery terminal (Fig. 9 -7, 1)
before checking the electrical system fuses or relays.

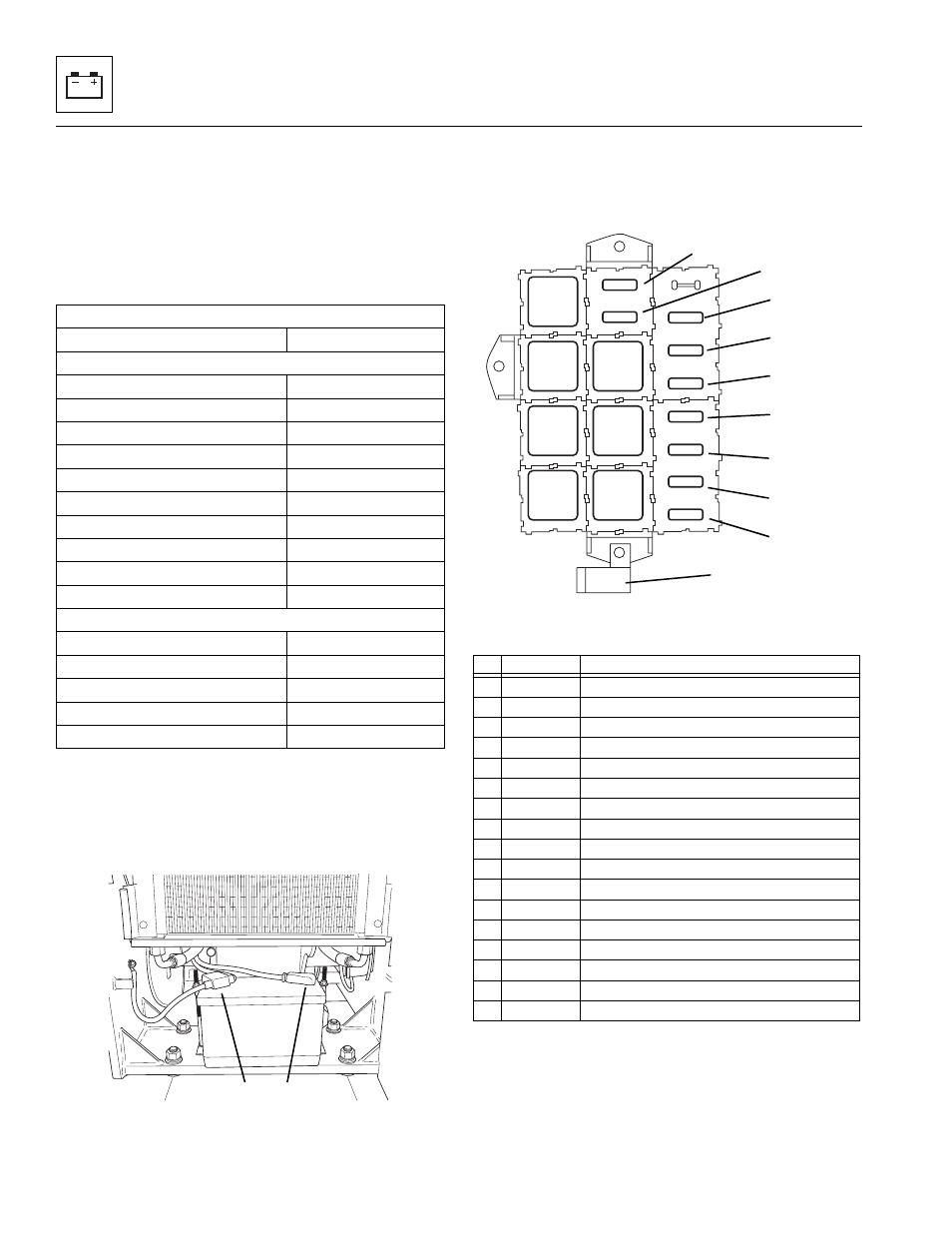

Figure 9-7 Battery Cable Connections
Remove a suspect fuse (Fig. 9-8, 1 - 10) or relay (11 - 17)
from the fuse and relay panel by pulling the fuse or relay
straight out and away. ALWAYS install the correct amp
rated fuse or relay.
Figure 9-8 Fuse and Relay Locations
Fuse Types
Current Rating Amperes Color
Auto Fuses, Mini Fuses
1 Black
2 Gray
3 Violet
5 Tan
7.5 Brown
10 Red
15 Blue
20 Yellow
25 White
30 Green
Maxi Fuses
20 Yellow
30 Light Green
40 Orange or Amber
50 Red
60 Blue
MA8410
1 2
No. Amp/Volt Circuit Protected
1 40 Amp Main
2 7.5 Amp Light Switch Relay
3 10 Amp Instrument Cluster
4 10 Amp Horn/Heater
5 10 Amp Steer Select Switch
6 10 Amp Stabilizer
7 10 Amp Optional Washer/Wiper
8 20 Amp Optional Lights
9 7.5 Amp Transmission
10 40 Amp Optional Road/Work Lights
11 12 Volt Park Brake Disengage Relay
12 12 Volt Neutral Start Relay
13 12 Volt Backup Relay
14 12 Volt Boom Switch Relay
15 12 Volt Stabilizer Lock relay
16 12 Volt Light Switch Relay
17 12 Volt Optional Headlight Switch Relay
7.5
20 10
10
10
10
10
7.5
40
40 OH2991
1
2
3
4
5
6
7
8
9
11
12
13
15
16
17
14
10
