Hydraulic System
8.16 Model 6042 Legacy Origin 7/02
8.8.2 Boom Extend Circuit and Troubleshooting
(Refer to Section 8.8.20, “Boom Extend/Retract Circuit Description” for a more detailed explanation of this circuit.)

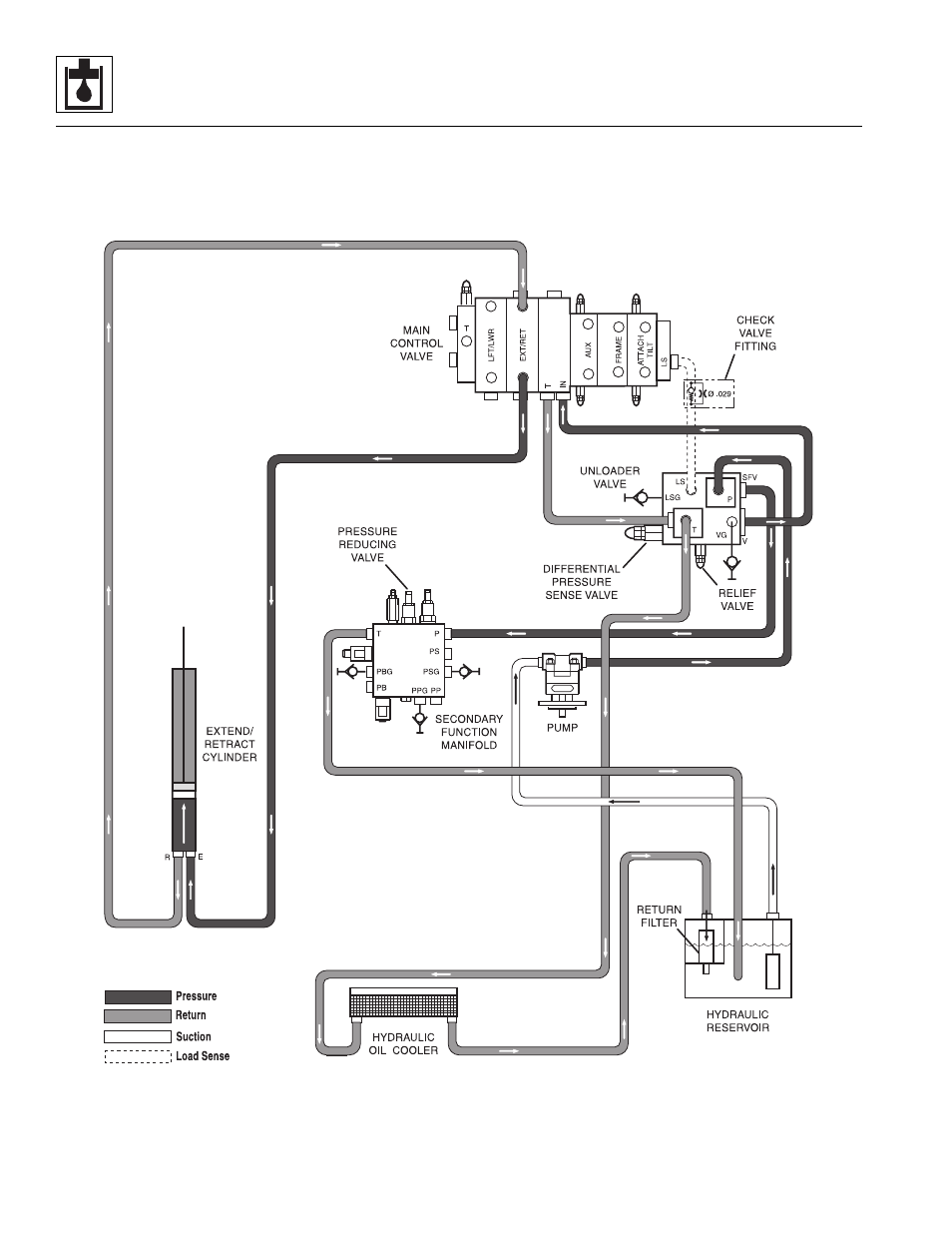

Figure 8-5 Boom Extend Hydraulic Circuit
