SkyTrak 6042 Service Manual - Manual (Page 460)

Electrical System
9.90 Model 6042 Legacy Origin 7/02
d. Transmission Temperature Warning Indicator
This indicator (Fig. 9-51, 1) illuminates when
the transmission fluid temperature exceeds
250° F (121° C). An audible alarm will sound,
and the vehicle should be stopped and the en-
gine allowed to run at high idle for five minutes.
If the light and alarm DO NOT cease after five minutes,
the engine must be shut down to help avoid transmission
damage. For additional information refer to Section 9.9.3,
“Transmission Temperature Warning Indicator
Troubleshooting.”

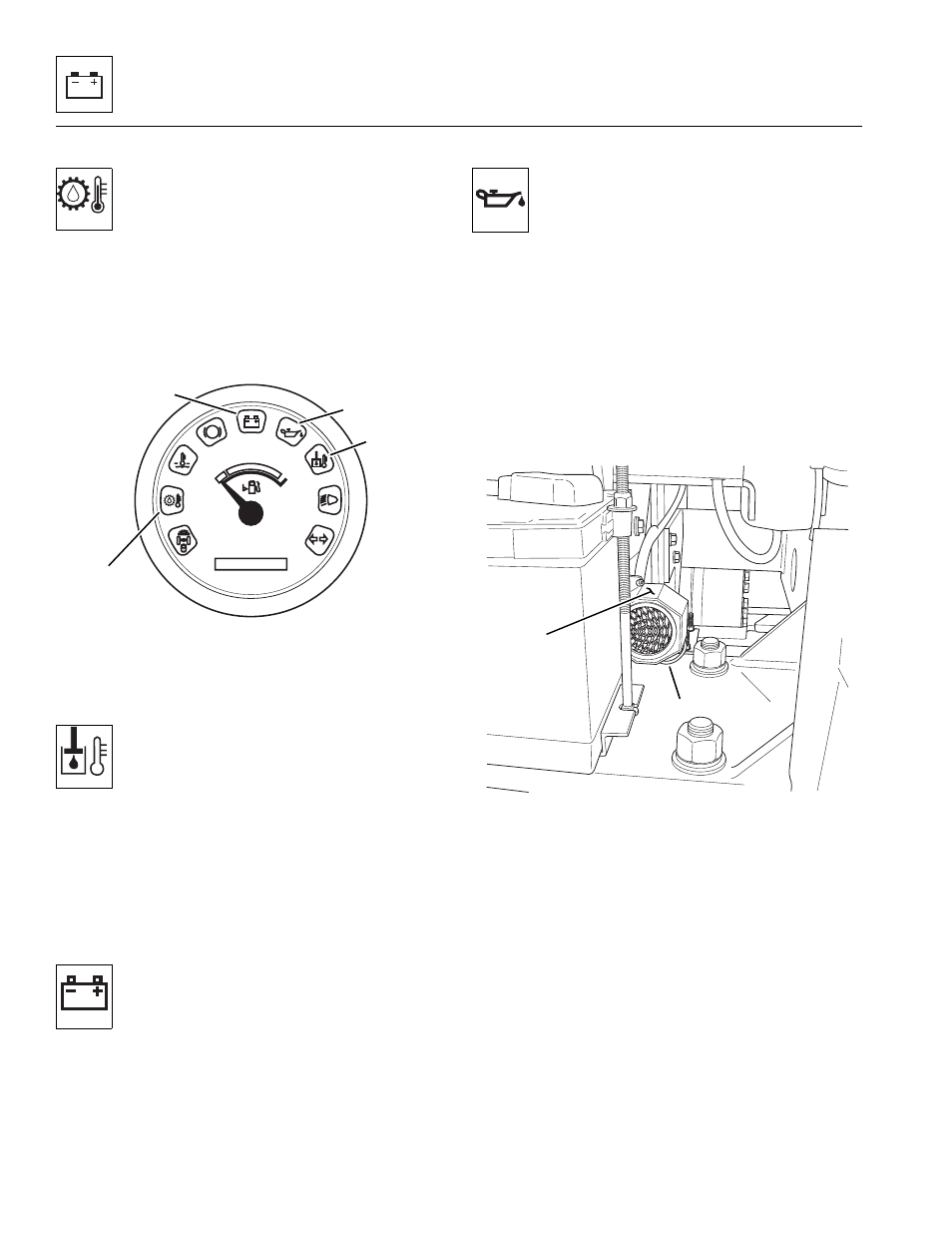

Figure 9-52 Typical Operator’s Instrument Cluster
Warning Indicators
e. Hydraulic Oil Temperature Warning Indicator
This warning light (Fig. 9-51, 2) will activate
when the hydraulic oil temperature is above
195° F (91° C). The vehicle should be stopped
and the engine allowed to idle at high idle for
five minutes.
If the light continues to illuminate after five minutes, the
engine must be shut down to help avoid damage in the
hydraulic system. For additional information refer to
Section 9.9.4, “Hydraulic Oil Temperature Warning
Indicator Troubleshooting.”
f. Alternator Charging Warning Indicator
This light (Fig. 9-51, 3) illuminates when the
charging system is not working properly. Check
and service the alternator and battery as
required. For additional information refer to
Section 9.7.14, “Charging Circuit and Troubleshooting.”
g. Engine Oil Pressure Warning Indicator
This indicator (Fig. 9-51, 4) illuminates and an
audible alarm sounds after 15 seconds if the
engine is not started; this is normal. When the
ignition key switch is turned to the OFF position,
the indicator is reset.
Should the light and alarm begin during engine operation,
the engine oil pressure is too low. The engine must be
shut down as soon as practical to help avoid engine
damage. For additional information refer to Section 9.9.6,
“Engine Oil Pressure Warning Indicator Troubleshooting.”
9.12.2 Back-up Alarm
The back-up alarm (Fig. 9-53, 1) is located at the rear of
the vehicle.
Figure 9-53 Back-up Alarm Location
When the transmission shift control switch (travel select
lever) is shifted to the (R) REVERSE position, the back-
up alarm will automatically sound.
Place the travel select lever in (R) REVERSE to test the
back-up alarm. The back-up alarm must not sound when
the travel select lever is in (N) NEUTRAL or (F)
FORWARD. Also, with the ignition key switch in the RUN
position, the back-up alarm will sound when the travel
select lever is shifted into the (R) REVERSE position.
OH25302
0000 00
P
OH1810
4
1
2
3
MA8290
OH25602
OH25502
MA7970
1
3
2
