Electrical System
9.98 Model 6042 Legacy Origin 7/02
9.13.3 Roof Wiper Switch

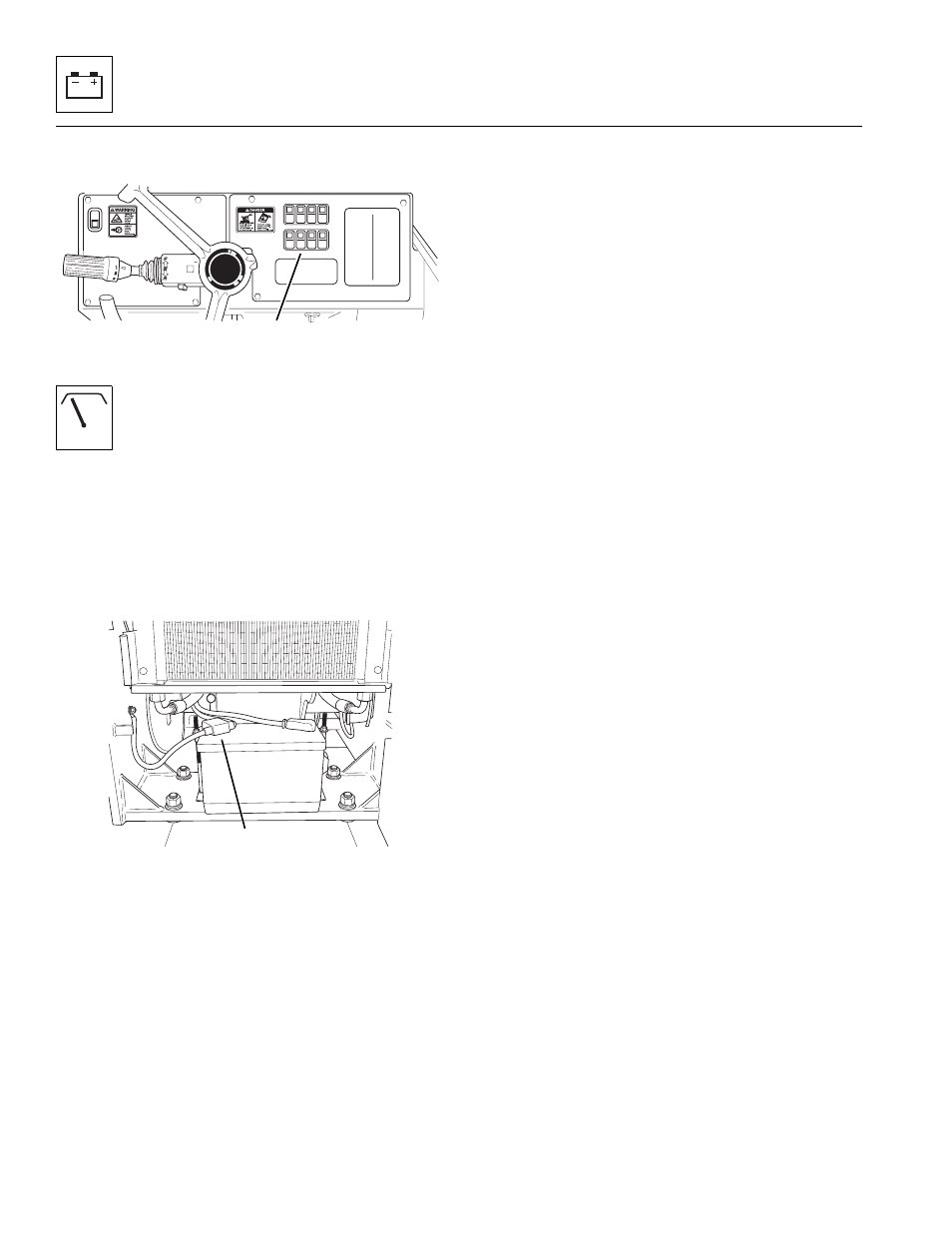

Figure 9-70 Roof Wiper Switch Location
The roof wiper switch (Fig. 9 -70, 1) is supplied
on enclosed cab models only. The roof wiper
switch is located on the dash to the right of the
steering column and is pressed or “snapped”
into a rectangular switch bezel. It is a three-position
switch providing OFF (upper), center (not used) and
lower (one speed) positions.
a. Removal
1. Disconnect the negative (–) battery cable at the
negative (–) battery terminal (Fig. 9-71, 1).
Figure 9-71 Battery Cable Connections
2. Carefully pry the roof wiper switch (Fig. 9-70, 1),
bezel and wiring out of the mounting hole.
3. Disconnect the roof wiper switch from the cab
harness connector.
b. Disassembly
DO NOT disassemble the switch. The switch is not
serviceable. Replace switch if found to be defective.
c. Cleaning and Drying
Without submerging the switch, clean the switch with an
approved solvent and dry with a clean, lint-free cloth.
d. Inspection and Replacement
1. Inspect the switch terminals for continuity with the
switch in the OFF and ON positions. (Refer to
Section 9.7.19, “Roof Windshield Wiper Circuit and
Troubleshooting (Option).”)
2. Replace the switch if it fails any of the tests in Step 1.
e. Installation and Testing
1. Connect the roof wiper switch to the cab harness
connector.
2. Position the switch over the rectangular switch bezel
and snap into position.
3. Connect negative (–) battery cable at the negative
battery terminal (Fig. 9-71, 1).
4. Turn the ignition key switch to the RUN position and
test the roof wiper functions.
1
OH18502
OH19002
MA8410
1
