9.93 Model 6042 Legacy Origin 7/02
Electrical System

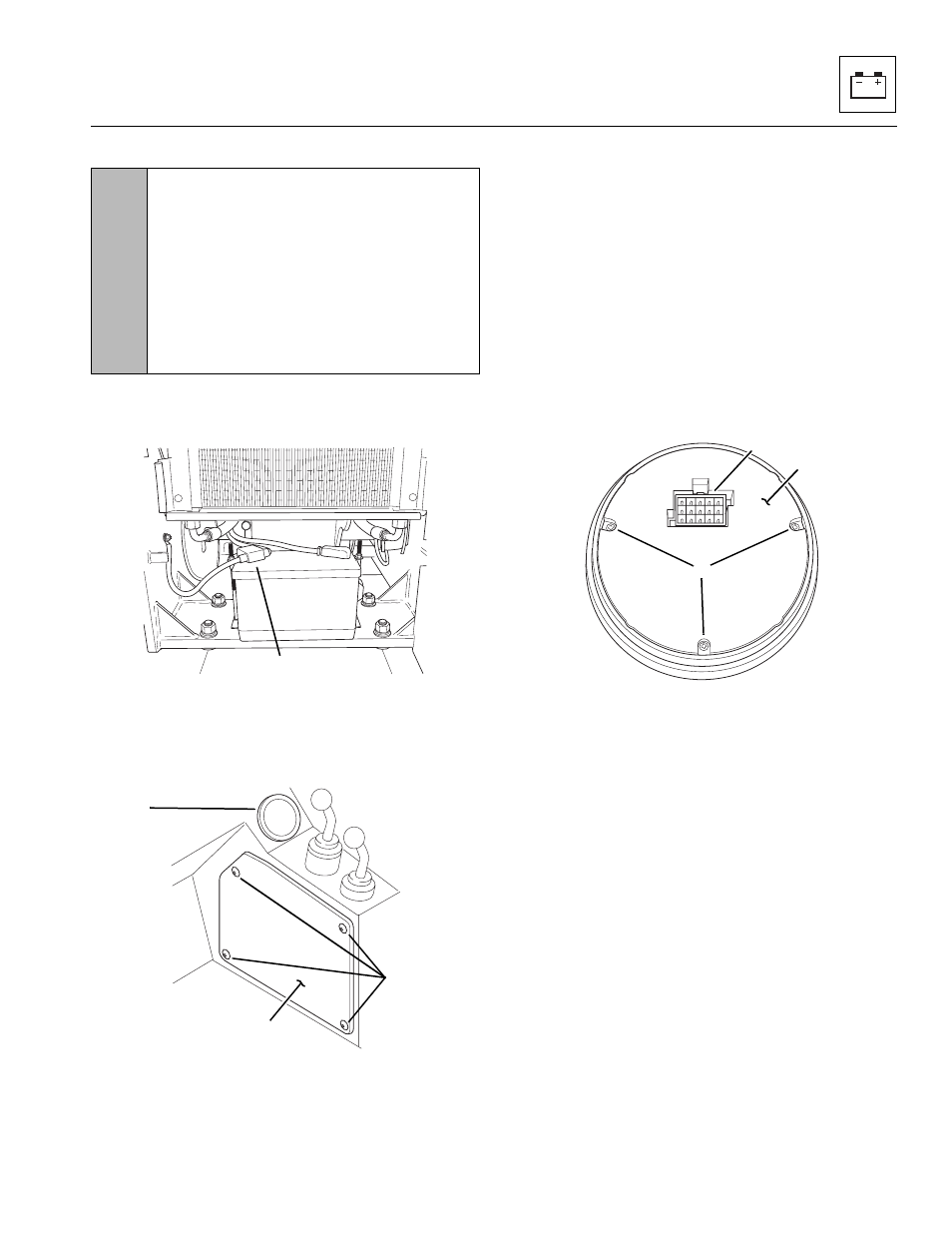

d. Operator’s Instrument Cluster Removal
1. Disconnect the negative (–) battery cable at its
battery terminal (Fig. 9-57, 1).
Figure 9- 57 Battery Cable Connections
2. Remove the four fasteners (Fig. 9-58, 1) securing the
right side access panel (2).
Figure 9-58 Remove the Right Side Console Access Panel
3. Unscrew the locking ring from below the instrument
cluster (Fig. 9-58, 3). Pull the instrument cluster up
and away from the cut-out, and unplug the harness
connector.
e. Operator’s Instrument Cluster Bulb Removal
1. Disconnect the negative (–) battery cable at its
battery terminal (Fig. 9-57, 1).
2. Unscrew the plastic ring retainer from the back of the
instrument cluster. Disconnect the harness plug
connector from the back of the instrument cluster
(Fig. 9-59, 3). Remove three screws, (1) securing
the instrument cluster rear access plate (2). Remove
the cover plate.
Figure 9-59 Instrument Cluster Back Cover Removal
CAUTION:
Static electricity can cause
damage to the operator’s instrument cluster.
Avoid any manner of touching (hands, tools,
etc.) the printed circuit boards and terminals.
Disconnect the negative (–) battery cable at its
battery terminal (Fig. 9-57, 1) before beginning
this procedure. Failure to comply can result in
damage to the operator’s instrument cluster
and malfunction of the instruments and
indicator lights.
MA8410
1
OH2430
1
3
2
MA7930
2
1
3
