Axles, Drive Shafts, Wheels and Tires
5.2
Model 6042 Legacy
Origin 7/02
5.1
AXLE, DRIVE SHAFT AND WHEEL
COMPONENT TERMINOLOGY
To understand the safety, operation and maintenance
information presented in this section, it is necessary that
the operator/mechanic be familiar with the names and
locations of the major assemblies of the axles, drive shafts,

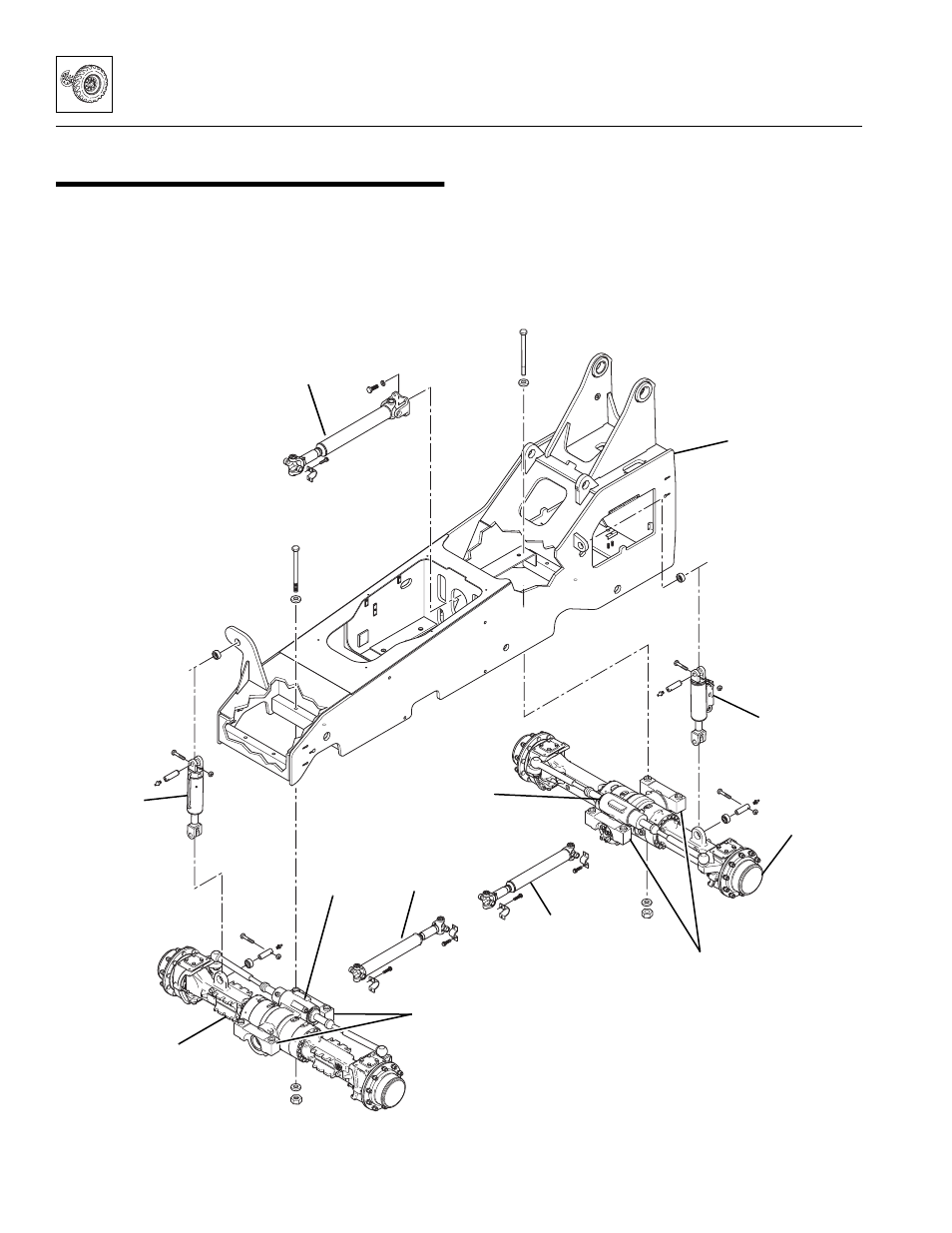

wheel and tires. The following illustration identifies the
components that are referred to throughout this section.
MA9180
Frame Sway
Cylinder
Vehicle
Frame
Rear Axle
Assembly
Steering
Cylinder
(Front)
Front Axle
Assembly
Steering
Cylinder
(Rear)
Support
Trunnions
Support
Trunnions
Engine-to-Transmission
Drive Shaft
Rear Drive
Shaft
Front Drive
Shaft
Stabilizer
Cylinder
