Boom
3.20 Model 6042 Legacy Origin 7/02

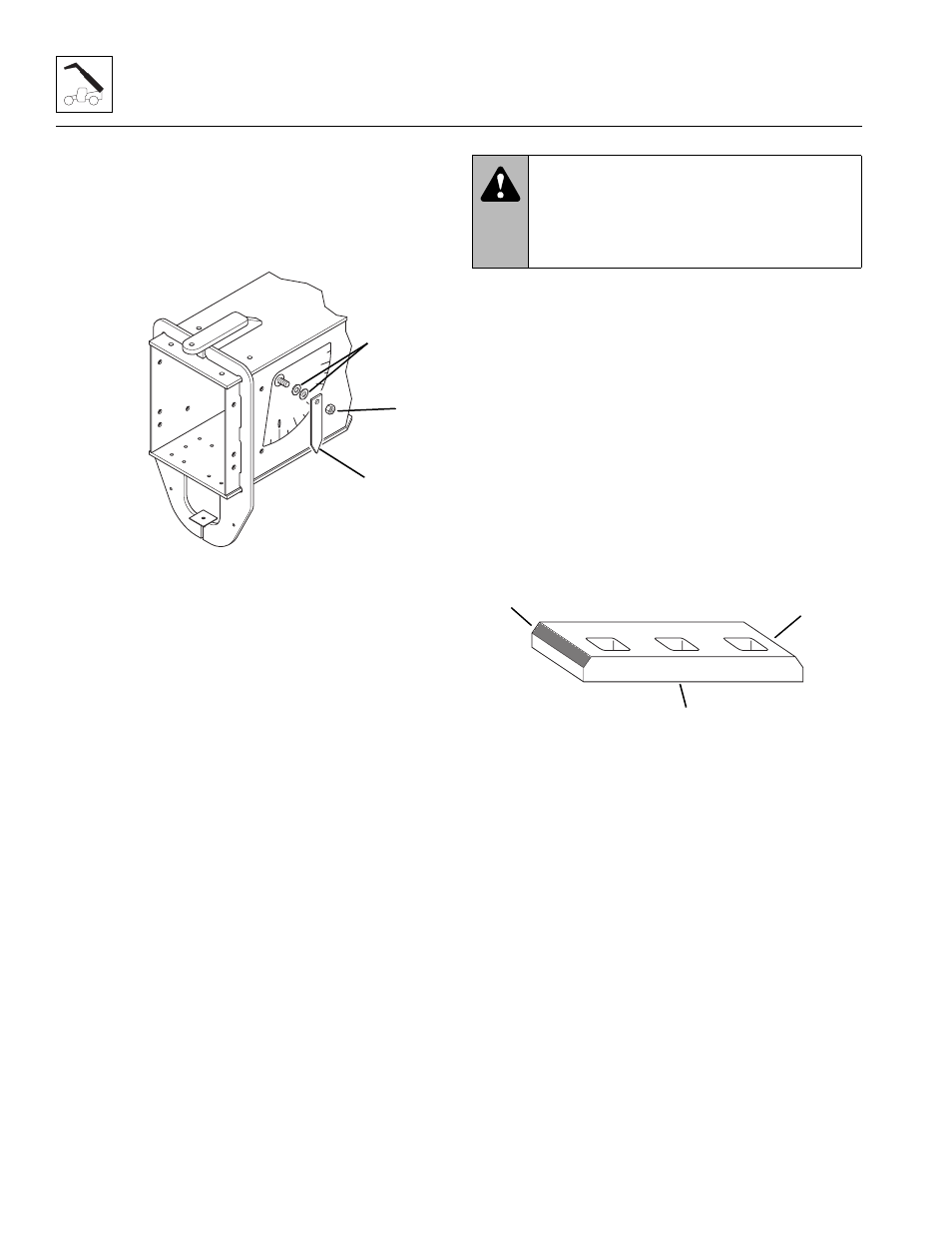

35. If replacing the outer boom assembly, on the left side
of the outer boom, remove the locknut (Fig. 3-47, 1),
angle indicator (2) and flat washers (3) from the weld
stud. Save the angle indicator and all the hardware
for reassembly. If not replacing the boom section,
the angle indicator can remain in place.
Figure 3-47 Angle Indicator
36. Inspect the boom and welds. Contact the local
OmniQuip Authorized Service Center (ASC) or the
OmniQuip Service Department if structural damage
is detected.
37. Inspect hoses, hardware, wear pads, mounting
points, chains and other components visible with the
outer boom removed. Replace if damaged. Refer to
Section 3.4.1, “Boom Chain Inspection,” and Section
3.5.1, “Boom Wear Pad Replacement.”
38. Inspect all wear pads (Fig. 3-48, 1) for wear. If the,
angled cut, wear indicators (2) on the ends of the
wear pads are visible, the wear pads can be reused.
If the pads show uneven wear (front to back), they
should be replaced. Replace pads as set if worn or
damaged.
Figure 3-48 Wear Pad Wear Indicators
MA9980
1
3
2
WARNING:
NEVER weld or drill the
boom. The structural integrity of the boom will
be impaired if subjected to any repair involving
welding or drilling. Failure to comply can result
in death or serious personal injury.
MA2071 1
2
2
