Airborne Enterprise CLI Reference Manual 45
The network infrastructure will show the MAC and IP address of the modules
wireless interface as the network presence, as a consequence of this all traffic
will be identified as being from or to this address.

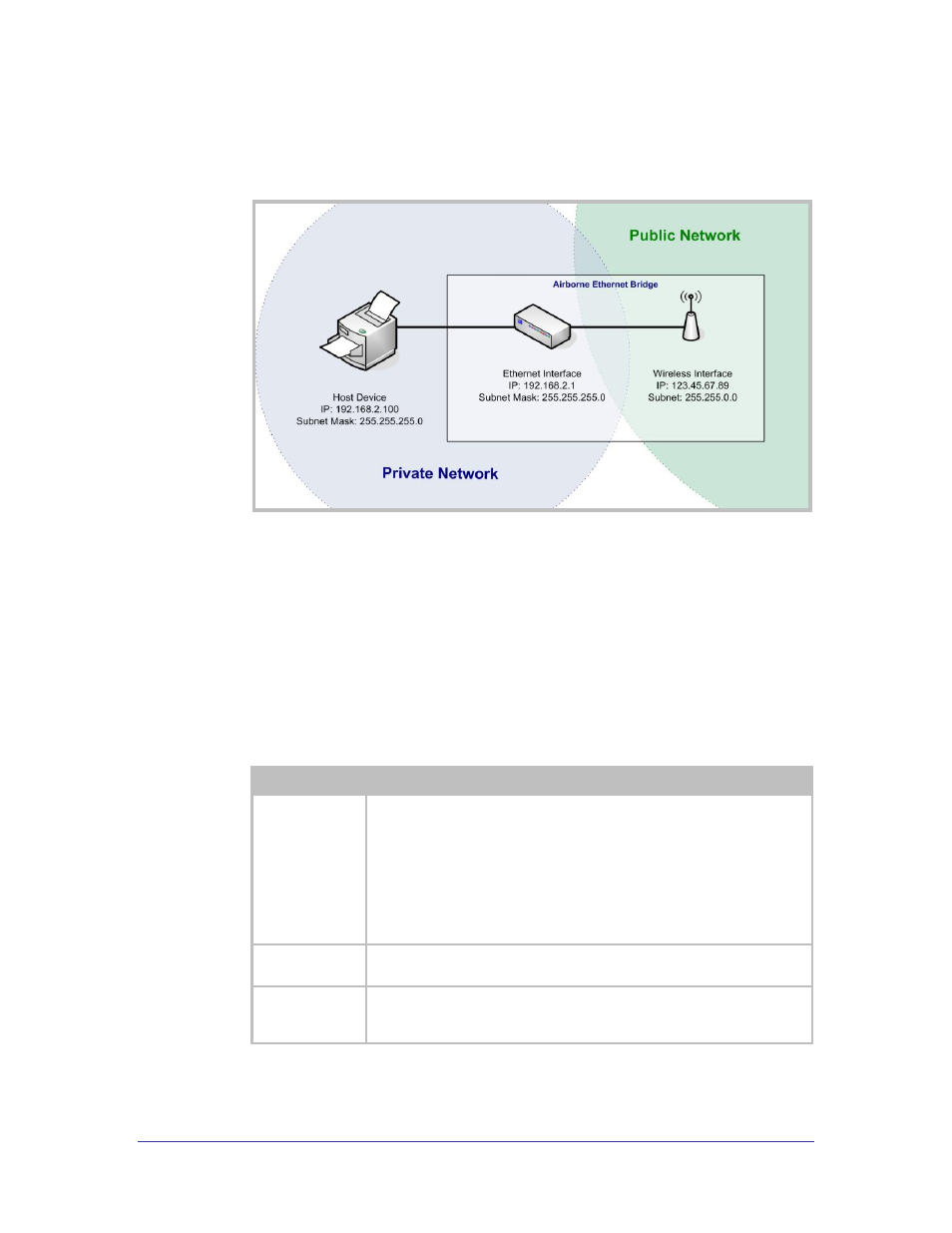

Figure 6 - Airborne Ethernet Bridge IP Configuration
The public network interface supports the Airborne ™ discovery protocol and will
respond to discovery requests issued on the public network. Discovery protocol
requests are not forwarded to the private network.
9.2 Private Network Interface
The private network interface is on the Ethernet port of the module. The interface
supports multiple Ethernet clients with either a static or DHCP sourced IP
address. This interface needs minimal configuration and requires the parameters
in Table 4 to be configured.
Table 4 - Private Network Interface Configuration
Command Description
eth-ip
This is the base IP address of the private network DHCP server address pool,
and is the first IP address the DHCP server will lease to a client on the private
network when the client is using DHCP. It is also the default private network
IP address used for forwarding traffic from the public network.
This address must match the private network client IP address when a single
client is attached and is using a static IP address. If this does not match the
address, traffic from the public network will NOT be routed correctly.
Traffic originating from Ethernet clients will be routed correctly.
eth-subnet
This is the subnet mask the DHCP server will provide to the client when the
client is using DHCP.
eth-gateway
This is the IP address of the Ethernet Interface on the Airborne Ethernet
Bridge and is the target address for communications between the Ethernet
client and the Airborne Bridge.
