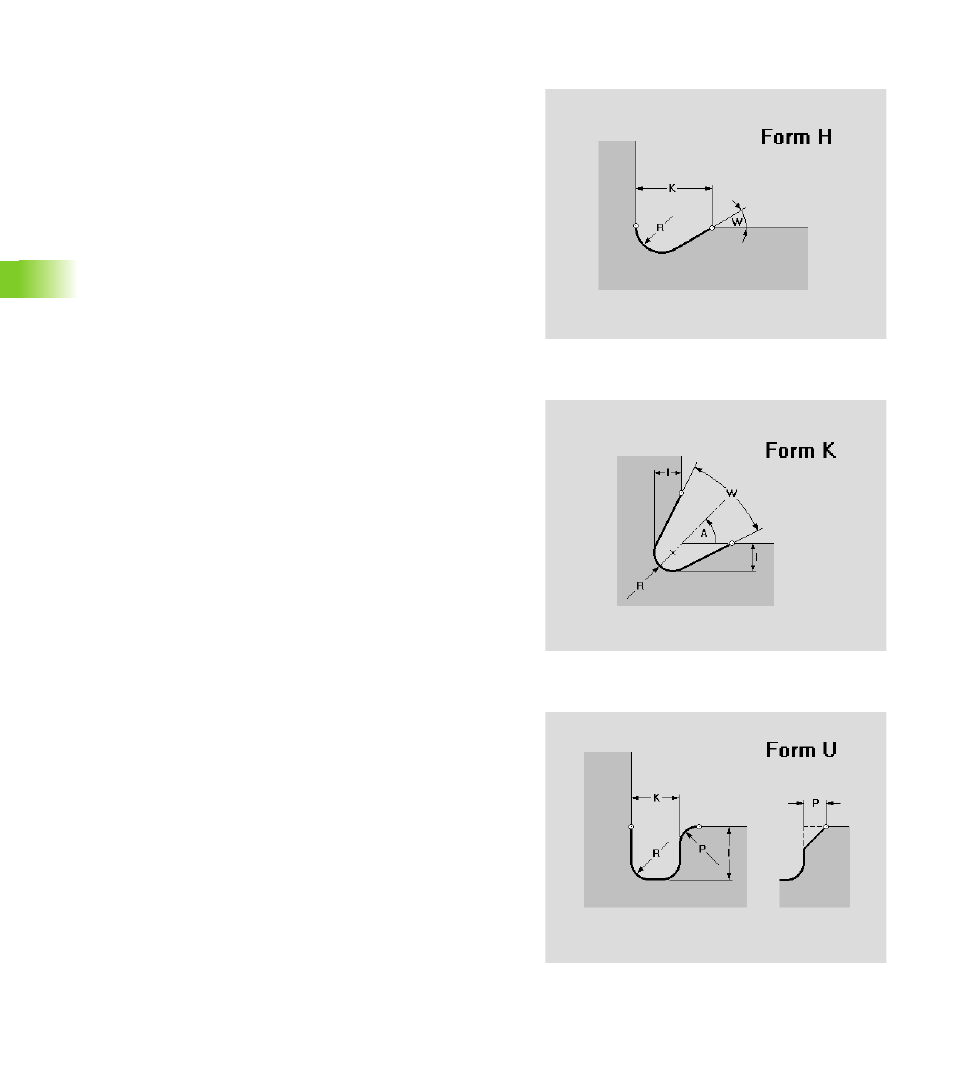

Undercut type H
This form element defines an undercut type H.
Undercut type K
This form element defines an undercut type K.
Undercut type U
This form element defines an undercut type U.
Parameters
K Undercut length
I Undercut depth (radius)
R Undercut radius
W Approach angle
Parameters
I Undercut depth
R Undercut radius
W Angular length
A Approach angle, angle to longitudinal axis (default: 45°)
Parameters
K Undercut length (undercut width)
I Undercut depth (radius)
R Undercut radius in both corners of the recess (default: 0)
Corner:
„ No: No chamfer/rounding
„ Chamfer: Chamfered edge
„ Rounding: Rounded corner
P Width of chamfer / radius of rounding
