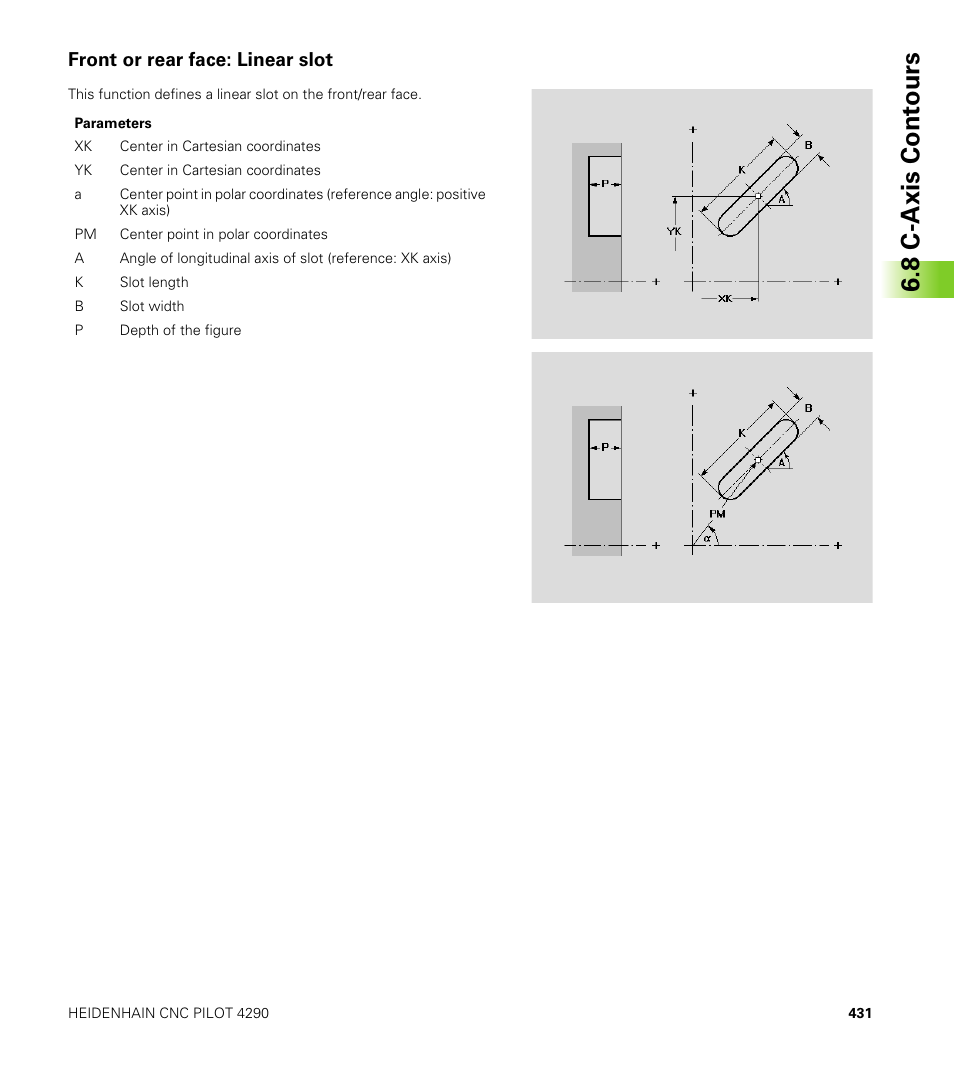

Front or rear face: linear slot, 8 c-axis cont ours – HEIDENHAIN CNC Pilot 4290 V7.1 User Manual
Page 431
