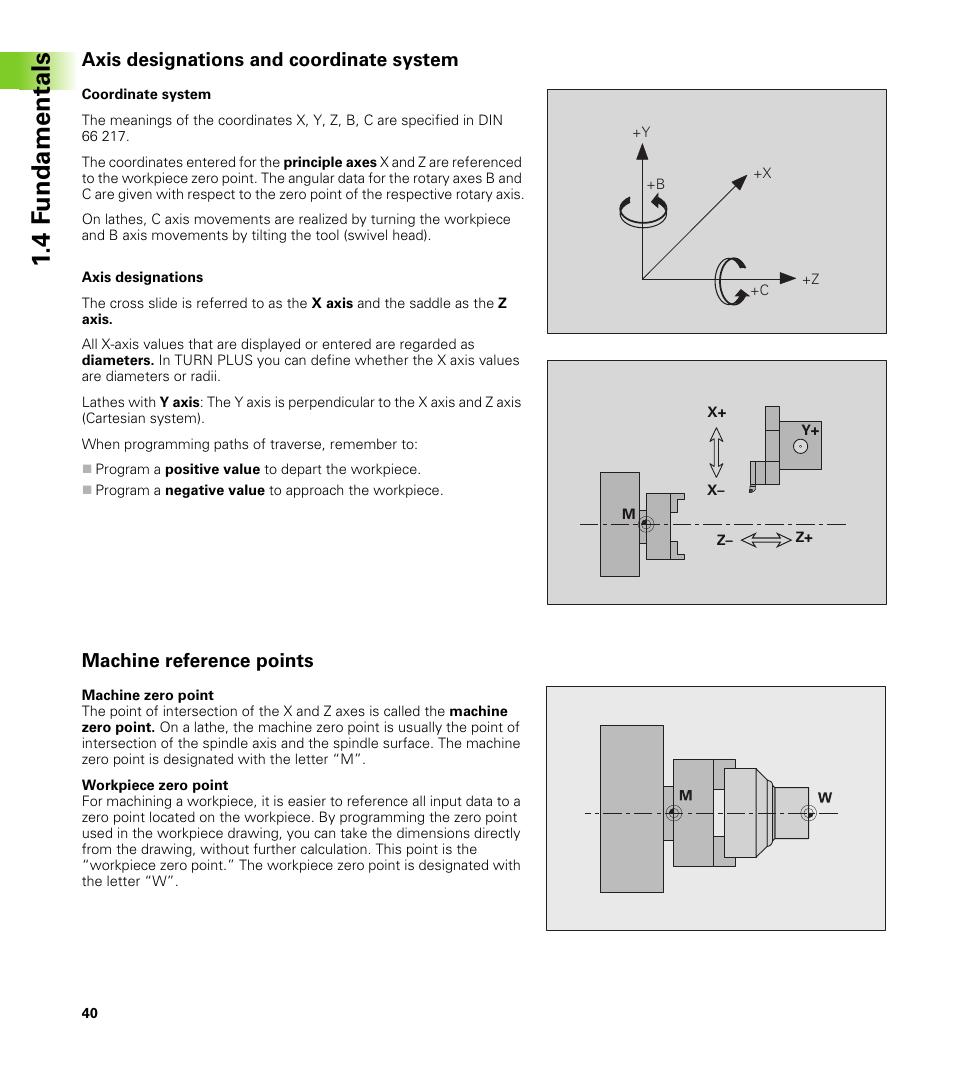

Axis designations and coordinate system, Machine reference points, 4 f undamentals – HEIDENHAIN CNC Pilot 4290 V7.1 User Manual
Page 40
