9.2.5 8-Bit Timer/8-Bit Capture Mode

When the CCF[1:0] bits are configured to a state other than 00b, the edge-capture mode is enabled for the primary timer (T2H). The

secondary timer (T2L) always remains in the timer/compare mode and does not support any capture functionality. The capture con-

trols for the 8-bit mode are identical to those specified for the 16-bit mode, however they apply only to the upper timer, T2H.

One obvious difference is that the secondary timer (T2L), operable only in compare mode, can be used to generate a PWM output with

valid T2OE[1] and T2POL[1] controls, while the primary timer is operating in capture mode.

9.2.6 8-Bit Timer/8-Bit Counter

Just as in the 16-bit mode, setting the C/T2 bit to logic 1 enables the external T2P pin to function as a counter input. The edges that

are counted are determined by the CCF[1:0] bits. The counter mode of operation applies only to the primary timer/counter (T2H). In a

similar fashion to the 16-bit counter mode, when an overflow occurs, an auto-reload of T2RH occurs and the TF2 flag is set. The TCC2

flag is also set on a compare match between the T2H counter and the T2CH compare register (except for the case where T2CH is out-

side the T2RH to 0xFFh counting range. The secondary timer (T2L) always continues to operate in 8-bit compare mode. Just as in the

above split 8-bit timer/8-bit capture mode, this allows the secondary timer (T2L) to function in the PWM output capacity if a T2PB pin

is provided. The T2POL[1] control still applies to the 8-bit T2L PWM output when T2OE[1] = 1.

9.2.7 Timer 2 Input Clock Selection

Figure 9-3 shows the Timer 2 clock source. The Timer 2 input clock is selected by the T2CI bit while the clock prescale is determined

by the T2DIV bits in the T2CFG register. Note that when T2CI is configured to 1, the alternate clock source (32kHz) is sampled by the

current system clock selection. The maximum sampleable alternate clock frequency is (system clock/4).

T2CI

32kHz

T2DIV [2:0]

SYSTEM CLOCK

T2CLK

EDGE DETECTION

DIVIDE-BY-N

PRESCALE

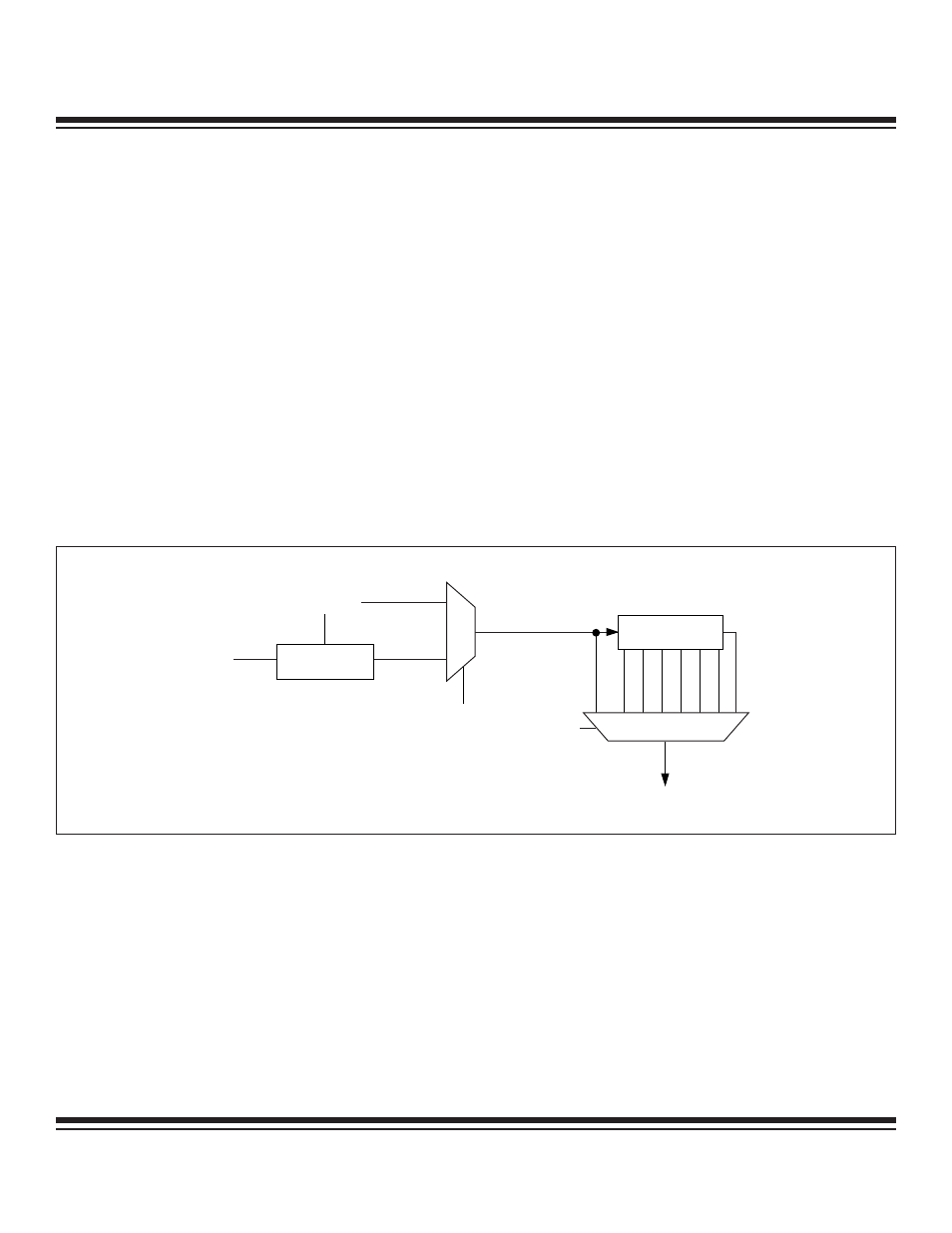

Figure 9-3. Timer 2 Clock
