18-28
MAXQ Family User’s Guide
(MAXQ10 Version) Rotate Right Accumulator
RR/RRC Carry Flag (Ex/In)clusive
Description: Rotates the active accumulator right by a single bit position. The RR instruction circulates the lsb of the accumula-
tor (bit 0) back to the msb (bit 7) while the RRC instruction includes the Carry (C) flag in the circular right shift.
Status Flags: C (for RRC only), S, Z (for RRC only)

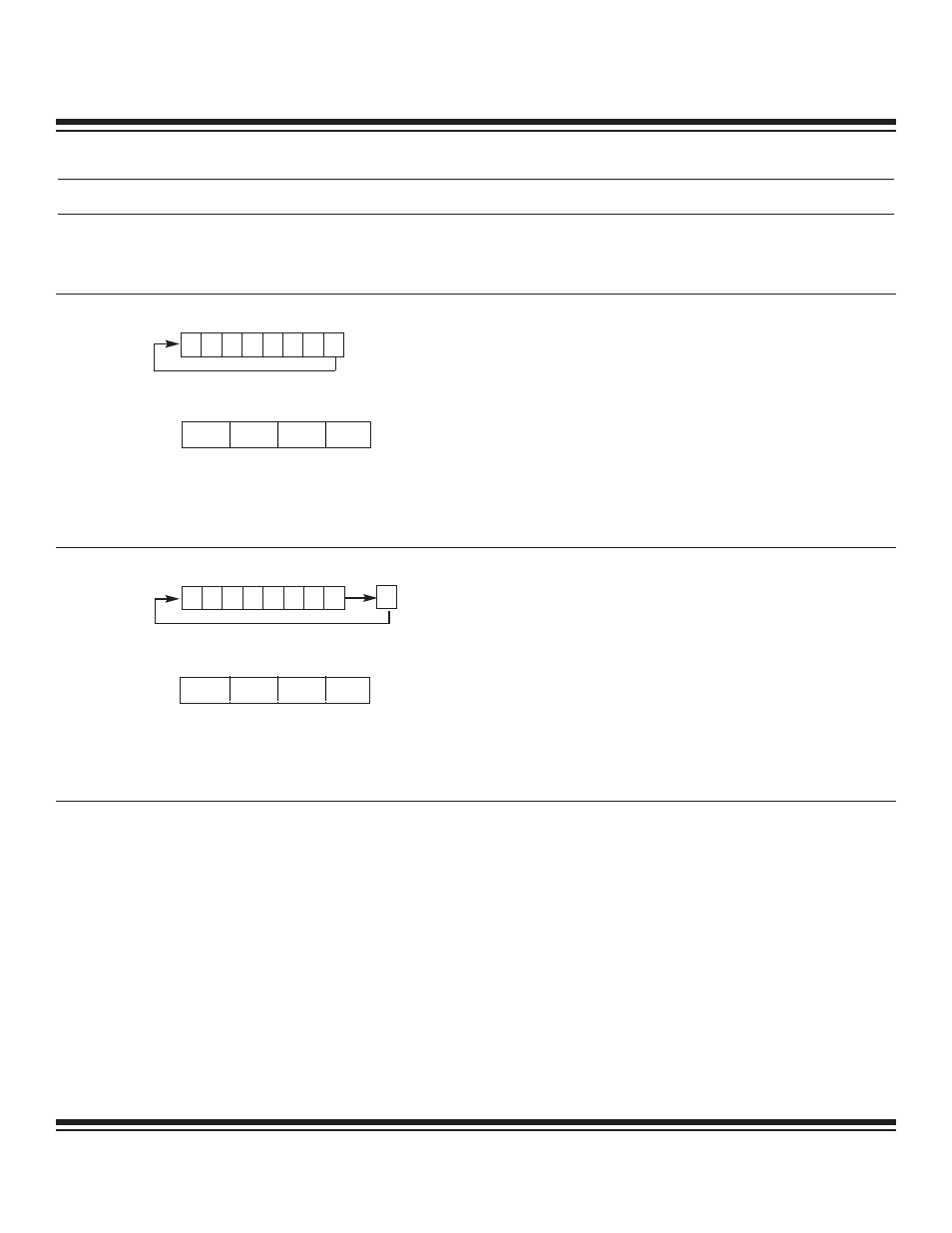

RR Operation: 7 Active Acc (Acc) 0
Acc.[6:0] ← Acc.[7:1]; Acc.7 ← Acc.0
Encoding: 15 0
Example(s): ; Acc = 45h, S=1, Z=0
RR ; Acc = A2h, S=1, Z=0
RR ; Acc = 51h, S=0, Z=0
RRC Operation: 7 Active Acc (Acc) 0 Carry Flag
Acc.7 ← C; C ← Acc.0
Encoding: 15 0
Example(s): ; Acc = 45h, C=1, S=1, Z=0
RRC ; Acc = A2h, C=1, S=1, Z=0
RRC ; Acc = D1h, C=0, S=1, Z=0
1000 1010 1100 1010
1000 1010 1101 1010
Maxim Integrated
