5 capture/reload control, 2 16-bit timer: capture, 1 output enables – Maxim Integrated MAXQ Family User Manual

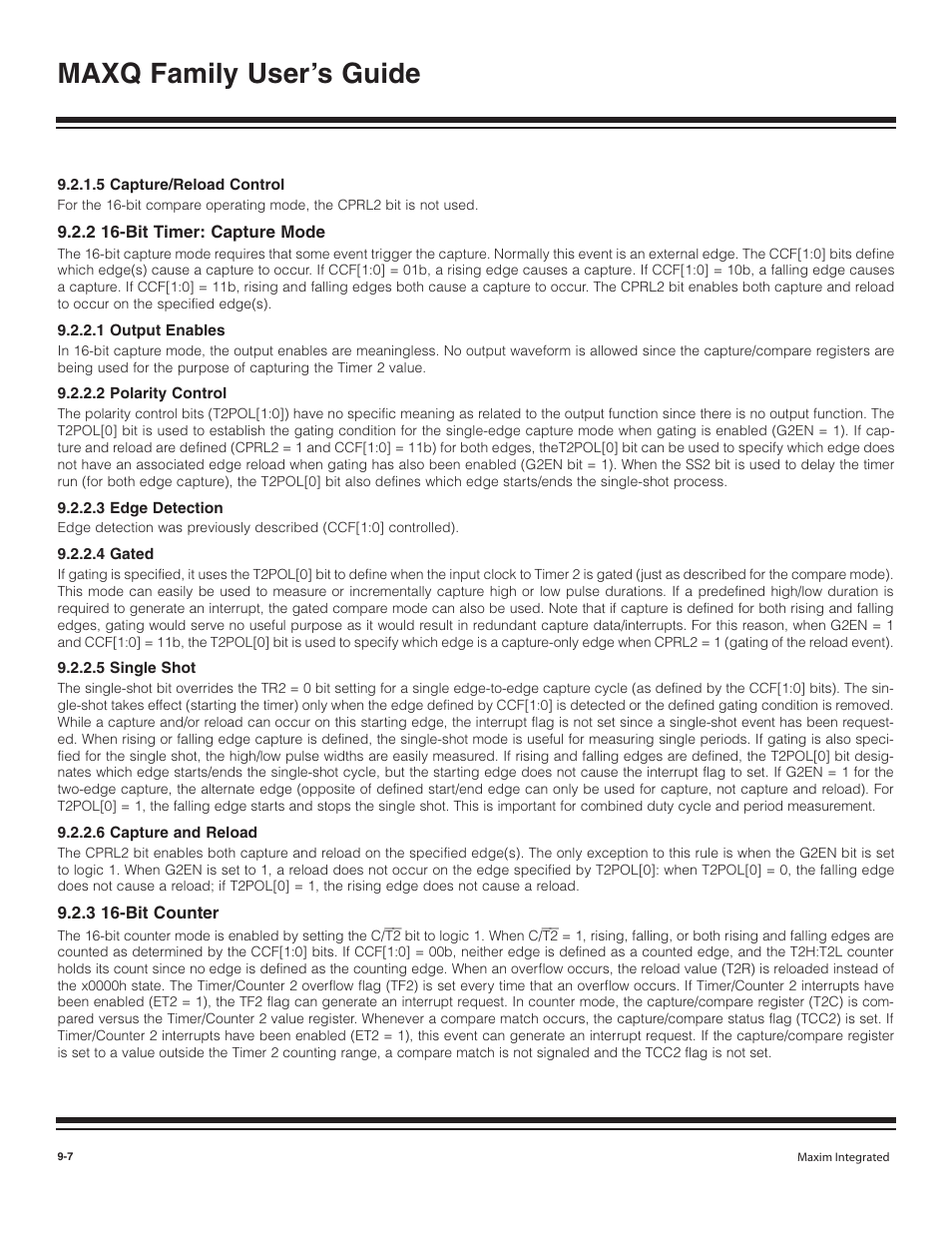

Page 85: 2 polarity control, 3 edge detection, 4 gated, 5 single shot, 6 capture and reload, 3 16-bit counter, 5 capture/reload control -7
