Rockwell Automation IASIMP Computer Numerical Control (CNC) Machining Accelerator Toolkit Quick Start User Manual
Page 98
98
Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012
Chapter 4
GuardLogix Configuration

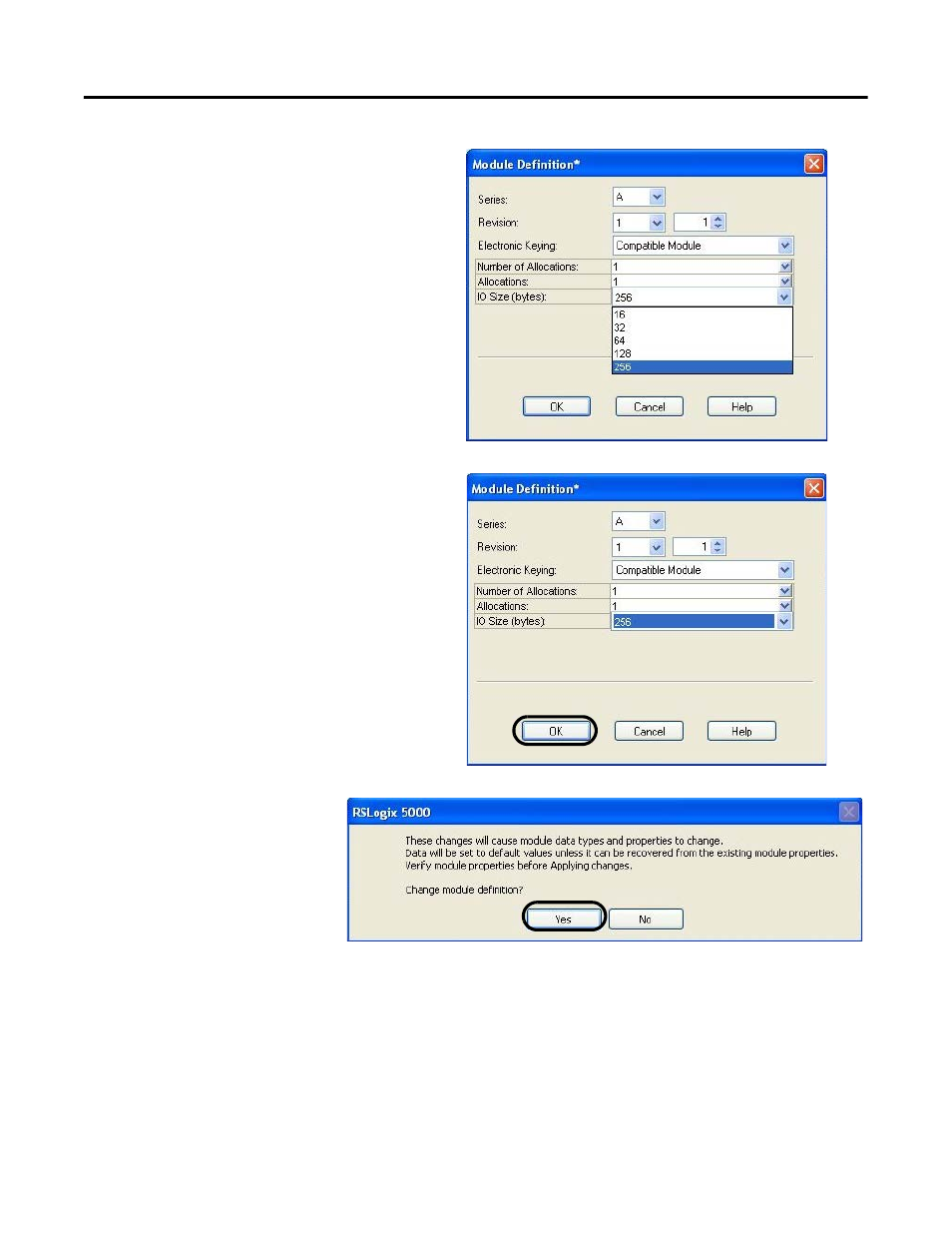

d. Set the IO Size for your CNC
communication.
For the CNC Work Cell application
example, the IO Size (bytes) is set to
256 bytes.
e. Click OK to close the Module
Definition dialog box.
f. Click Yes to accept the
changes.
