Rockwell Automation IASIMP Computer Numerical Control (CNC) Machining Accelerator Toolkit Quick Start User Manual
Page 163
Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012
163
FactoryTalk View ME Configuration
Chapter 5
2.
Launch your FactoryTalk View Studio
software and open your existing
application file.
For this example, the InstantFizz_ME
application file is opened.
3.

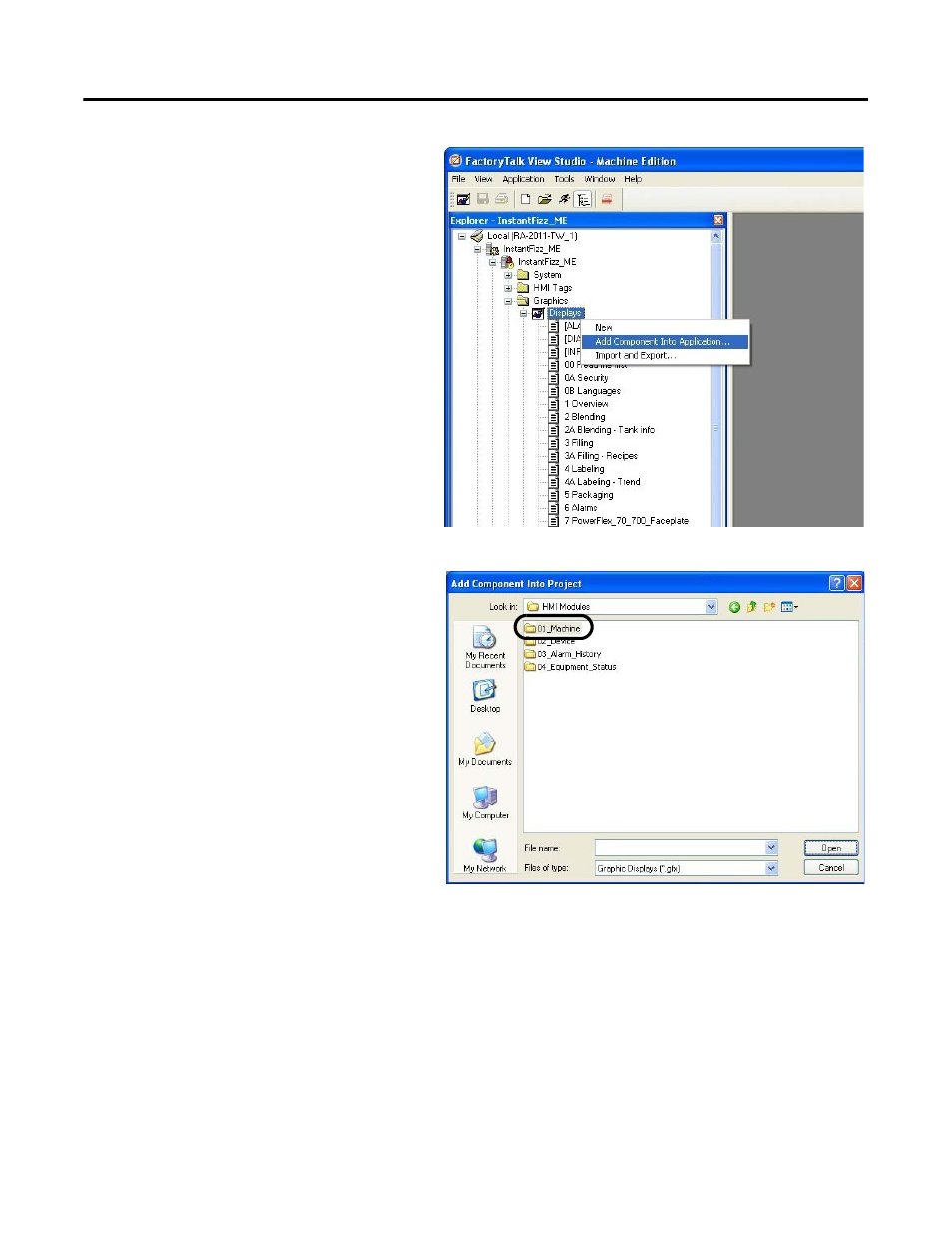

Right-click Displays within Graphics
folder and choose Add Component Into
Application.
4.
Navigate to the HMI Modules folder
within the toolkit’s files folder.
The file path is C:\Program Files\
RA_Simplification\CMAT\A-Files\
5-HMI\ME\HMI Modules\
01_Machine.
5.
Select the folder representing the type of
the first faceplate you want to add.
For this example, the 01_Machine folder
was selected for the
PVP1000_Startup_Faceplate file.
