Rockwell Automation IASIMP Computer Numerical Control (CNC) Machining Accelerator Toolkit Quick Start User Manual
Page 27
Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012
27
Architecture and Hardware Selection
Chapter 1
4.

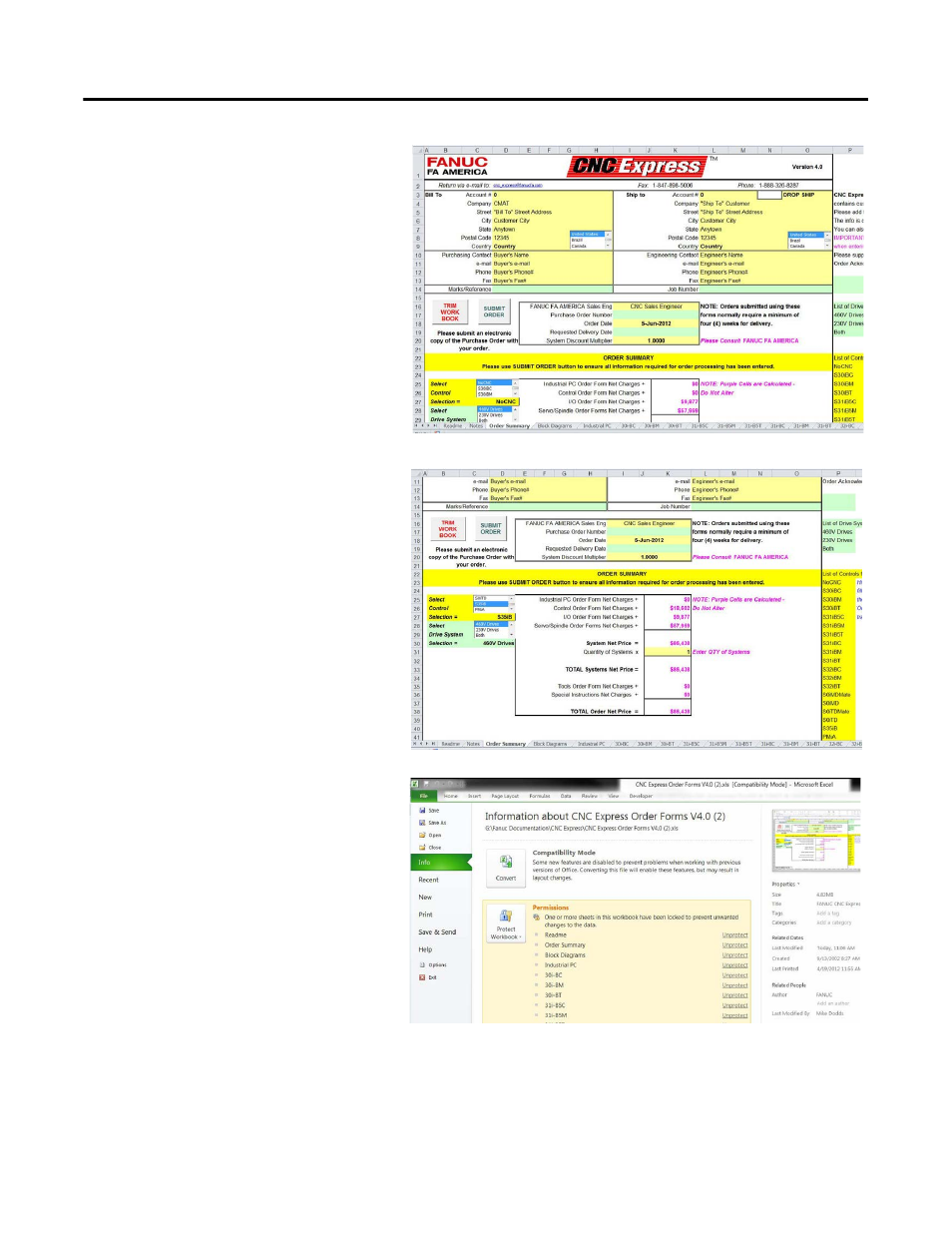

Review the complete CNC
configuration.
a. Use the tabs near the bottom of the
spreadsheet to navigate to and click
the Summary tab.
The Summary tab is now displayed.
b. Use the cells in the spreadsheet to
navigate to and select the
appropriate CNC control, and drive
system selection. When the system
is configured properly, the pricing is
shown. If the configured solution is
not correct, fix conflicts are
displayed in the value fields.
The CNC BOM configuration is
now complete.
5.
Name and save the BOM project file.
a. From the File menu, choose Save
As.
