Ethernet/ip settings – Rockwell Automation IASIMP Computer Numerical Control (CNC) Machining Accelerator Toolkit Quick Start User Manual
Page 64
64
Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012
Chapter 3
FANUC CNC Configuration
EtherNet/IP Settings
Configure the EtherNet/IP settings of the fast Ethernet board to allow the communication to the supervisory
PLC, and the connection to the Rockwell Automation AOP as detailed in
Chapter 4
.
The EtherNet/IP settings used throughout this quick start are the following CNC data table tags:
•
PLC to FANUC tags - R1000 – R1255
•
FANUC to PLC tags - R2000 – R2255
A detailed description of these addresses, and
the specific mapping between the PLC and
CNC can be found in the CMAT-IDS.xlsx file.
The path to this file is C:\Program Files\
RA_Simplification\CMAT\A-Files\
4-Controller Logic\02_CNC_Logic.
Refer to the FANUC EtherNet/IP
documentation listed in
of this chapter, if you would like to
change these locations.
1.

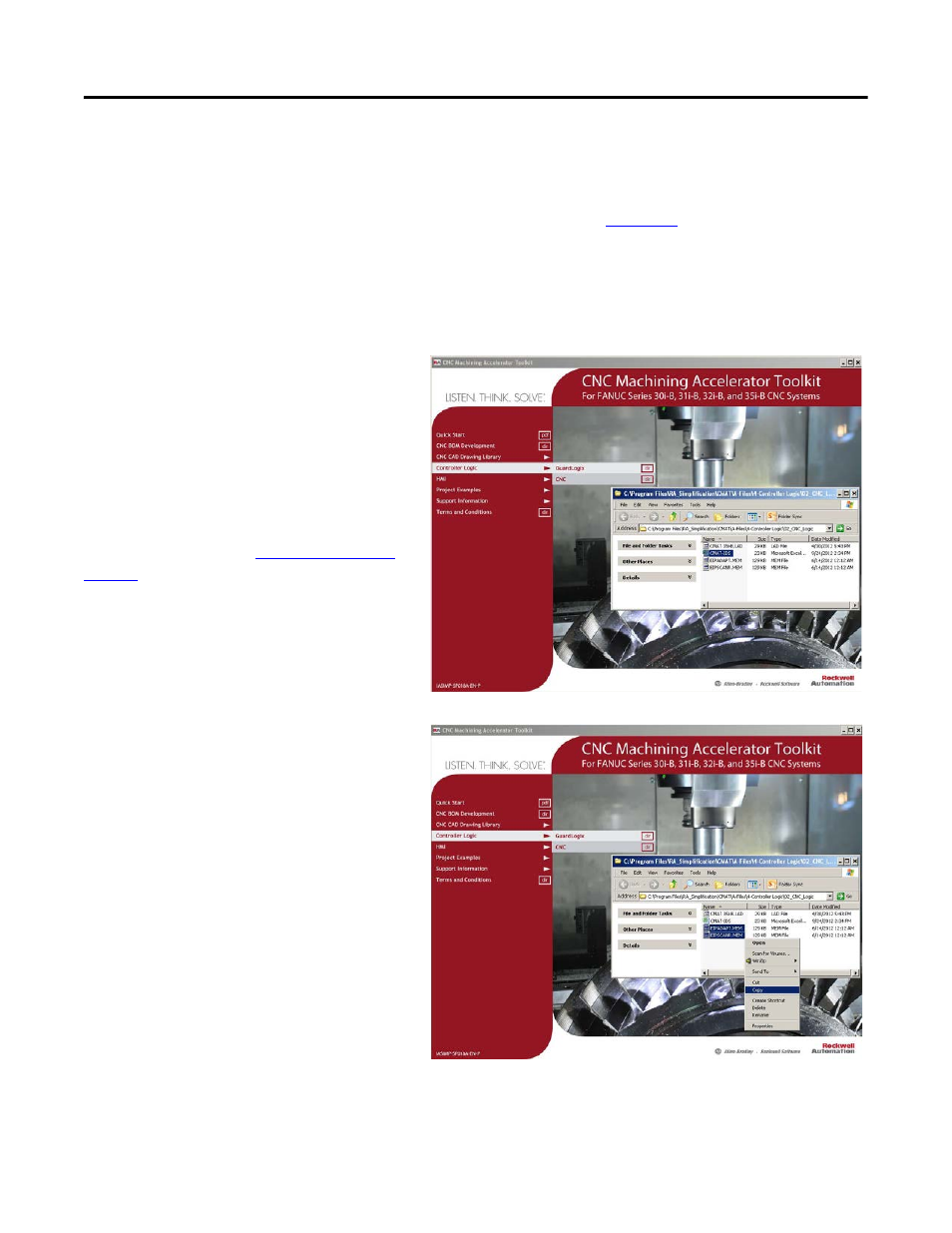

Use the CNC Machining Accelerator
Toolkit to navigate to the CNC Logic
folder and copy both EtherNet/IP
configuration files onto an external USB
device.
•
EIPADAPT.MEM
•
EIPSCANR.MEM
