Logic Module Customization

Appendix B

Module Fault Customization

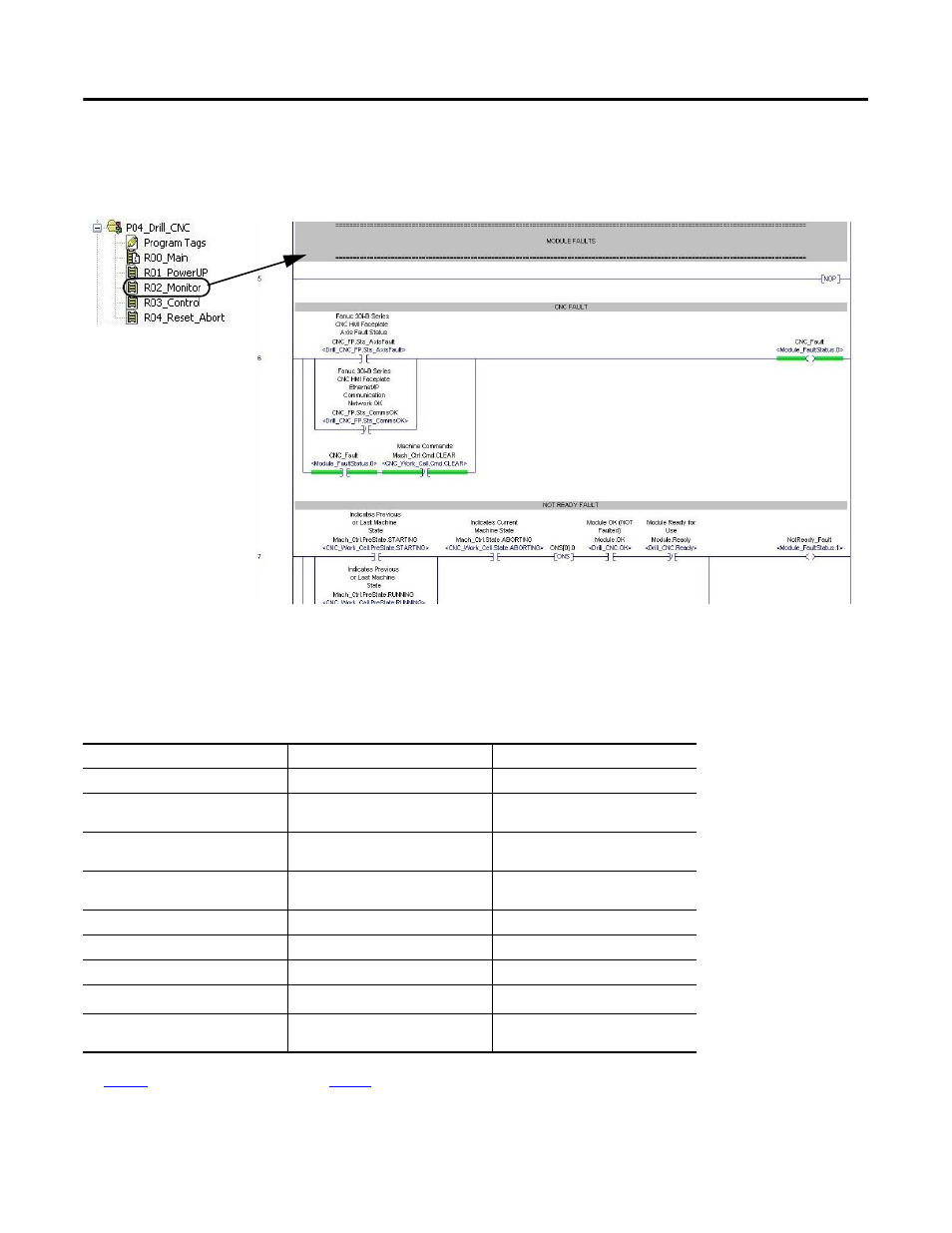

The application and device module R02_Monitor routines contain module fault logic.

Module faults are intended to act as a diagnostic tool to cover not only a drive or device fault, but also module
specific faults. You can add custom module fault logic to provide additional diagnostic information based on
your application. The default module specific faults are listed below.

Table 19 - Module Faults

Fault Description

Module Usage

Alarm History Fault Code

Drive Fault

Device Module

1

Not Ready

Application Module

Device Module

2

Failed to Clear

Application Module

Device Module

3

Failed to Reset

Application Module

Device Module

4

Failed to Start

Application Module

5

Failed to Stop

Application Module

6

Safety Fault

Device Module

7

User Alarm

Reserved

8…19

(1)

(1) Alarm History fault codes 8…19 are placeholders. You can use them to quickly add custom user-defined module faults. Refer to

Chapter 5

, FactoryTalk View ME Configuration, on

page 147

, for more information on the Alarm History faceplate and its function.

Instruction Error

Application Module

Device Module

20
