GuardLogix Configuration
Chapter 4
Set Visible Rows for Equipment Status Faceplate
If you plan to use the equipment status faceplate with your HMI application, follow these steps to set the
Inp_NumRowsVis tag value within the faceplate Add-On Instruction of the device you intend to place in the
first row.
1. Determine how many of the nine available rows you will use in the Equipment Status faceplate.
Refer to Chapter 5 beginning on page 147 for an overview of the faceplate so you can determine how many
status rows you require and what device you would like to place in the first row.
For the CNC Work Cell application example, four devices are included in the equipment status faceplate,
with the first one being the Drill CNC, placed in the first row:
• Drill CNC
• Machining CNC
• Gantry X Axis Drive
• Gantry Y Axis Drive

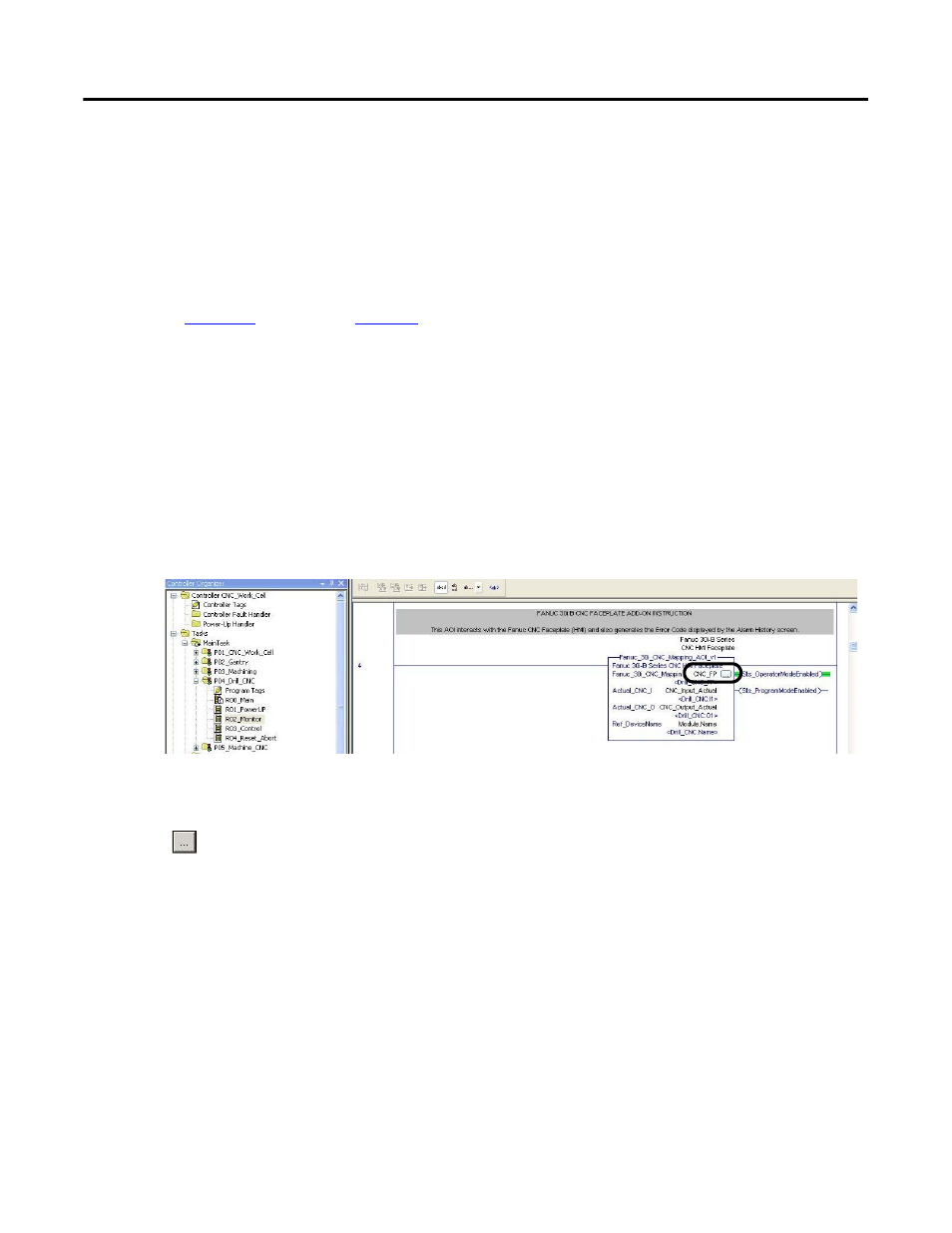

2. Open the R04_Monitor routine for the device in the first row of the equipment status faceplate and
navigate to the device specific faceplate Add-On Instruction.
For the CNC Work Cell application example, the R04_Monitor routine in the P04_Drill_CNC program
was opened.
3. Click (View Configuration dialog box) to open the Add-On Instruction properties.
