Machine Startup Faceplate
The machine startup faceplate display provides general machine status and control. It is also configured as the
main navigation display for access to the other devices, the alarm history faceplate display, and the equipment
status faceplate display.
Machine Status

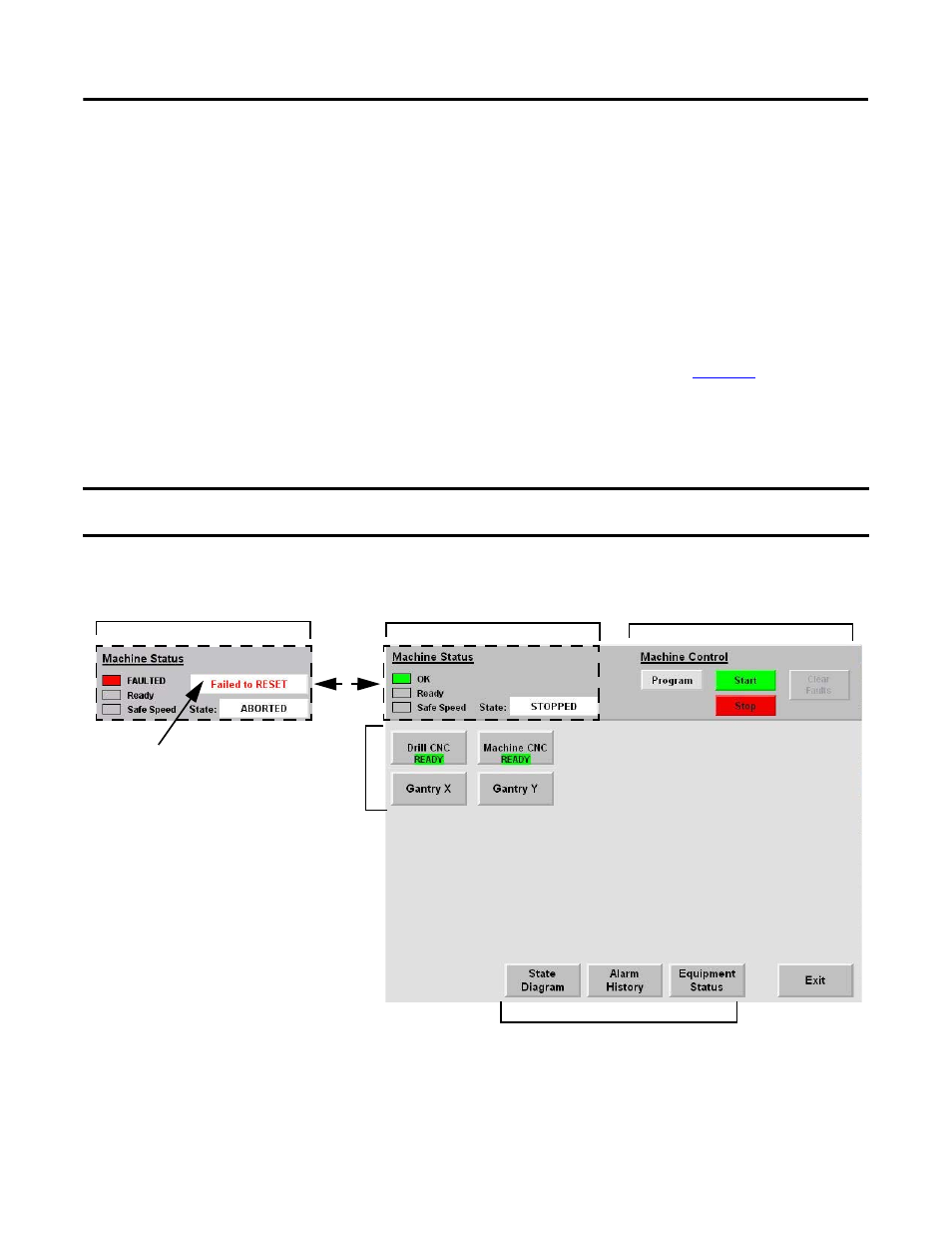

The Machine Status indicators (OK and FAULTED) provide general machine status (refer to the figure below).
The specific indicator functions are included in the Machine Status Indicators table on
page 218 .
In this example, there are five Goto display buttons configured. There is one Goto display button for each of the
two CNCs, the State Diagram, the Equipment Status display, and the Alarm History display. Pressing any of the
Goto display buttons launch the associated display.
IMPORTANT If the Machine Startup display is not visible or errors are reported on either the Logix controller or PanelView Plus
terminal, refer to previous chapters to check system wiring and configuration settings.
Drive Goto
Display Buttons
Machine Status Indicators
OK Status Machine Control Buttons
System Goto Display Buttons
Machine Status Indicators
Faulted Status
Abort Status
Indicator
Exit HMI
Application Button
