Add the me_equipment_parameter file – Rockwell Automation IASIMP Computer Numerical Control (CNC) Machining Accelerator Toolkit Quick Start User Manual
Page 187
Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012
187
FactoryTalk View ME Configuration
Chapter 5
Add the ME_Equipment_Parameter File

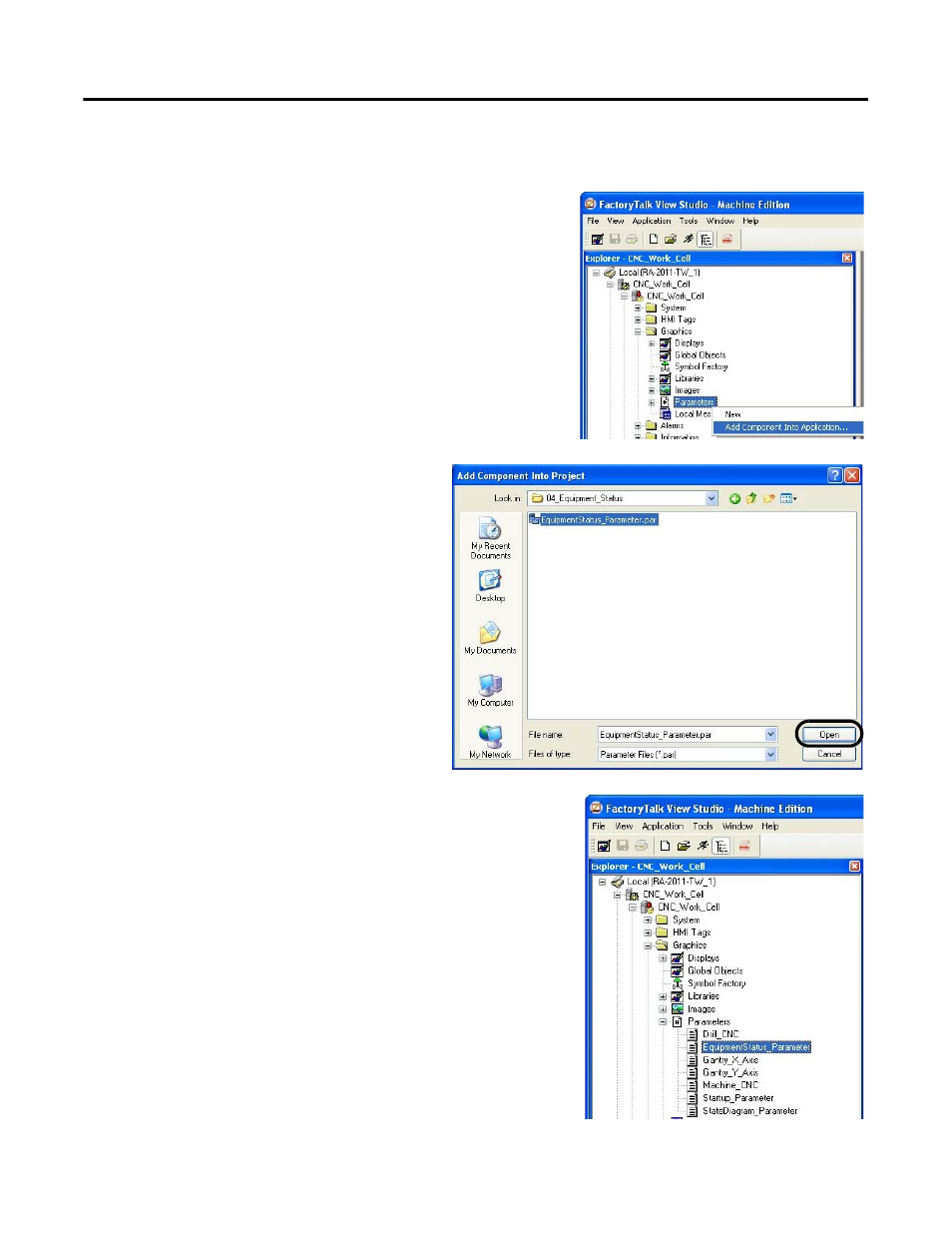

1.
Right-click Parameters within the Graphics folder and choose
Add Component Into Application.
2.
Navigate to the 04_Equipment_Status
folder within the toolkit’s files folder.
The file path is C:\Program Files\
RA_Simplification\CMAT\A-Files\
5-HMI\ME\HMI Modules\
04_Equipment_Status.
3.
Select the EquipmentStatus_Parameter.par
file.
4.
Click Open.
5.
Verify the MachiningStatus_Parameter file
appears under Parameters.
6.
Double-click MachiningStatus_Parameter to open the
parameter editor.
The MachiningStatus_Parameter dialog box opens.
