Chapter 1
Architecture and Hardware Selection

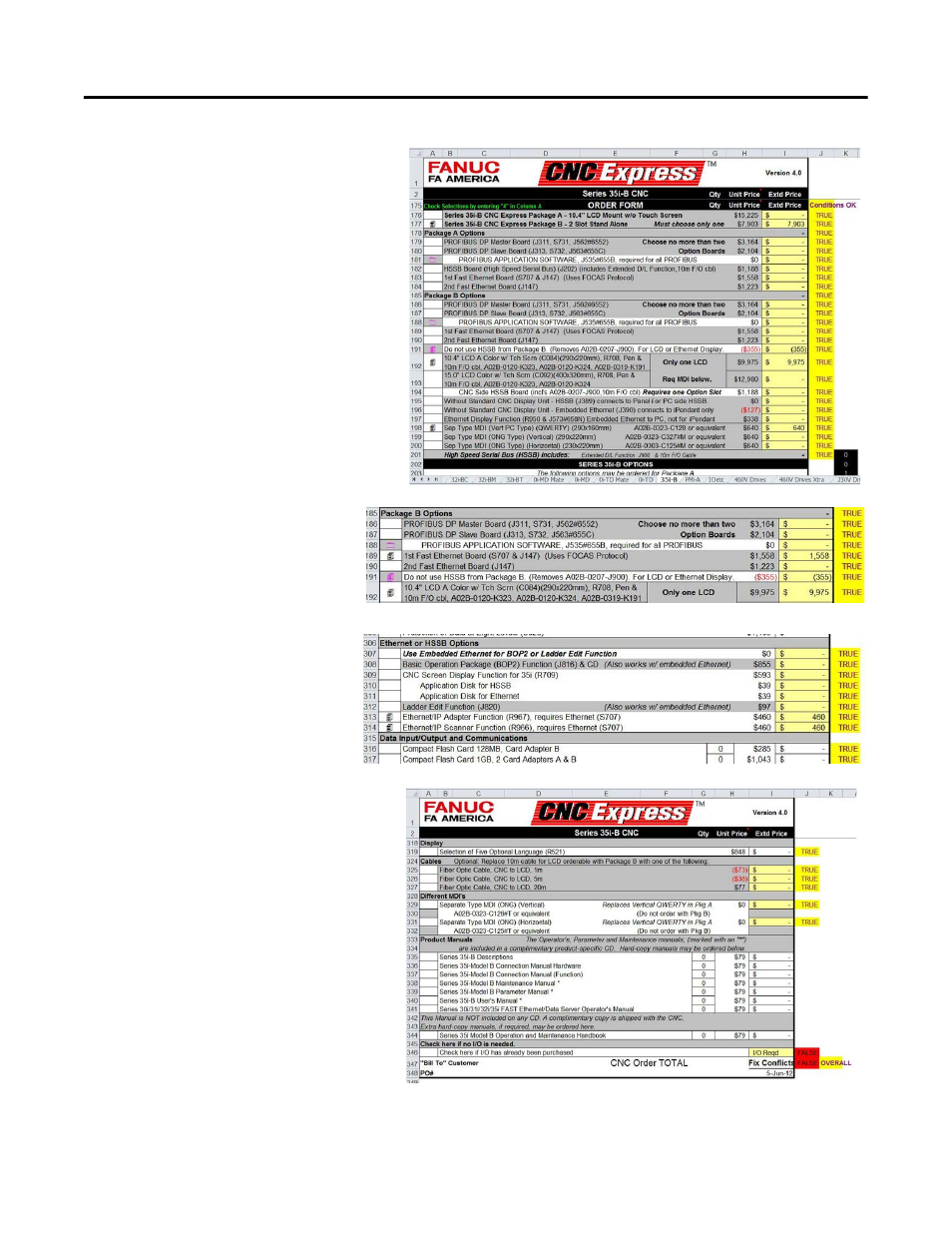

b. Use the cells in the spreadsheet to
navigate to and select the
appropriate CNC package, based
on your specific application
requirements.
The 35i-B selections are displayed.
c. Use the cells in the
spreadsheet to navigate to
and select the appropriate
EtherNet/IP options.
d. Use the cells in the spreadsheet to
navigate to and select the
appropriate displays and options.
When all options are selected the
cell at the bottom of the tab ( J347)
will display either a TRUE
OVERALL or FALSE
OVERALL status. Make the
appropriate corrections until the
status reads TRUE OVERALL.
The 35i-B configuration is now complete.
TIP The Status is FALSE until the I/O
selection has been satisfied in
the next step.
