Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012

123

GuardLogix Configuration

Chapter 4

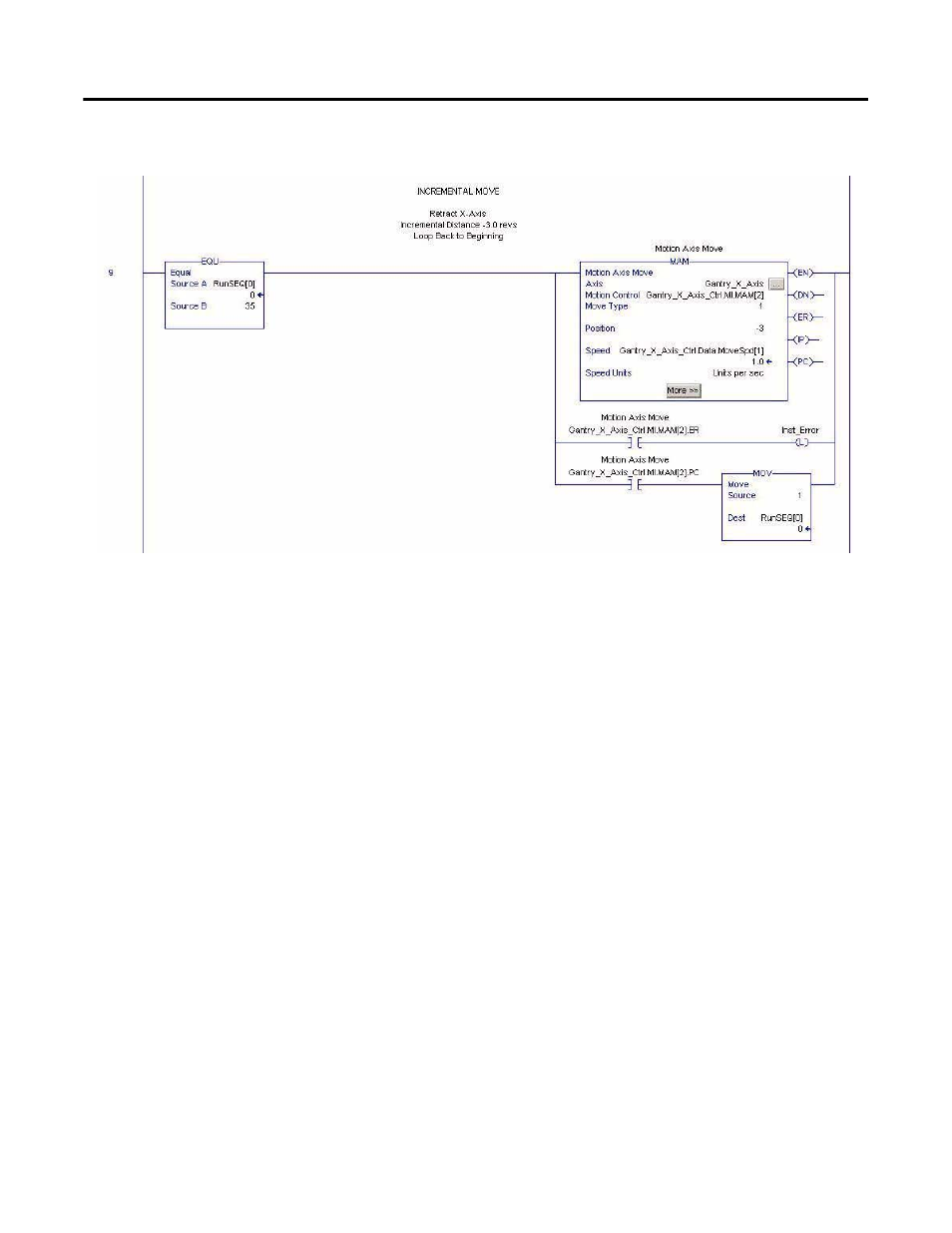

Figure 11 - Final Run Sequential Step Example

Much like the first run-step example rung, this CNC Work Cell final run step example also includes unlatch (U)
instruction, as well as a MOV instruction for assigning a simulation number, used for this example. The RunSeq
MOV instruction indexes to the next sequence step, a value of 1 this time, which will repeat the RunSeq steps. If
continuous operation is not required, the final step could end the run sequence, or remain at this step
indefinitely.
