GuardLogix Configuration

Chapter 4

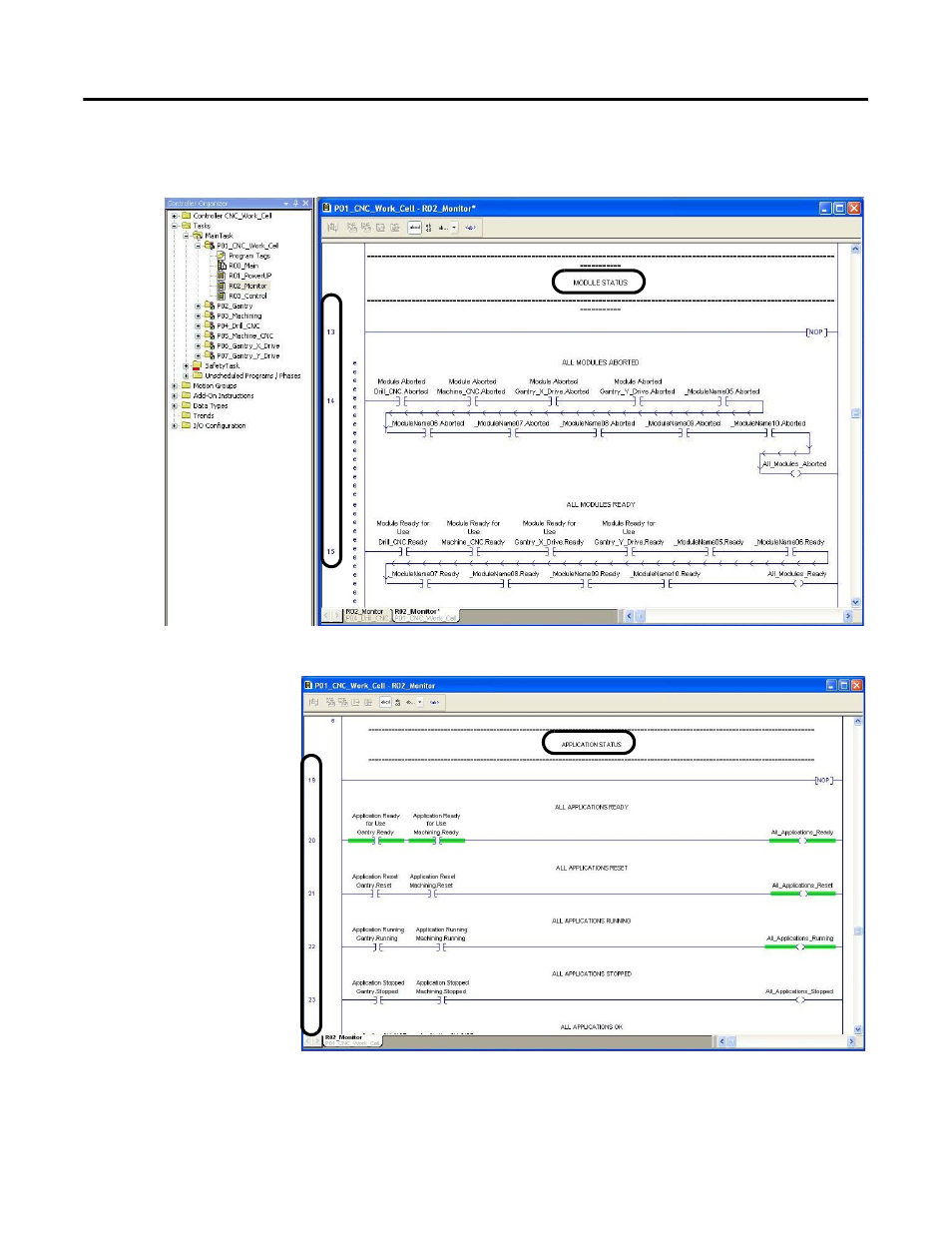

The imported module status rungs appear starting in rung 13 and the application status rungs appear
starting in rung 19 of the R02_Monitor routine of your machine program.
