Rockwell Automation IASIMP Computer Numerical Control (CNC) Machining Accelerator Toolkit Quick Start User Manual
Page 148
148
Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012
Chapter 5
FactoryTalk View ME Configuration

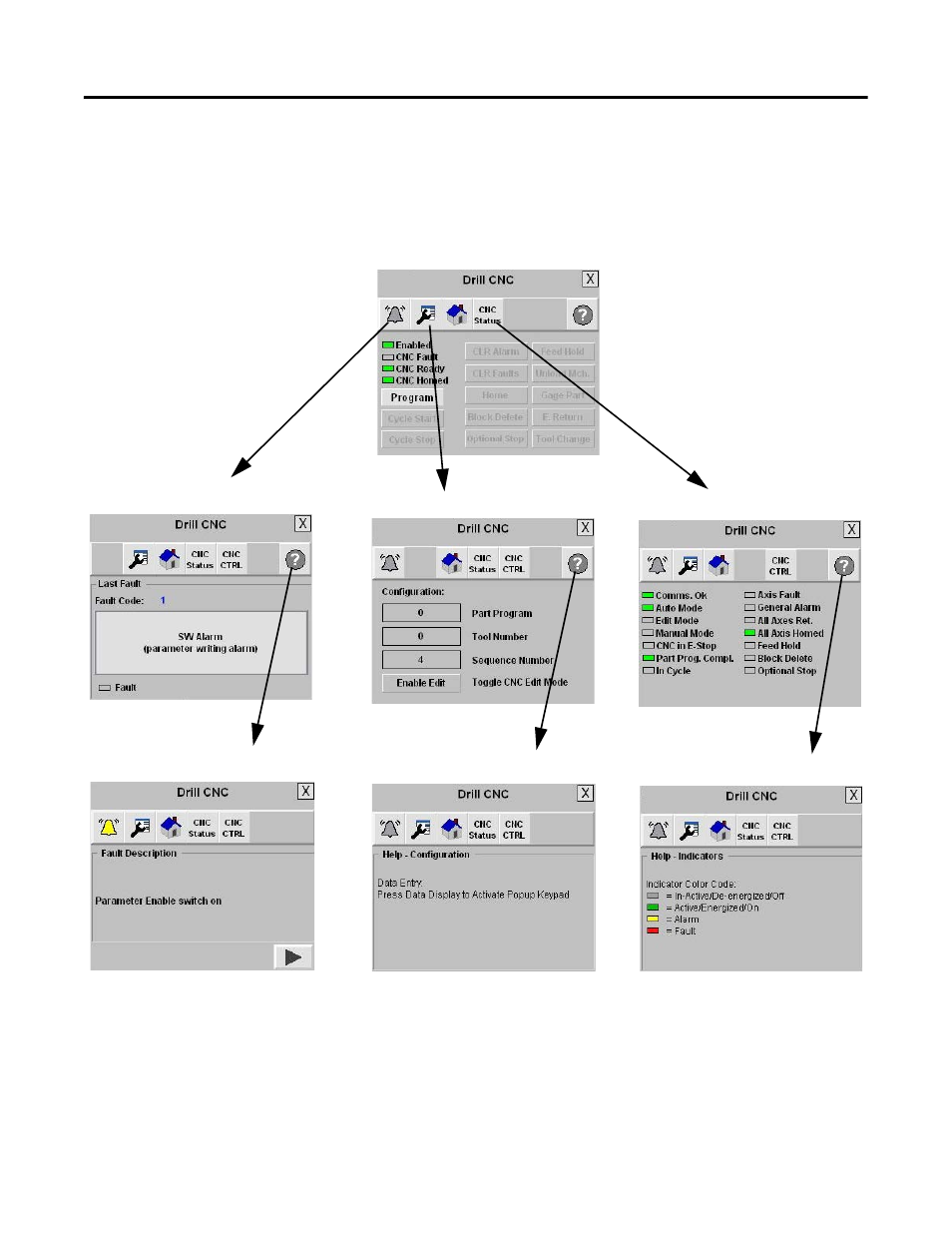

Figure 26 - Device Faceplate Display Example
• The device faceplates are complex displays that provide status, control, and fault diagnostic views for a specific device.
• The toolkit includes device faceplates for FANUC CNC devices.
• This example shows specific views for the FANUC CNC faceplate.
CNC Configuration View
CNC Status View
CNC Control View
CNC Fault View
CNC Status Help - Indicators
CNC Fault Help - Fault Action
CNC Configuration Help
